Summary of Contents for KinAn HD2302
- Page 1 2 Port HDMI / Audio KVM Switch User Manual www.kinankvm.com @All right reserved by Shenzhen Kinan Technology Co., Ltd. Date：2019/01 Version: V1.0...

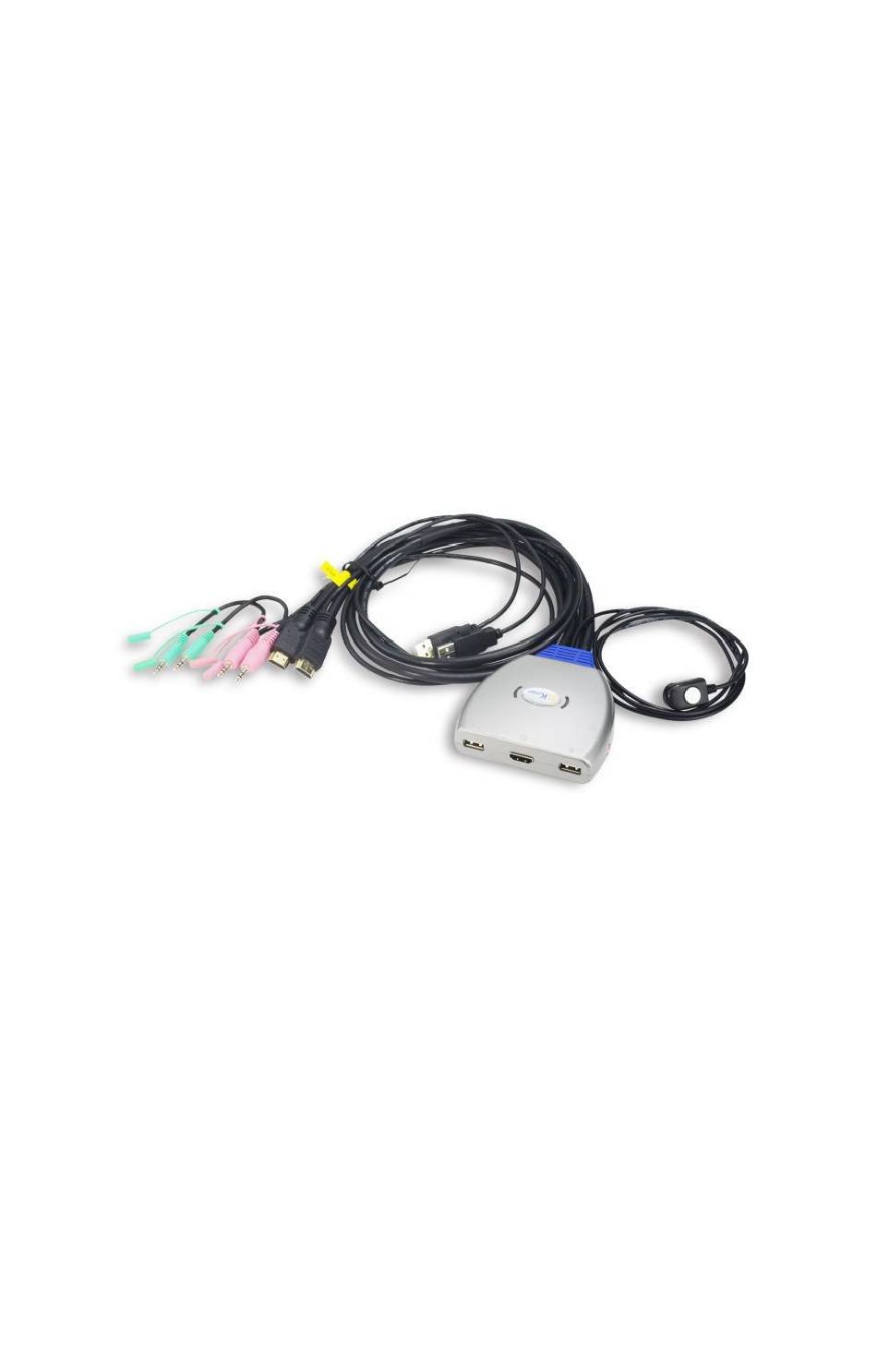

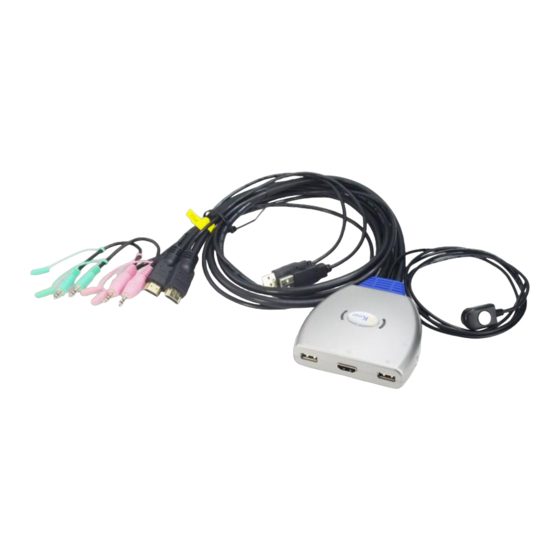

- Page 2 User Manual HD2302 Description HD2302 is a two port HDMI / Audio cable KVM switch which support 4K Video, users can put the main part under the desk, easily switch the computers via hotkey Scroll-Lock or remote port selector. Features ...
- Page 3 User Manual HD2302 Connection Diagram Make sure that the power to any device that you connect to the installation has been turned off. Make sure that all device you will be installing are property grounded HDMI Devices connected to ①: Monitor, projector HDMI Devices connected to ③: PC, server, laptop, DVD, STB, SP3...
- Page 4 User Manual HD2302 Hotkey Press Scroll-Lock twice in two seconds, the keyboard will exit the hotkey mode if you do not press any hotkey within 2 seconds. Hotkey commands as below: Function Operation Instruction Scroll-Lock + Switch between port 1~2 Press...
- Page 5 User Manual HD2302 Specification Model HD2302 Computer Connections Port Selection Hotkey, Remote Port Selector Monitor 1x HDMI Type A Keyboard, 2x USB type A Mouse Console Microphone 1x Min stereo port ( pink) Speaker 1x Min stereo port ( green)
