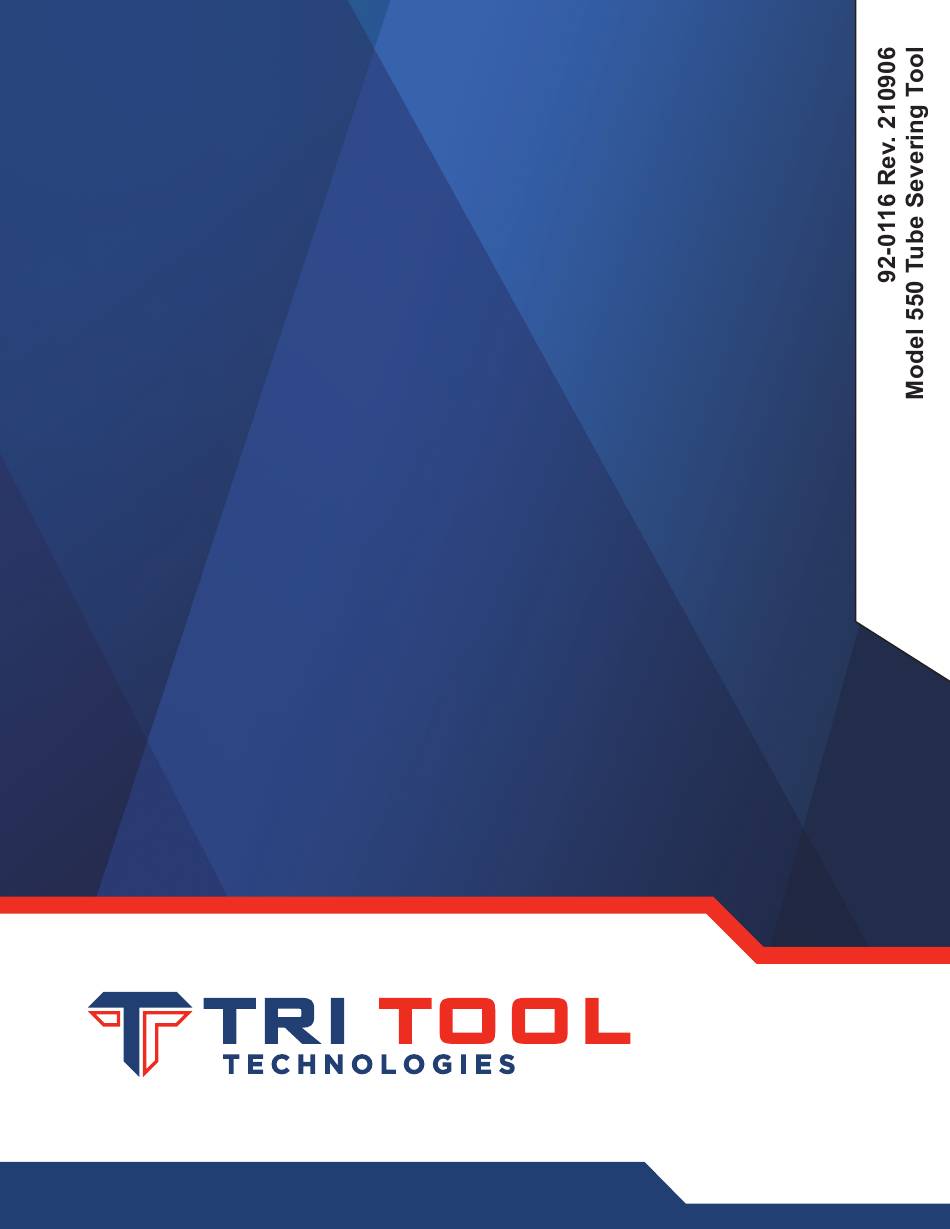

  • Page 1 Operation Manual...
  • Page 2 ABOUT TRI TOOL TECHNOLOGIES At Tri Tool, we are committed to your success through relentless innovation and powerful partnership. We insist on developing tools and equipment that exceed your expectations of performance, precision, safety, and durability. As a full-service engineering firm, we are here to support you every step of the way.

  • Page 3: Table Of Contents

    Table of Contents Warranty ........... 4 About the Manual.

  • Page 4: Warranty

    TRI TOOL INC. TRI TOOL INC. Warranty LIMITED WARRANTY: All products manufactured by Seller are warranted to be free from defects in materials and workmanship under normal use. The period of this warranty shall be three years from the date of shipment for all products, except for welding and Non- Standard Products which shall be one year from the date of shipment.
  • Page 5 Model 550 Tube Severing Tool Buyer’s notice of a defective Goods must identify the specific Goods affected, and the nature of the defect. It is required when returning the defective Goods, that it is suitably packed, fully insured, and transportation and insurance prepaid in accordance with instructions issued by Seller.

  • Page 6: About The Manual

    The instructions and descriptions in this manual were accurate when the manual was written. However, the information in the manual is subject to change without notice. Check for updated information before you start any job. The Tri Tool Inc. web site has the most current information.
  • Page 7 Model 550 Tube Severing Tool SAFETY GLASSES: Indicates a hazardous situation that requires the use of safety glasses. GLASSES HOT SURFACE: Indicates a hazardous situation that hot surfaces may be present. HOT SURFACE GLOVES: Indicates a hazardous situation that requires glasses.

  • Page 8: Safety Precautions

    TRI TOOL INC. 2. SAFETY PRECAUTIONS In General Use standard safety equipment such as: hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices when appropriate. Operate this tool only in accordance with specific operating instructions. WARNING: Do not override the dead-man switch on the power unit. Locking down, obstructing, or in any way defeating the dead-man switch on the power drive unit may result in serious injury.
  • Page 9 Before you start operating the equipment, do no-load tests and feed function checks. Tool Use Use the right tool and tool bit for the job. Contact Tri Tool to help with your application. Keep the tool bits fully engaged in the tool bit holders. Loose bits are sharp and can cause cuts or punctures.

  • Page 10: General Description

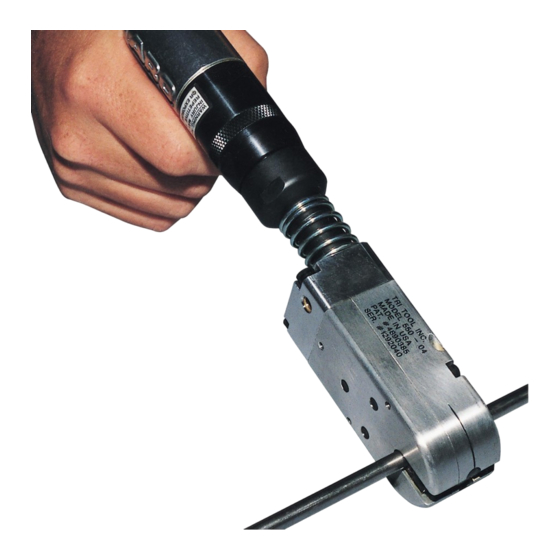

    TRI TOOL INC. 3. GENERAL DESCRIPTION The Model 550 Tube Severing Tool series of tube cutters is designed to cut tubing in areas where access to and around the tube is limited. The Model 550 uses a cutter wheel to sever the tube. Normal operation does not produce chips.

  • Page 11: Specifications

    Model 550 Tube Severing Tool 4. SPECIFICATIONS Center of the cut .75" (19.1mm) 6.70" (107.2mm) Head can be positioned to every 120 when needed 1.31" (33.3mm) (Air Drive Width) Figure 1: Model 550-00, Tube Severing Tool 92-0116 Rev. 210906...
  • Page 12 TRI TOOL INC. Model 550-00, Tube Severing Tool Model Tube “A” “B” “C” Weight Size 3/16" 3.67" 1.50" 1.25" .75 lb 550-03 01-1062 (4.8 mm) (93.2 mm) (38.8 mm) (31.8 mm) (.34 kg) 1/4" 3.67" 1.50" 1.25" .75 lb 550-04 01-1063 (6.4 mm)

  • Page 13: Maintenance

    Model 550 Tube Severing Tool 5. MAINTENANCE Periodically clean and coat all components with a light film of oil. Use a clean, non-detergent oil, preferably SAE 10 (90 SSU or lighter.) Replace the Cutting Wheel if it is worn or damaged. The Cutting Wheel life depends upon the tube material, wall thickness, and operator’s experience.

  • Page 14: Operation

    DANGER: Do not override the deadman switch on the power unit. Locking down, obstructing, or defeating the deadman switch on the power drive unit may result in serious injury. DANGER Model 550 Maximum Wall Cutting Capacity Stainless Model Tube Aluminum...
  • Page 15 Make sure Bearing Plugs are clean and are not damaged. Damaged Bearing Plugs affect the performance of the tool and should be changed. Select the Tri Tool Inc. Drive Unit that best suits the operation. The use of a non Tri Tool Inc. Drive Unit will void the warranty.
  • Page 16 6. Load the Model 550 around the tube to be cut. 7. Apply a light force to make sure that the Model 550 is over the tube. 8. Hold the Model 550 perpendicular to the surface of the tube to be cut.

  • Page 17: Reparis And Replacement

    Model 550 Tube Severing Tool 7. REPAIRS AND REPLACEMENT WARNING: Disconnect the Drive Unit from the Model 550 Tube Cutter before you do any repairs or replacements. This will decrease the risk of personal injury or equipment damage. WARNING Replacement of the Cutter Wheel 1.
  • Page 18 TRI TOOL INC. Replacement of the Bearing Plugs 1. Rotate the Cutter Carriage Assy until the worn Bearing Plug is seen. 2. Press out the worn Bearing Plug. 3. Press in the new Bearing Plug. Bearing PLug Figure 4: Replacement of the Bearing Plug...

  • Page 19: Air Drive Assembly

    8. AIR DRIVE ASSEMBLY Removal of a Sheared Roll Pin From the Drive Assy 1. Push the Air Drive Assy into the Model 550 Tube Cutter. 2. Rotate it clockwise and pull it out. 3. Unscrew the Bayonet Mounting Tube from the Motor Housing by rotating the Bayonet Mounting Tube counterclockwise.

  • Page 20: Troubleshooting

    TRI TOOL INC. 9. TROUBLESHOOTING Problem: Tool Bit Chatters The tool bit is loose or overextended. The tool bit is damaged. The tool holder is too loose in the slides. The cutting speed is too fast. The clamping pads are loose on the pipe or tube.
  • Page 21 Model 550 Tube Severing Tool Problem: Loss of Air Power The air supply pressure is too low. The air filter is plugged. The air line size is insufficient. The air line is too long. Problem: Loss of Hydraulic Power The hydraulic supply pressure is too low.

  • Page 22: Accessories

    Ÿ Drive Assembly, Air (P/N 04-0084) Ÿ Shaft Assembly, 18” Flexible (P/N 14-0036) Ÿ Motor Assembly, Cordless, 18V (P/N 58-0347) A Filter/Regulator/Lubricator (FRL) is required to protect the warranty on all TRI TOOL INC air driven tools. 92-0116 Rev. 210906...

  • Page 23: Illustrated Parts Breakdown

    Model 550 Tube Severing Tool 11. ILLUSTRATED PARTS BREAKDOWN MODEL 550-03, 04, 05, AND 06 TUBE SEVERING TOOL ASSEMBLY (P/N 01-XXXX) 92-0116 Rev. 210906...
  • Page 24 TRI TOOL INC. Parts List, Model 550-03, Tube Cutter (P/N 01-1062) Item Part Description 02-2057 CARRIAGE ASSEMBLY, CUTTER 19-0353 HOUSING, CARRIAGE, TUBE CUTTER 32-0003 PIN, ROLL, 1/16" DIA X 1/2" 32-0179 PIN, DOWEL, 3/16" DIA X 5/8" 32-0226 PIN, DOWEL, 3/16" DIA X 1" LONG...
  • Page 25 Model 550 Tube Severing Tool Parts List, Model 550-04, Tube Cutter (P/N 01-1063) Item Part Description 02-2058 CARRIAGE ASSEMBLY, CUTTER 19-0354 HOUSING, CARRIAGE, TUBE CUTTER 32-0003 PIN, ROLL, 1/16" DIA X 1/2" 32-0179 PIN, DOWEL, 3/16" DIA X 5/8" 32-0226 PIN, DOWEL, 3/16"...
  • Page 26 TRI TOOL INC. Parts List, Model 550-05, Tube Cutter (P/N 01-1064) Item Part Description 02-2059 CARRIAGE ASSEMBLY, CUTTER 19-0356 HOUSING, CARRIAGE, TUBE CUTTER 32-0003 PIN, ROLL, 1/16" DIA X 1/2" 32-0179 PIN, DOWEL, 3/16" DIA X 5/8" 32-0226 PIN, DOWEL, 3/16" DIA X 1" LONG...
  • Page 27 Model 550 Tube Severing Tool Parts List, Model 550-06, Tube Cutter (P/N 01-1009) Item Part Description 02-2060 CARRIAGE ASSEMBLY, CUTTER 19-0352 HOUSING, CARRIAGE, TUBE CUTTER 32-0003 PIN, ROLL, 1/16" DIA X 1/2" 32-0179 PIN, DOWEL, 3/16" DIA X 5/8" 32-0226 PIN, DOWEL, 3/16"...
  • Page 28 TRI TOOL INC. MODEL 550-08 TUBE SEVERING TOOL ASSY (P/N 01-1065) 92-0116 Rev. 210906...
  • Page 29 Model 550 Tube Severing Tool Parts List, Model 550-08, Tube Cutter (P/N 01-1065) Item Part Description 02-2061 CARRIAGE ASSEMBLY, CUTTER 19-0348 HOUSING, TUBE CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0140 PIN, DOWEL, 1/4"...
  • Page 30 TRI TOOL INC. MODEL 550-10, 12, 14 AND 16 TUBE SEVERING TOOL ASSEMBLY (P/N 01-10XX) 92-0116 Rev. 210906...
  • Page 31 Model 550 Tube Severing Tool Parts List, Model 550-10, Tube Cutter (P/N 01-1066) Item Part Description 02-2062 CARRIAGE ASSEMBLY, CUTTER 19-0347 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 32 TRI TOOL INC. Parts List, Model 550-12, Tube Cutter (P/N 01-1067) Item Part Description 02-2063 CARRIAGE ASSEMBLY, CUTTER 19-0346 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 33 Model 550 Tube Severing Tool Parts List, Model 550-14, Tube Cutter (P/N 01-1075) Item Part Description 02-2064 CARRIAGE ASSEMBLY, CUTTER 19-0357 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 34 TRI TOOL INC. Parts List, Model 550-16, Tube Cutter (P/N 01-1068) Item Part Description 02-2065 CARRIAGE ASSEMBLY, CUTTER 19-0366 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 35 Model 550 Tube Severing Tool MODEL 550-18, 20, 24 AND 28 TUBE SEVERING TOOL ASSEMBLY 92-0116 Rev. 210906...
  • Page 36 TRI TOOL INC. Parts List, Model 550-18, Tube Cutter (P/N 01-1069) Item Part Description 02-2066 CARRIAGE ASSEMBLY, CUTTER 19-0359 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 37 Model 550 Tube Severing Tool Parts List, Model 550-20, Tube Cutter (P/N 01-1070) Item Part Description 02-2067 CARRIAGE ASSEMBLY, CUTTER 19-0361 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 38 TRI TOOL INC. Parts List, Model 550-24, Tube Cutter (P/N 01-1071) Item Part Description 02-2068 CARRIAGE ASSEMBLY, CUTTER 19-0360 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 39 Model 550 Tube Severing Tool Parts List, Model 550-28, Tube Cutter (P/N 01-1072) Item Part Description 02-2069 CARRIAGE ASSEMBLY, CUTTER 19-0362 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 40 TRI TOOL INC. MODEL 550-32 TUBE SEVERING TOOL (P/N 01-1073) 92-0116 Rev. 210906...
  • Page 41 Model 550 Tube Severing Tool Parts List, Model 550-32, Tube Cutter (P/N 01-1073) Item Part Description 02-2070 CARRIAGE ASSEMBLY, CUTTER 19-0363 HOUSING, CUTTER 32-0019 PIN, ROLL, 3/32" DIA X 7/8" 32-0114 PIN, DOWEL, 1/4" DIA X 1 1/4" 32-0248 PIN, WHEEL SECURING...
  • Page 42 TRI TOOL INC. TUBE CUTTER DRIVE ASSEMBLY (P/N 04-0084) 92-0116 Rev. 210906...
  • Page 43 Model 550 Tube Severing Tool Parts List, Drive Assembly, Tube Cutter (P/N 04-0084) Item Part Description 20-0281 SHAFT, DRIVE 22-0073 TUBE, BAYONET MOUNTING 32-0024 PIN, ROLL, 1/8" DIA X 1/2" 40-0143 SPRING, COMPRESSION 54-0127 COUPLING, MALE QD TO 1/4 EPIPE 57-0123 MOTOR, AIR.
  • Page 44 TRI TOOL INC. MOTOR ASSEMBLY, CORDLESS, 18V (550) (P/N 58-0347) Parts List, Motor Assembly, Cordless, 18V (550) (P/N 58-0347) Item Part Description 20-1451 SHAFT, DRIVE 27-1569 ADAPTER, BAYONET 30-6142 BATTERY, METABO,18V 5.2AH 33-0040 SCREW, CAP, 1/4-20 X 3/4" 40-0143 SPRING, COMPRESSION...
  • Page 45 Model 550 Tube Severing Tool Parts List, A10 Tool Kit (NOT SHOWN) Item Part Description 01-1062 MODEL 550-03, TUBE CUTTER 01-1063 MODEL 550-04, TUBE CUTTER 01-1064 MODEL 550-05, TUBE CUTTER 01-1009 MODEL 550-06, TUBE CUTTER 01-1065 MODEL 550-08, TUBE CUTTER...
  • Page 46 TRI TOOL INC. Parts List, B1 Tool Kit (NOT SHOWN) Item Part Description 01-1062 MODEL 550-03, TUBE CUTTER 01-1063 MODEL 550-04, TUBE CUTTER 01-1064 MODEL 550-05, TUBE CUTTER 01-1009 MODEL 550-06, TUBE CUTTER 01-1065 MODEL 550-08, TUBE CUTTER 01-1066 MODEL 550-10, TUBE CUTTER...

  • Page 47: Metabo Safety Instructions

    Model 550 Tube Severing Tool 12. METABO SAFETY INSTRUCTIONS Refer to the Instruction Manual that came with the Metabo Cordless Drill/Driver for operation instructions and safety procedures. 92-0116 Rev. 210906...
  • Page 48 WARNING Read the manual and be familiar with all safety precautions before operating equipment. The following are general warnings for industrial equipment with moving parts. Refer to EYE HAZARD - Always wear appropriate eye protection while operating the equipment. PINCH HAZARD - Keep your hands and clothing away from moving parts.
