88 5530 08
Naples
Media Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

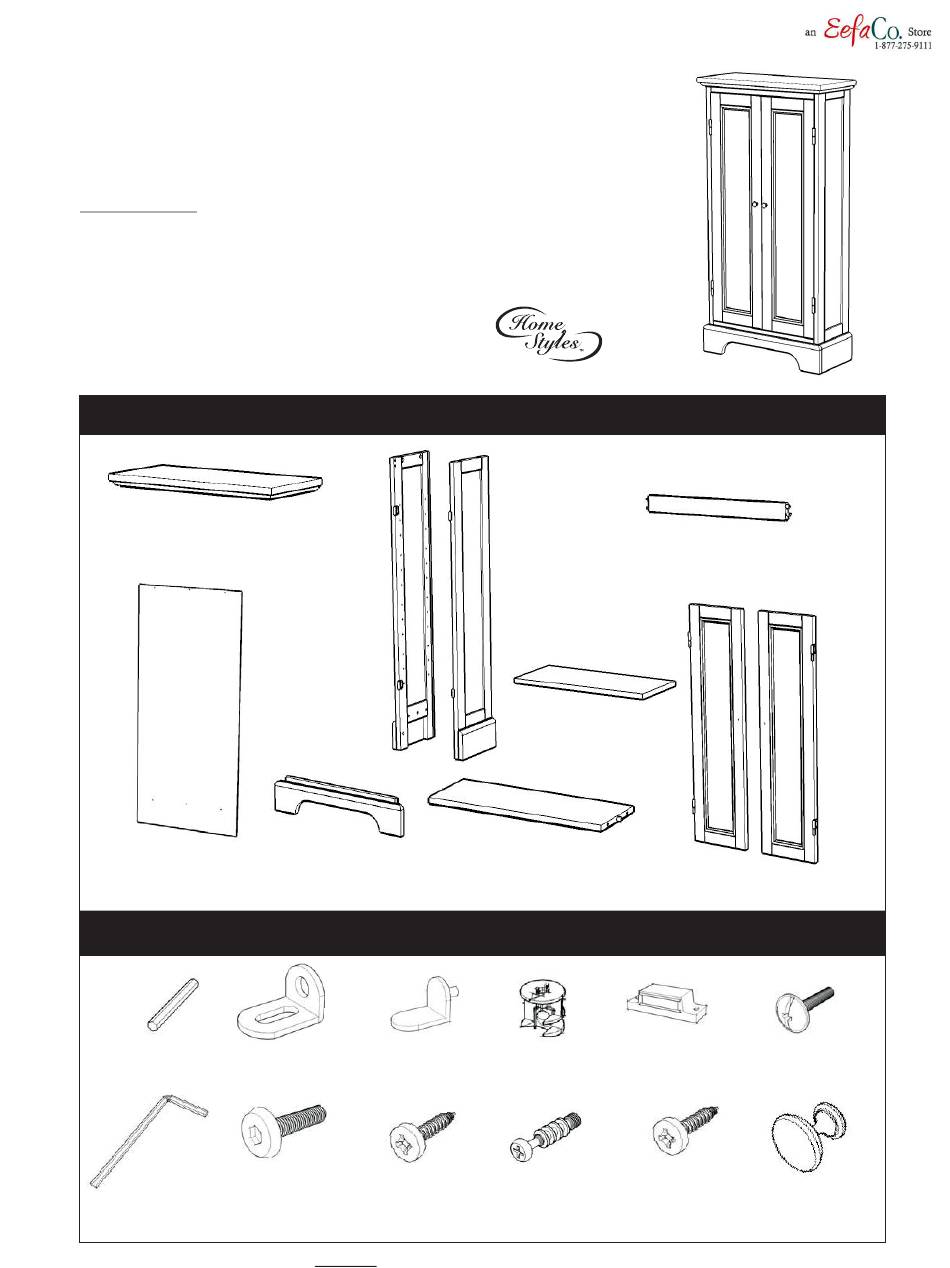

Part List
A.
Top
1 pc.
E.
Back Panel
1 pc.
Hardware List
Small
Steel Plate
Hex Wrench
2 pcs.
1 pc.
Head Cap Bolt
Hex Wrench
4 pcs.(+1 extra)
1 pc.
Tools required for assembly : Phillips screwdriver
Casual Attire For Today's Home
B.
Side Panel
1 pc.
F.
G.
Plinth
Base
1 pc.
1 pc.
Adjustable Pin
16 pcs. (+2 extra)
Wood Screw
for Back Panel
6 pcs.(+1 extra)
C.
Side Panel
1 pc.
H.
Shelf
4 pcs.
I.
Door
1 pc.
Magnet
Cam Lock
4 pcs.
10 pcs.(+1 extra)
Cam Lock Screw
Wood Screw
10 pcs.(+1 extra)
for Megnet
8 pcs. (+1 extra)
D.
Front Rail
1 pc.
J.
Door
1 pc.
Machine Screw
2 pcs.
Door
Pull Handle
2 pcs.
Advertisement
Table of Contents
Related Manuals for Home Styles Naples 88 5530 08
Summary of Contents for Home Styles Naples 88 5530 08
- Page 1 88 5530 08 Naples Media Cabinet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 2 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. Wood Screw Magnet STEP 1 Attach 2X Magnets to Front Rail (D) with Wood Screws. Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B), (C) and Plinth...
- Page 3 Assembly Instructions 3/4 Cam Lock Figure 1 STEP 2 Attach Front Rail (D), Base (G) and Plinth (F) to Side Panel (B) with Cam Locks (see Figure 1). Attach Side Panel (C) to the unit with Cam Locks. Head Cap Bolt STEP 3 Attach the Steel Plate connecter to the unit at the pre-drilled holes, then tighten the Head Cap Bolts.
- Page 4 Assembly Instructions 4/4 Cam Lock Figure 3 Figure 2 Adjustable Pin Figure 4 Figure 5 STEP 4 Place Top (A) onto the unit, using Cam Locks. Attach Doors (I) and (J) by sliding the door lift hinges into the side panel lift hinges. (See figure 2) Magnet Assemble Pull Handles to Doors (I) and (J)
