88 5530 07

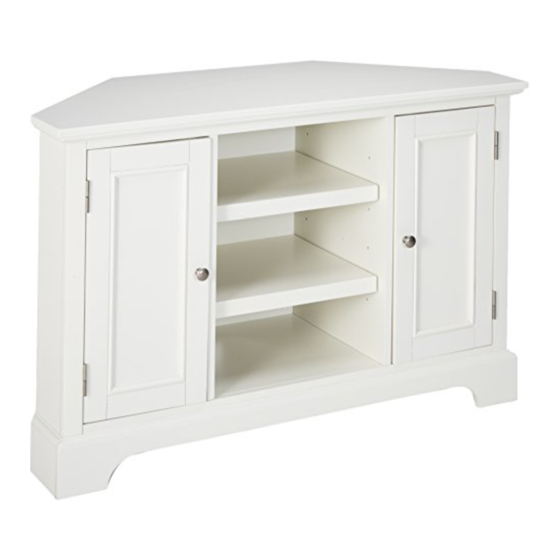

Naples
Corner Entertainment
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
E.
Front Rail
1 pc.
G.
Back Panel
1 pc
H.
Back Panel
1 pc
Hardware List
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Side Panel
1 pc
.
F.
Base
1 pc
.
I.
Back Panel
1 pc
.
.
.
L.
Shelf
2 pcs.
Cam Lock Screw
31 pcs.(+2 extra)
Cam Lock
31 pcs.(+6 extra)
C.
Side Panel
Middle Panel
1 pc.
J.
Back Panel
1 pc
.
M.
N.
Shelf
Door
4 pcs.
1 pc.
Wood Screw
for Base and
Back Panel
13 pcs.(+1 extra)
Flat Washer
for Wood Screw
13 pcs. (+1 extra )
D1.
D2.
Middle Panel
1 pc
.
1 pc
K.
Plinth
1 pc.
Machine Screw
2 pcs.
Pull Handle
Adjustable Pin
2 pcs.
24 pcs.(+1 extra)
.
O.
Door
1 pc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Naples Corner Entertainment
Summary of Contents for Home Styles Naples Corner Entertainment
- Page 1 Hex Wrench Pull Handle Cam Lock for Wood Screw Adjustable Pin 1 pc. 2 pcs. 31 pcs.(+6 extra) 13 pcs. (+1 extra ) 24 pcs.(+1 extra) Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/4 IMPORTANT Do not tighten screws until each part is properly assembled. Cam Lock Screw STEP 1 Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C), Back Panel (I) and (J), Plinth (K), then tighten.
- Page 3 Assembly Instructions 3/4 STEP 2 Attach Middle Panels (D1) and (D2) to Base (F) using Flat Washers and Wood Screws. Flat Washer Wood Screw Figure 1 STEP 3 Attach Plinth (K) to Base (F) with Cam Locks. Attach Back Panels (I) and (J) to unit with Cam Locks. Attach Side Panels (B), Front Rail (E) and Side Panel (C) to unit with Cam Locks.
- Page 4 Assembly Instructions 4/4 STEP 4 Attach Back Panel (G) and (H) to the unit with Flat Washers and Wood Screws. Flat Washer Wood Screw Adjustable Pin Figure 2 Adjustable Figure 3 Figure 4 STEP 5 Place Top (A) onto unit with Cam Locks.
