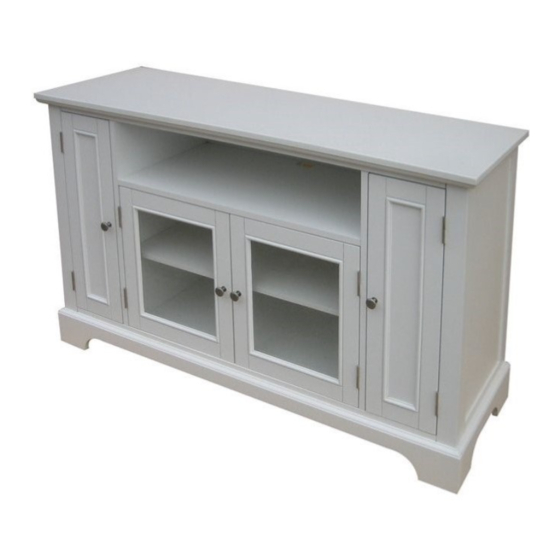

Entertainment credenza (white finish)

Advertisement

88 5530 101
Naples
Entertainment Credenza
(White Finish)
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

Part List

A.
Top
1 pc.
H.
Plinth
1 pc.
I.
Base
1 pc.
R.
Back Support
1 pc.

Hardware List

Cam Lock Screw
28 pcs.(+1 extra)
Cam Lock
28 pcs.(+1 extra)
For assembly see instructions in carton 88 5530 102
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Magnet
4 pcs.
Wood Screw
for Magnet
8 pcs.(+1 extra)
servicedesk@homestyles-furniture.com
Casual Attire For Today's Home
J.
Back Panel
1 pc.
K.
Back Panel
2 pcs.
Adjustable Pin
20 pcs.(+1 extra)
Wood Screw
for Back Panel
12 pcs.(+1 extra)
Pull Handle
4 pcs.
Machine Screw
4 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Naples 88 5530 101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Naples 88 5530 101

  • Page 1 Magnet for Back Panel 28 pcs.(+1 extra) 4 pcs. 8 pcs.(+1 extra) 12 pcs.(+1 extra) For assembly see instructions in carton 88 5530 102 Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
  • Page 2 Wood Screw for Back Panels Back Panel (K) Adjustable Pin 21 pcs. 1 pc. Back Support (R) Pull Handle 4 pcs. Machine Screw 4 pcs. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
  • Page 3 Assembly Instructions 2/4 Cam Lock Screw STEP 1 Wood Screw Magnet Attach 2X Magnets to Top (A) by using Wood Screws in the pre-drilled holes (See figure 1). Insert Cam Lock Screws into the pre-drilled holes of Top (A). (Figure 1) STEP 2 Insert Cam Lock Screws into the pre-drilled holes...
  • Page 4 Assembly Instructions 3/4 Cam Lock Cam Lock Screws STEP 4 Attach Base (I) to the unit with Cam Locks. Put 3X Cam Lock Screws into the pre-drelled holes of Base (I) as shown, then attach Back Support (R) to Base (I) with Cam Locks and attach Side Panel (B) and (C), Plinth (H) to the unit with Cam Locks.
  • Page 5 Assembly Instructions 4/4 (Figure 4) (Figure 5) STEP 6 Attach Doors (N), (O), (P) and (Q) by sliding the door lift hinges into the side panels lift hinges. (See figure 4) Assemble Pull Handles to Doors with Machine Screws. (See figure 5) (Figure 6) STEP 7 Insert 12X Wood Screws from the back of the unit,...
