Replacing the guide plate

Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Diverter SH 1500
Maintenance and repair
Requirement:
The module is shut down.
R
4 Remove the ball module conveyor, see "Replacing the ball module conveyor", page 56.
4 Remove the side covers, see "Removing/installing the side plates", page 51.
4 Take the idler pulley at the front and rear out of the side frames: Unscrew screws (1) on the
right and left in the side frames (2) and take the idler pulley (3) out to the side.
4 Properly dispose of the old idler pulley.
4 Place new idler pulley (3) between the side frames (2) and fasten with screw (1) on the right
and left at the side frames from the outside.
4 Reattach side covers and ball module conveyor in reverse order.
1
2
3

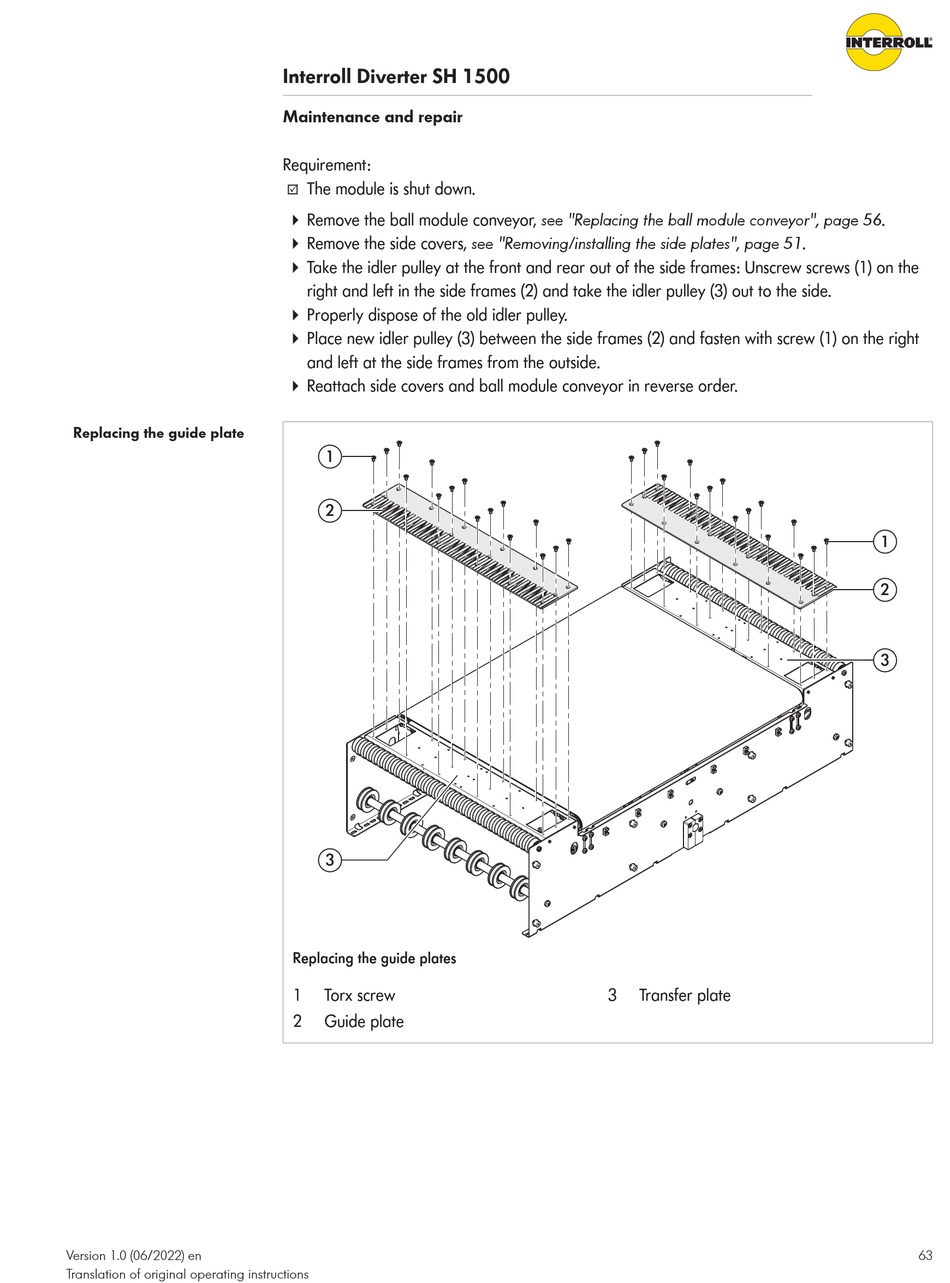

Replacing the guide plates
1 Torx screw
2 Guide plate
3 Transfer plate
1
2
3
