Module conveyor curve -
front diverter
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Diverter SH 1500
Installation
When connecting the module conveyor curve with the diverter, the conveyor and curve direction
as well as the size of the modules must be observed.

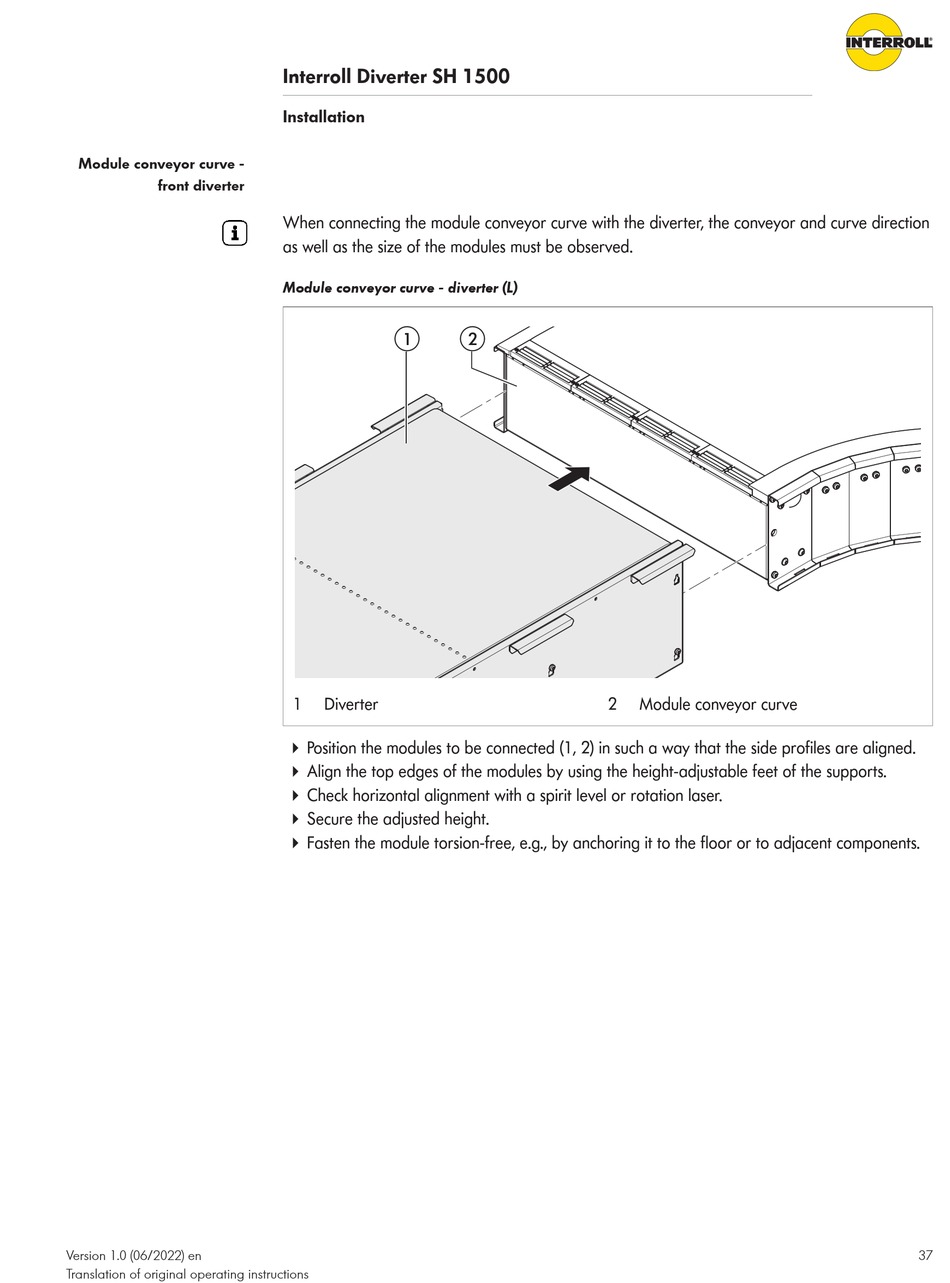

Module conveyor curve - diverter (L)
1
1 Diverter
4 Position the modules to be connected (1, 2) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
2
2 Module conveyor curve
