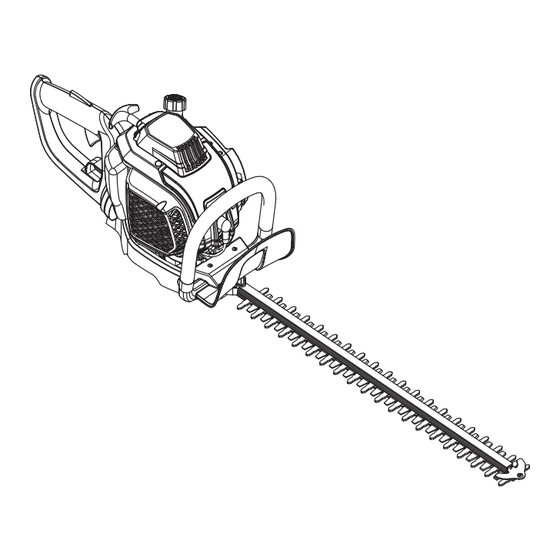

- Page 1 Petrol Hedge Trimmer (26 cm TTHTP26 EAN: 5059340124346 BX220IM WARNING: Read the instructions before using the machine. 5059340124346-TTHTP26-GB-V01.indd 1 18/9/2020 9:55 AM...
- Page 2 Your power tool comes with a 2-year guarantee. Should it develop a fault within this period please do not return it to Store. Please contact the Titan 2 Stroke Helpline Guarantee This product carries a guarantee of 2 year.
-
Page 3: Table Of Contents
Started... Getting Safety information Your equipment Before start Quick start detail... more Equipment functions Operation Care maintenance Troubleshooting Recycling disposal EC declaration of conformity 5059340124346-TTHTP26-GB-V01.indd 3 5059340124346-TTHTP26-GB-V01.indd 3 18/9/2020 9:55 AM 18/9/2020 9:55 AM... -
Page 4: Safety Information
Eye protection (compliant to EN 166) • Protective gloves (compliant to EN ISO 21420 Class 0) • First Aid Kit in case of injury • Dry powder fire extinguisher readily available 5059340124346-TTHTP26-GB-V01.indd 4 5059340124346-TTHTP26-GB-V01.indd 4 18/9/2020 9:55 AM 18/9/2020 9:55 AM... - Page 5 6. Always ensure that all handles and guards are fitted when using the hedge trimmer. Never attempt to use an incomplete hedge trimmer or one fitted with an unauthorized modification. 7. Always use two hands to operate a hedge trimmer. 5059340124346-TTHTP26-GB-V01.indd 5 5059340124346-TTHTP26-GB-V01.indd 5 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 6 3 metres from the fuelling point before starting the engine. 10. Do not operate the equipment if it is leaking fuel. 11. Do not remove the fuel tank cap while the engine is running. 5059340124346-TTHTP26-GB-V01.indd 6 5059340124346-TTHTP26-GB-V01.indd 6 18/9/2020 9:55 AM...
- Page 7 5. Maintain this equipment in accordance with these instructions and keep it well lubricated (where appropriate). 6. Plan your work schedule to spread any high vibration tool use across a longer period of time. 5059340124346-TTHTP26-GB-V01.indd 7 5059340124346-TTHTP26-GB-V01.indd 7 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 8 To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this equipment! 5059340124346-TTHTP26-GB-V01.indd 8 5059340124346-TTHTP26-GB-V01.indd 8 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 9 Wear ear protection Wear protective gloves (compliant to (compliant to EN 352-1) EN ISO 21420 Class 0) Wear eye protection (compliant to EN 166) Do not expose the equipment to rain or wet conditions. 5059340124346-TTHTP26-GB-V01.indd 9 18/9/2020 9:55 AM...
- Page 10 Blades are sharp. Risk of cuts. Keep fingers away from the moving cutting device. Press the primer 6 times before starting the cold engine. Choke – CLOSE position. Choke – OPEN position. 5059340124346-TTHTP26-GB-V01.indd 10 5059340124346-TTHTP26-GB-V01.indd 10 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 11 Fuel consumption (in accordance with ISO 8893) at max. engine performance: 400 kg/h > with to ISO 8893) at max. engine performance: 533 g/kWh Spark plug type: > CHAMPION RCJ6Y > Spark plug gap: 0.6 – 0.7 mm 5059340124346-TTHTP26-GB-V01.indd 11 18/9/2020 9:55 AM...
- Page 12 Proper measures include among others regular maintenance and care of the equipment and accessories, keeping hands warm, periodical breaks and proper planning of work processes! 5059340124346-TTHTP26-GB-V01.indd 12 18/9/2020 9:55 AM...
-
Page 13: Your Equipment
Your equipment TTHTP26 5059340124346-TTHTP26-GB-V01.indd 13 5059340124346-TTHTP26-GB-V01.indd 13 18/9/2020 9:55 AM 18/9/2020 9:55 AM... - Page 14 Suitable 2-stroke motor oil > Fuel mixing bottle (24) > Suitable fuel (#95, unleaded petrol) > Multi-tool (25) > Container to collect fuel > Lubricating gun and lubricant for cutting device 5059340124346-TTHTP26-GB-V01.indd 14 5059340124346-TTHTP26-GB-V01.indd 14 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
-
Page 15: Before You Start
1. Press and hold the rear handle adjustment lever (10), then rotate the rear handle (6) to the desired position (90°/ 0°/ -90°) (Fig. 2, 3, 4 and 5). 5059340124346-TTHTP26-GB-V01.indd 15 5059340124346-TTHTP26-GB-V01.indd 15 18/9/2020 9:55 AM... - Page 16 NOTE: The rear handle (6) can only be locked at 3 positions. Make sure it snaps securely into place before operating the equipment. Right position (90°) Initial position (0°) Left position (-90°) 5059340124346-TTHTP26-GB-V01.indd 16 5059340124346-TTHTP26-GB-V01.indd 16 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 17 BIA or TWC (2 stroke water-cooling type) mixed oil. The recommended mixing ratio for petrol:oil is 40:1. CAUTION! Risk of equipment damage. Never mix fuel and oil directly in the fuel tank (12). 5059340124346-TTHTP26-GB-V01.indd 17 5059340124346-TTHTP26-GB-V01.indd 17 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 18 Empty remaining fuel from the tank after each use. 5059340124346-TTHTP26-GB-V01.indd 18 5059340124346-TTHTP26-GB-V01.indd 18 18/9/2020 9:55 AM...
-
Page 19: Quick Start
Quick start TTHTP26 Operating controls Choke lever CLOSE Recoil starter handle OPEN Throttle Throttle control control Primer lock-out lock-out Stop switch Throttle control Unlock lever 5059340124346-TTHTP26-GB-V01.indd 19 5059340124346-TTHTP26-GB-V01.indd 19 18/9/2020 9:55 AM 18/9/2020 9:55 AM... - Page 20 (If engine already started, skip step 6) Pull recoil Squeeze Run idle for Operate starter handle throttle control 1-2 minutes until the engine lock-out and starts throttle control and release them 5059340124346-TTHTP26-GB-V01.indd 20 5059340124346-TTHTP26-GB-V01.indd 20 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 21 WARNING! This quick start provides only a short overview of how to start and stop the equipment! For safe use it is essential to read the entire instruction manual before first use! 5059340124346-TTHTP26-GB-V01.indd 21 5059340124346-TTHTP26-GB-V01.indd 21 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
-
Page 22: In More Detail
TTHTP26 Intended use This petrol hedge trimmer TTHTP26 is designated with a maximum power output of 0.75 kW. This equipment intended for trimming hedges, bushes and shrubs with a maximum diameter of 20 mm. Do not use the equipment for any other purpose. -
Page 23: Operation
Always let the equipment come to complete stop before putting it down. 9. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the equipment. 5059340124346-TTHTP26-GB-V01.indd 23 5059340124346-TTHTP26-GB-V01.indd 23 18/9/2020 9:55 AM 18/9/2020 9:55 AM... - Page 24 Remove the spark plug and dry the spark plug. Pull the recoil starter handle slowly for several times to drain the fuel from the combustion chamber. Wait the equipment at least 3 metres away before starting the engine to avoid any equipment as described. 5059340124346-TTHTP26-GB-V01.indd 24 18/9/2020 9:55 AM...
- Page 25 8. Let the equipment run in idle for 1 to 2 minutes to let it warm up. Starting warm engine touch ground or any objects. Set the stop switch (11) to I (Fig. 16). 2. Ensure the choke lever (15) is set to OPEN position (Fig. 17). 5059340124346-TTHTP26-GB-V01.indd 25 18/9/2020 9:55 AM...
- Page 26 Start the equipment as described. Press the throttle control lock-out (7), hold it in position and then press the throttle control (9) to engage the cutter blades (2). Operate the engine at full throttle to maintain a proper cutting speed. 5059340124346-TTHTP26-GB-V01.indd 26 5059340124346-TTHTP26-GB-V01.indd 26 18/9/2020 9:55 AM...
- Page 27 For vertical cuts, start the first cut from the bottom cutting upwards to the top. This will prevent any of the trimmings falling into the path of the area still to be cut (Fig. 24). 5059340124346-TTHTP26-GB-V01.indd 27 5059340124346-TTHTP26-GB-V01.indd 27 18/9/2020 9:55 AM...
-
Page 28: Care And Maintenance
WARNING! The cutting device (1) continues to move for some time after the engine has been switched off. Wait until the cutting device comes to a complete stop before setting the equipment on the ground. 5059340124346-TTHTP26-GB-V01.indd 28 5059340124346-TTHTP26-GB-V01.indd 28 18/9/2020 9:55 AM... - Page 29 Keep the cutting device (1) sharp. Have a worn or damaged cutting device replaced with a new one of the same type by an authorised service centre or a similarly qualified person. 5059340124346-TTHTP26-GB-V01.indd 29 5059340124346-TTHTP26-GB-V01.indd 29 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 30 Air filter clean replace whenever necessary Fuel filter clean whenever necessary and fuel replace whenever necessary lines Gear box lubricate check lubricate Cutting clean device replace/ whenever necessary sharpen 5059340124346-TTHTP26-GB-V01.indd 30 5059340124346-TTHTP26-GB-V01.indd 30 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 31 Keep fuel fresh (less than 30 days) or add fuel stabiliser. > Empty the fuel tank after every use. > Run the equipment dry of fuel in idle before storage. > Replace fuel lines and fuel filter every 2 years. 5059340124346-TTHTP26-GB-V01.indd 31 5059340124346-TTHTP26-GB-V01.indd 31 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 32 7. Replace with a new spark plug if either the electrode or the insulation is damaged. 0.6-0.7 mm tight and then lightly tighten it with the multi-tool (25). NOTE: Do not over tighten the spark plug to avoid any damage! (19). 5059340124346-TTHTP26-GB-V01.indd 32 18/9/2020 9:55 AM...
- Page 33 Do not perform any adjustment by yourself. Silencer If it is necessary to adjust or replace the silencer, contact an authorised service centre or a similarly qualified person. 5059340124346-TTHTP26-GB-V01.indd 33 5059340124346-TTHTP26-GB-V01.indd 33 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
- Page 34 Short term storage (less than 1 day) 1. Let the equipment cool down before storage. 2. Store the equipment as horizontally as possible. Make sure that no fuel-oil mixture can run out of the carburetor. 5059340124346-TTHTP26-GB-V01.indd 34 18/9/2020 9:55 AM...
- Page 35 If you are transporting the equipment in a vehicle: > Let the equipment cool down. > Empty the fuel tank (12). > Secure the equipment against slipping using bungee cords (not provided) and vehicle’s transportation hooks. 5059340124346-TTHTP26-GB-V01.indd 35 5059340124346-TTHTP26-GB-V01.indd 35 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
-
Page 36: Troubleshooting
Have a qualified person clean/ replace the fuel filter. Spark plug defective? Replace spark plug. Engine cold? Follow cold starting procedure. Carburetor setting not Have a qualified person adjust the correct? carburetor. 5059340124346-TTHTP26-GB-V01.indd 36 5059340124346-TTHTP26-GB-V01.indd 36 18/9/2020 9:55 AM 18/9/2020 9:55 AM... -
Page 37: Recycling And Disposal
3. The equipment comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the equipment is operating properly. Recycle the package afterwards. 5059340124346-TTHTP26-GB-V01.indd 37 5059340124346-TTHTP26-GB-V01.indd 37 18/9/2020 9:55 AM... -
Page 38: Ec Declaration Of Conformity
Object of the declaration/Objet de la déclaration/Przedmiot deklaracji/Obiectul declarației/Gegenstand der Erklärung/Objeto de la declaración/Objeto da declaração Product/Produit/Produkt/Produsul/Produkt/ Model/Modèle/Model/ Producto/ Produto Modelul/Modell/Modelo/ Modelo Hedge Trimmer/Taille-haie/ Nożyce do TTHTP26 5059340124346 żywopłotów/Mașina de tuns garduri vii/ Cortasetos/ Aparador de sebes 5059340124346-TTHTP26-GB-V01.indd 38 18/9/2020 9:55 AM... - Page 39 Limites de emissão de poluentes gasosos e de poluentes de partículas 2016/1628/REGULAMENTO da UE 2011/65/UE como restrição diretiva alterada da utilização de certas substâncias perigosas em equipamentos elétricos e eletrónicos 5059340124346-TTHTP26-GB-V01.indd 39 5059340124346-TTHTP26-GB-V01.indd 39 18/9/2020 9:55 AM 18/9/2020 9:55 AM...
