- Page 1 Cordless grass trimmer 18V 25cm SOLO TTI821GGT WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... -
Page 3: Safety Information
TTI821GGT by TITAN Safety information Safety warnings General safety warnings 1. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. - Page 4 Safety information TTI821GGT by TITAN Safety warnings Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 5 TTI821GGT by TITAN Safety information 2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. 3. Prevent unintentional starting. Ensure the switch...
- Page 6 Safety information TTI821GGT by TITAN Safety warnings Power tool use and care 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 7 TTI821GGT by TITAN Safety information 7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 8 Safety information TTI821GGT by TITAN Safety warnings 6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. 7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
- Page 9 TTI821GGT by TITAN Safety information Preparation 1. Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
- Page 10 Safety information TTI821GGT by TITAN Safety warnings 9. Always ensure that the ventilation openings are kept clear of debris. Maintenance and storage 1. Disconnect the machine from the power supply (i.e. remove the plug from the mains, remove the disabling device or removable battery) before carrying out maintenance or cleaning work.
- Page 11 Safety information TTI821GGT by TITAN 6. Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric shock. 7. Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted.
- Page 12 Safety information TTI821GGT by TITAN Safety warnings Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards.
- Page 13 Safety information TTI821GGT by TITAN WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their...
- Page 14 Safety information TTI821GGT by TITAN Symbols Wear tight-fitted protective clothes. Switch the product off and remove battery pack before assembly, cleaning, adjustments, maintenance, storage and transportation. This product is of protection class III. Do not expose the product to rain or wet conditions (moisture).
-
Page 15: Your Product
TTI821GGT by TITAN Safety information / Your product Do note expose battery packs to heat in excess of 40 ºC. Do not charge or store the battery pack in temperatures below 5 °C (41 °F) and above 40 °C (104°F). - Page 16 Your product / Before you start TTI821GGT by TITAN Your product 1. Main handle b. Indication line* g. Release push 2. Lock-off button 11. Guard button 3. On/off switch a. Screw h. Eyelet 4. Rear safeguard b. Knife i. Screw hole* 5.
-
Page 17: Before You Start
TTI821GGT by TITAN Before you start You will need (items not supplied) (items supplied) Suitable personal protective equipment Guard (11) Suitable crosshead screwdriver Battery pack (16) Charger (17) and its manual NOTE: The accessories required depend on the intended application. - Page 18 Before you start TTI821GGT by TITAN Setup WARNING! Never use the trimmer head (13) without the guard (11) properly fitted. NOTE: Always remove knife protection (11d) before use. Battery pack Attaching / releasing the battery pack 1. Align the battery pack (16) with the sliding slots of the battery docking port (5) under the rear safeguard (4) and slide the battery pack in to attach it.
- Page 19 TTI821GGT by TITAN Before you start Battery capacity indicators The battery pack (16) is equipped with the battery capacity indicators (16a) which are used to give an indication of the battery pack’s remaining capacity. Press the battery capacity button (16b) to check battery capacity (Fig. 4). The LEDs will stay lit for approximately 5 seconds.
-
Page 20: In More Detail
TTI821GGT by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity... - Page 21 TTI821GGT by TITAN Product functions Intended use This cordless grass trimmer TTI821GGT is designated with a rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”.
- Page 22 TTI821GGT by TITAN Product functions Length adjustment Fig. 6 Main handle angle adjustment Adjust the main handle (1) to either 0° for trimming or 90° / 180° for edging. 1. Slide the unlock button (7) downward and turn the main handle (1) clockwise while holding lower pole (9) to adjust the trimmer head (13) to an angle of 90°...
- Page 23 TTI821GGT by TITAN Product functions Trimmer head tilt adjustment Tilt the angle of trimmer head (13) to fit the ground conditions for trimming or edging use by aligning the indicator (10a) with the indication line (10b) (Fig. 9). 90° 75°...
- Page 24 TTI821GGT by TITAN Product functions Plant protector Use the plant protector (12) to keep distance to obstacles that could be hit by the cutting device. WARNING! Adjust the plant protector position only when the product is switched off and the cutting device is at a complete stop! 1.
- Page 25 TTI821GGT by TITAN Operation Guard The guard (11) protects the operator against thrown objects during operation. It is equipped with a knife (11b) that cuts the trimming line (13d) (Fig. 13). Fig. 13 NOTE: Always remove knife protection (11d) before use.
- Page 26 Operation TTI821GGT by TITAN General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that accessories or attachments are properly fixed.
- Page 27 TTI821GGT by TITAN Operation 7. Ensure the cutting device remains clean and free from off-cuts that may cause it to jam. Check regularly. Release the on/off switch (3) and remove the battery pack before checking. 8. Trim longer grass in stages; do not cut long grass in one cut (Fig. 17). For the best results, cut longer grass in steps (Fig.
- Page 28 Operation TTI821GGT by TITAN Tips Fig. 20 Fig. 21 NOTE: The trimming line will wear faster and require more replacement if cutting is done along sidewalks or other abrasive surfaces or heavier weeds are being cut. NOTE: While trimming, the cutting device is possible to be blocked by grass or unevenly ground.
- Page 29 TTI821GGT by TITAN Operation Fig. 22 3. Repeat until the worn part of the trimming line (13d) exceeds the distance to the knife (11b). 4. Attach the battery pack and use the product as described. Excess line will be cut by the knife (11b) and should always remain inside the radius of the guard (11).
- Page 30 Care and maintenance TTI821GGT by TITAN The golden rules for care WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.

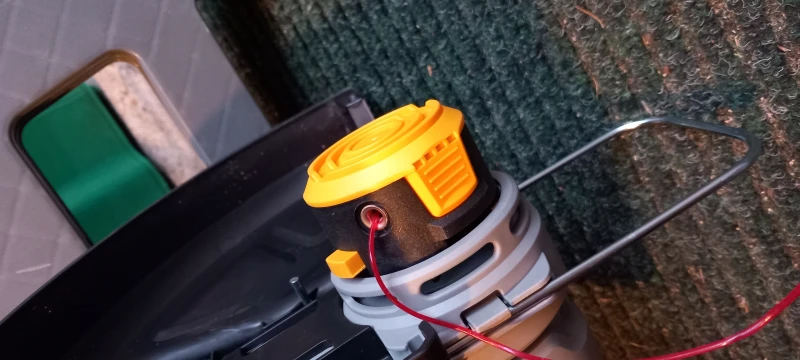

- Page 31 TTI821GGT by TITAN Care and maintenance Trimming line Replace the trimming spool Replace the line spool when it is empty or worn. 1. Turn the product upside down to access the trimming line. 2. Hold the trimmer head (13) steady with one hand. Press the release latches (13b) on both sides, then lift the cover (13a) and remove it (Fig.
- Page 32 Care and maintenance TTI821GGT by TITAN Trimming line 2. Hold the trimmer head (13) steady with one hand. Press the release latches (13b) on both sides to remove the cover (13a). 3. Remove the trimming spool (13c) from the housing (13e).
-
Page 33: Troubleshooting
TTI821GGT by TITAN Care and maintenance / Troubleshooting 5. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C. 6. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust. -
Page 34: Recycling And Disposal
Troubleshooting / Recycling and disposal TTI821GGT by TITAN Troubleshooting Problem Possible cause Solution 4. Excessive 4.1. Trimmer head is 4.1. Replace with a new one vibration or damaged noise 4.2. Bolts/nuts are loose 4.2. Tighten bolts/nuts 4.3. Trimming line is worn/ 4.3. -
Page 35: Guarantee
TTI821GGT by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 36 TTI821GGT by TITAN Guarantee Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 37: Technical Specifications
Technical specifications TTI821GGT by TITAN Technical specifications General > Rated voltage : 18 V > Rated no load speed n : 9500 min > Cutting width : 25 cm > Trimming line : Non-metallic, Ø 1.6 mm, length 4 m >... - Page 38 Technical specifications TTI821GGT by TITAN Technical specifications >Uncertainty K : 3.1 dB(A) Hand arm vibration values : 2.8 m/s² >Uncertainty K : 1.5 m/s² The sound values have been determined according to noise test code given in EN 50636-2-91, using the basic standards EN ISO 11201 and EN ISO 3744.
-
Page 39: Declaration Of Conformity
TTI821GGT by TITAN Declaration of conformity Declaration of conformity...
