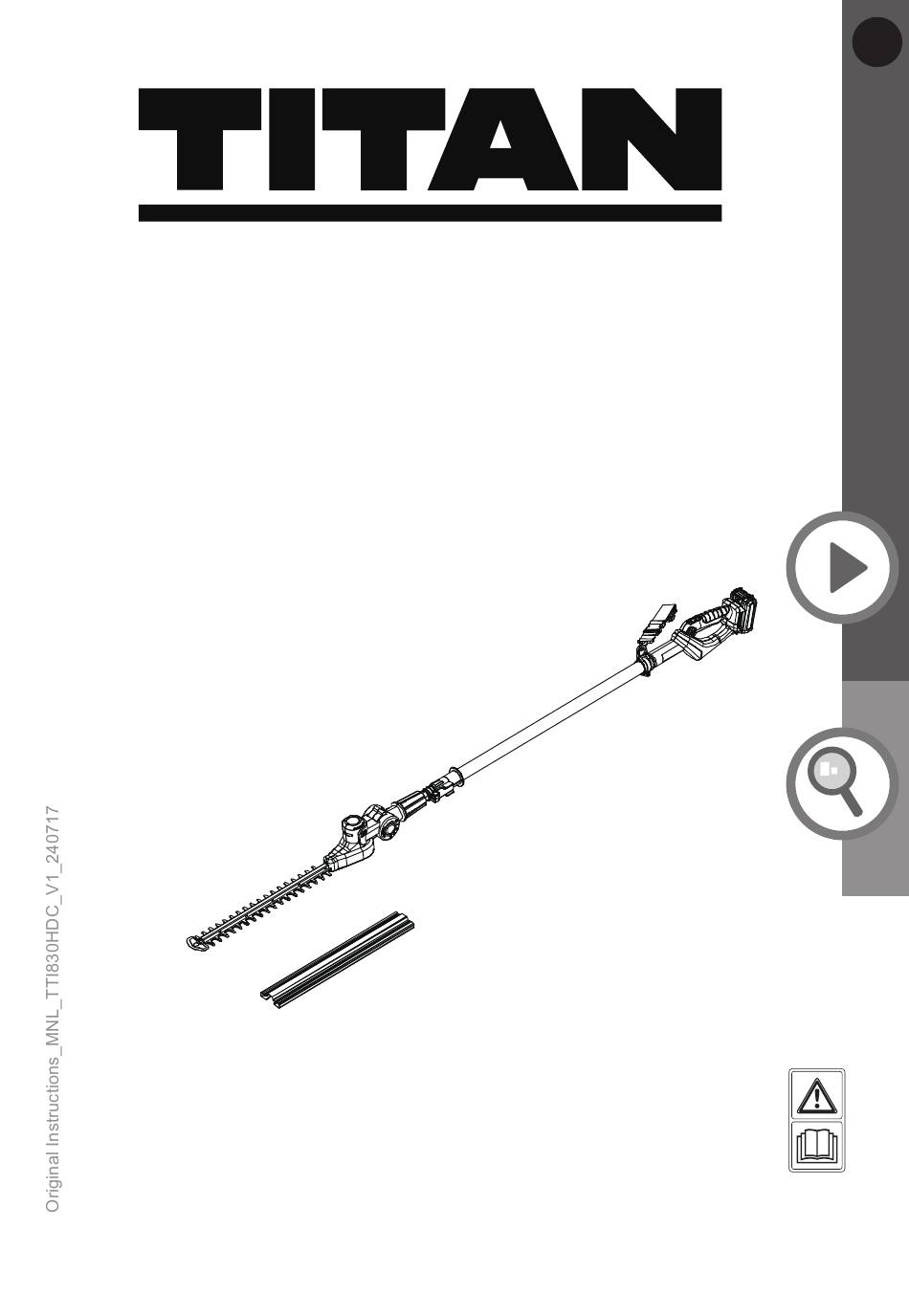

- Page 1 Cordless pole hedge trimmer 18V 45cm SOLO TTI830HDC Bare tool: Includes only the tool, without the battery pack and charger. Kit: Includes the tool along with the battery pack and charger. WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... -
Page 3: Safety Information
TTI830HDC by TITAN Safety information Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 Safety information TTI830HDC by TITAN Safety warnings 3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 5 TTI830HDC by TITAN Safety information 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. 5. Do not overreach. Keep proper footing and balance at all times.
- Page 6 Safety information TTI830HDC by TITAN Safety warnings and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s...
- Page 7 TTI830HDC by TITAN Safety information other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Page 8 Safety information TTI830HDC by TITAN Safety warnings when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. 2. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch.
- Page 9 TTI830HDC by TITAN Safety information Additional safety warnings for pole hedge trimmer 1. To reduce the risk of electrocution, never use the pole hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
- Page 10 Safety information TTI830HDC by TITAN Safety warnings mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort. 8. When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other.
- Page 11 TTI830HDC by TITAN Safety information Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
- Page 12 Safety information TTI830HDC by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
- Page 13 Safety information TTI830HDC by TITAN Keep hands away from moving cutting device! Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.
-
Page 14: Your Product
Your product TTI830HDC by TITAN Your product 1. Cutting device a. Lock pin (x2)* 15. Battery pack (Bare (blade) 7. Locking lever for tool not supplied) a. Blade tip protector length adjustment a. Battery capacity 2. Motor head 8. Front pole indicators a. -
Page 15: Before You Start
TTI830HDC by TITAN Before you start Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 16 Before you start TTI830HDC by TITAN Setup WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures...
-
Page 17: Battery Pack
Fig. 2 TTI830HDC by TITAN Before you start NOTE: Always attach the blade cover (14) when the product is not in use, for storage and transportation. To attach the blade cover (14), align and push the blade cover onto the cutting device (blade) (1). -
Page 18: In More Detail
TTI830HDC by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity... -
Page 19: Intended Use
TTI830HDC by TITAN Product functions Intended use This cordless hedge trimmer TTI830HDC is designated with a rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. -
Page 20: Length Adjustment
TTI830HDC by TITAN Product functions Harness WARNING! Always attach the product to the harness (17). Do not carry it only with your hands! 5. In case of emergency hold the soft grip (8a) of the front pole (8) with the left hand, and use the right hand to press two clips of the quick release (17b). -
Page 21: Angle Adjustment
TTI830HDC by TITAN Product functions Angle adjustment The angle of the blade head can be adjusted into five 30° positions (Fig. 11): 1. Press the unlock button (3) to unlock the angle adjustment and hold it in position. 0° 2. Adjust the blade head to the desired position by swing the pole support (4). -
Page 22: General Operation
TTI830HDC by TITAN Operation General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. Take care of any problem you find or have the product checked by qualified specialist. - Page 23 TTI830HDC by TITAN Operation 7. Do not rush and do not attempt to cut too much with one stroke of the cutting device. 8. First cutting both sides from the bottom upwards to the top. This will prevent any of the cuttings falling into the path of the area still to be cut (Fig. 13).
-
Page 24: After Use
Operation TTI830HDC by TITAN Trimming NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 17). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge. -
Page 25: The Golden Rules For Care
TTI830HDC by TITAN Care and maintenance The golden rules for care WARNING! Always switch the product off, remove the battery pack (15) and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 26 Care and maintenance TTI830HDC by TITAN Cutting device (blade) WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e. g. a brush or wooden stick! Never use your bare hands! 1.
-
Page 27: Troubleshooting
TTI830HDC by TITAN Care and maintenance / Troubleshooting Transportation 1. Switch the product off remove the battery pack. 2. Attach the blade cover (14) onto the cutting device (blade) (1). 3. Always carry the product by its soft grip (8a) of the front pole (8) and rear handle (11). -
Page 28: Recycling And Disposal
Troubleshooting / Recycling and disposal TTI830HDC by TITAN Troubleshooting Problem Possible cause Solution 5. Excessive 5.1. Blade is dull/damaged 5.1. Replace with a new one vibration or 5.2. Bolts/nuts are loosen 5.2. Tighten bolts/nuts noise Recycling and disposal Waste electrical products should not be disposed of with household waste. -
Page 29: Guarantee
Guarantee TTI830HDC by TITAN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 30 Guarantee TTI830HDC by TITAN Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 31: Technical Specifications
Technical specifications TTI830HDC by TITAN Technical specifications General >Rated voltage : 18 V >Rated no load speed n : 2400 min >Blade length : 45 cm >Max. cutting length : 42 cm >Tooth gap : max. 20 mm >Protection class : III >Degree of protection... - Page 32 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation TTI830HDC TTI = TITAN (brand) 830 = Series number HDC = Pole hedge trimmer TTI801BAT-A TTI=TITAN (brand)
-
Page 33: Declaration Of Conformity
Declaration of conformity TTI830HDC by TITAN Declaration of conformity (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto ... - Page 34 Declaration of conformity TTI830HDC by TITAN Declaration of conformity 2014/30/UE como alteração da compatibilidade eletromagnétic 2000/14/CE como diretiva de ruído exterior alterada 2011/65/UE como restrição diretiva alterada da utilização de certas substâncias perigosas em equipamentos elétricos e eletrónicos Measured Sound Power Level Guaranteed Sound Power Level Le niveau de puissance acoustique mesuré...
- Page 35 Declaration of conformity TTI830HDC by TITAN Declaration of conformity (UK) DECLARATION OF CONFORMITY Product Cordless Pole Hedge Trimmer 18V 45cm TTI830HDC Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative:...
- Page 36 Customer Care and Technical Helpline TTI830HDC by TITAN Customer Care and Technical Helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need...
-
Page 37: Availability Of Spare Parts
TTI830HDC by TITAN Availability of Spare Parts Availability of Spare Parts Contact the customer service helpline for assistance or visit www.kingfisherspares.com For assistance contact the customer services helpline: UK 0330 678 3077 uk@Kingfisherservice.com ROI 1 800 365 800 eire@kingfisherservice.com Further information about this product can also be found at:...
