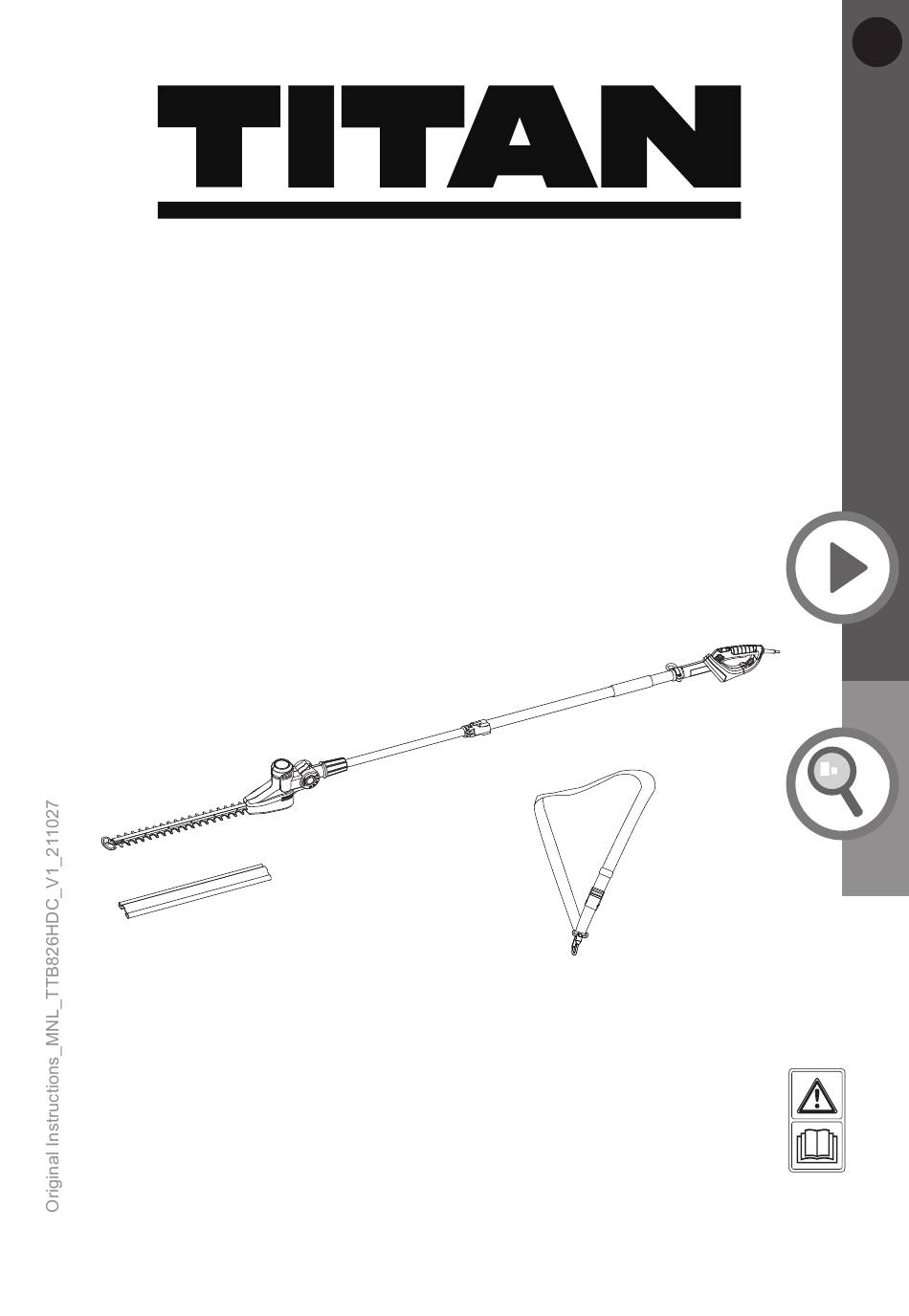

- Page 1 Pole Hedge Trimmer 550W 50cm TTB826HDC WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... -
Page 3: Safety Information
TTB826HDC by TITAN Safety information Safety warnings General power tool safety warnings WA R N I N G ! R e a d a l l s a f e t y w a r n i n g s , instructions, illustrations and specifications provided with this power tool. - Page 4 Safety information TTB826HDC by TITAN Safety warnings 3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 5 TTB826HDC by TITAN Safety information power tools that have the switch on invites accidents. 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 Safety information TTB826HDC by TITAN Safety warnings or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
- Page 7 TTB826HDC by TITAN Safety information 2. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
- Page 8 Safety information TTB826HDC by TITAN Safety warnings hedge trimmer overhead. Falling debris can result in serious personal injury. 4. Before operating the hedge trimmer, the user should make sure the locking device(s) of any moving elements (e.g. the extended shaft and pivoting element), if any, are in the locked position.
- Page 9 TTB826HDC by TITAN Safety information Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
- Page 10 Safety information TTB826HDC by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
- Page 11 Safety information TTB826HDC by TITAN Keep sufficient distance away from electrical power lines. Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.
-
Page 12: Your Product
Your product TTB826HDC by TITAN Your product 11 12 13 9 10 3 4 5 1. Cutting device (blade) 9. Soft grip a. Blade tip protector 10. Loop 2. Motor head 11. Lock-off button a. Air vents 12. Rear handle 3. - Page 13 TTB826HDC by TITAN Before you start Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
-
Page 14: Before You Start
Before you start TTB826HDC by TITAN Setup Pole assembly 1. Loosen the locking lever (7) (Fig. 1, step 1) and pull out the pole extension (6) (Fig. 1, step 2), then fasten the locking lever (7) (Fig. 1, step 3). - Page 15 Before you start TTB826HDC by TITAN Connection to power supply NOTE: The product is equipped with a power cord with the length of 10 m. If a proper extension cord is required for operation. The extension cord must be suitable for outdoor use with sockets protected against water splashing! Ensure the extension cord is of the proper size and type for your product (≥...
- Page 16 Before you start TTB826HDC by TITAN Connection to power supply WARNING! Check the voltage! The voltage must comply with the information on the rating label! If using an extension cord it must be suitable for outdoor use with sockets protected against water splashing.
-
Page 17: In More Detail
TTB826HDC by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity... - Page 18 TTB826HDC by TITAN Product functions Intended use This electric hedge trimmer TTB826HDC is designated with a rated power input of 550 Watts. The product is intended for cutting and trimming of hedges, bushes and shrubs in domestic gardens. The maximum cutting capacity must be observed. Do not cut branches exceeding the stated maximum capacity.
- Page 19 TTB826HDC by TITAN Product functions Harness WARNING! Always attach the product to the harness (17). Do not carry it only with your hands! 5. In case of emergency hold the soft grip (9) of the front pole (8) with the left hand, and use the right hand to press two clips of the quick release (17b).
- Page 20 Product functions TTB826HDC by TITAN Angle adjustment The angle of the blade head can be adjusted into five 30° 30° positions (Fig. 10): 1. Press the unlock button (3) to unlock the 0° angleNadjustment and hold it in position. 0°...
- Page 21 Operation TTB826HDC by TITAN General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that the accessories and attachments are properly fixed.
- Page 22 TTB826HDC by TITAN Operation Trimming 5. Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation. 6. Always hold the product firmly with both hands on soft grip (9) of the front pole (8) and the rear handle (12).
- Page 23 TTB826HDC by TITAN Operation NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 16). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge.
- Page 24 TTB826HDC by TITAN Care and maintenance The golden rules for care WARNING! Always switch the product off, disconnect the plug from the power supply. Let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
- Page 25 TTB826HDC by TITAN Care and maintenance Cutting device (blade) WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e. g. a brush or wooden stick! Never use your bare hands! 1.
- Page 26 Care and maintenance TTB826HDC by TITAN UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
- Page 27 TTB826HDC by TITAN Care and maintenance Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Switch the product off and disconnect it from the power supply.
-
Page 28: Troubleshooting
Troubleshooting / Recycling and disposal TTB826HDC by TITAN Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! -
Page 29: Guarantee
TTB826HDC by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 30 Guarantee TTB826HDC by TITAN Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 31: Technical Specifications
Technical specifications TTB826HDC by TITAN Technical specifications General >Rated voltage, frequency : 230-240 V~,50 Hz >Rated power input : 550 W >Rated no load speed n : 3800 min >Blade length : 50 cm >Max. cutting length : 47 cm >Tooth spacing... - Page 32 Technical specifications TTB826HDC by TITAN Rating label explanation Pole Hedge Trimmer: TTB826HDC TTB=TITAN (brand) 826=Series number HDC=Pole hedge trimmer...
-
Page 33: Declaration Of Conformity
TTB826HDC by TITAN Declaration of conformity Declaration of conformity...
