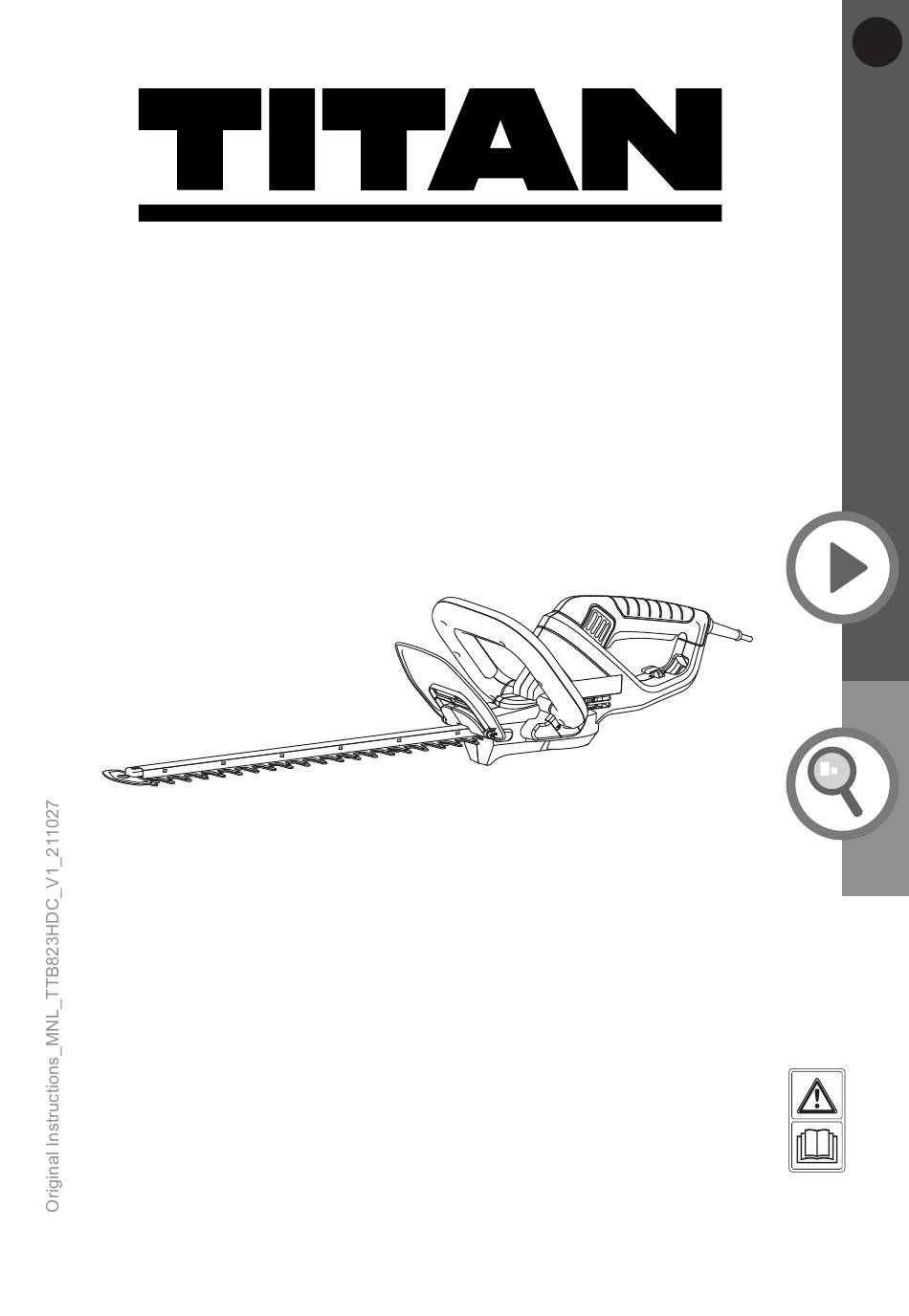

- Page 1 Hedge Trimmer 550W 50cm TTB823HDC WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... -
Page 3: Safety Information
TTB823HDC by TITAN Safety information Safety warnings General power tool safety warnings WA R N I N G ! R e ad all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 Safety information TTB823HDC by TITAN Safety warnings 3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 5 TTB823HDC by TITAN Safety information 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. 5. Do not overreach. Keep proper footing and balance at all times.
- Page 6 Safety information TTB823HDC by TITAN Safety warnings and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools and accessories. Check for...
- Page 7 TTB823HDC by TITAN Safety information after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. 2. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch.
- Page 8 Safety information TTB823HDC by TITAN Safety warnings Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
- Page 9 TTB823HDC by TITAN Safety information 1. Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. 2. Switch the product off and disconnect from the power supply if there are malfunctions.
- Page 10 Safety information TTB823HDC by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
- Page 11 Safety information TTB823HDC by TITAN Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.
-
Page 12: Your Product
Your product TTB823HDC by TITAN Your product 1. Cutting device (blade) 6. Rear handle a. Blade tip protector 7. On/off switch 2. Front safeguard 8. Rear safeguard 3. Safety switch 9. Cord retainer 4. Front handle 10. Power cord with plug 5. - Page 13 TTB823HDC by TITAN Before you start Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
-
Page 14: Before You Start
Before you start TTB823HDC by TITAN Setup Blade cover 1. Remove the blade cover (11) from the cutting device (blade) (1) before operation (Fig. 1). 2. Keep the blade cover (11) safely. Fig. 1 NOTE: Always attach the blade cover (11) when the product is not in use, for storage and transportation. - Page 15 TTB823HDC by TITAN Before you start Connection to power supply WARNING! The product is equipped with a power cord with the length of 10 m. If a proper extension cord is required for operation. The extension cord must be suitable for outdoor use with sockets protected against water splashing! Ensure the extension cord is of the proper size and type for your product (≥...
-
Page 16: In More Detail
TTB823HDC by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity... - Page 17 TTB823HDC by TITAN Product functions Intended use This electric hedge trimmer TTB823HDC is designated with a rated power input of 550 Watts. The product is intended for cutting and trimming of hedges, bushes and shrubs in domestic gardens. The maximum cutting capacity must be observed. Do not cut branches exceeding the stated maximum capacity.
- Page 18 TTB823HDC by TITAN Operation General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that the accessories and attachments are properly fixed.
- Page 19 TTB823HDC by TITAN Operation 5. Do not rush and do not attempt to cut too much with one stroke of the cutting device. 6. First cutting both sides from the bottom upwards to the top. This will prevent any of the cuttings falling into the path of the area still to be cut (Fig. 5).
- Page 20 TTB823HDC by TITAN Operation / Care and maintenance Fig. 8 10. Lubricate the internal surfaces of the blade if the cutting device (blade) (1) overheats during operation (Fig. 9). WARNING! This operation must only be performed when the blades have stopped running and the product is switched off! Fig.
- Page 21 TTB823HDC by TITAN Care and maintenance The golden rules for care 1. Keep the product clean. Remove debris from it after each use and before storage. 2. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
- Page 22 Care and maintenance TTB823HDC by TITAN Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard. UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below.
-
Page 23: Troubleshooting
TTB823HDC by TITAN Care and maintenance / Troubleshooting Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. -
Page 24: Recycling And Disposal
Troubleshooting / Recycling and disposal TTB823HDC by TITAN Troubleshooting Problem Possible cause Solution 1. Product does 1.1. Not connected to 1.1. Connect to power not start power supply supply 1.2. Power cord or plug is 1.2. Check by a specialist... -
Page 25: Guarantee
TTB823HDC by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 26 Guarantee TTB823HDC by TITAN Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 27: Technical Specifications
Technical specifications TTB823HDC by TITAN Technical specifications General >Rated voltage, frequency : 230-240 V~,50 Hz >Rated power input : 550 W >Rated no load speed n : 3800 min >Blade length : 50 cm >Max. cutting length : 48 cm >Tooth spacing... - Page 28 Technical specifications TTB823HDC by TITAN Rating label explanation Hedge trimmer: TTB823HDC TTB=TITAN (brand) 823=Series number HDC=Hedge trimmer...
-
Page 29: Declaration Of Conformity
TTB823HDC by TITAN Declaration of conformity Declaration of conformity...
