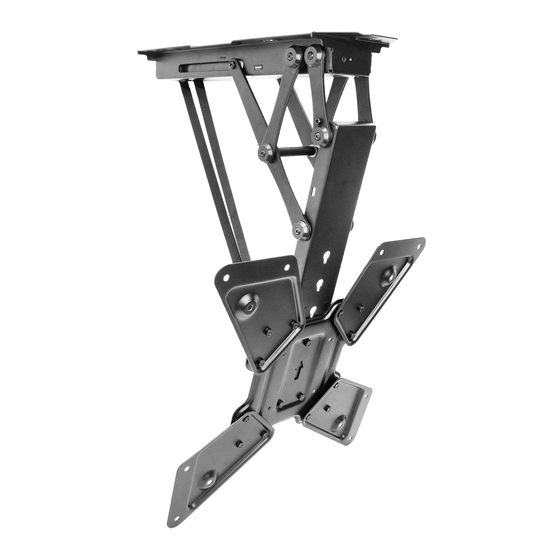

White Electric Flip Down Ceiling TV Mount
Instruction Manual
SKU: MOUNT-E-FD55W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-e-fd55
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-E-FD55W and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo MOUNT-E-FD55W

Summary of Contents for Vivo MOUNT-E-FD55W

  • Page 1 White Electric Flip Down Ceiling TV Mount Instruction Manual SKU: MOUNT-E-FD55W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-e-fd55 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3 ASSEMBLY STEPS STEP 1 OPTION B: Concrete Ceiling OPTION A: Wood Ceiling Using ceiling template (C), mark exact location of Using ceiling template (C), mark exact location of mounting holes. Drill pilot holes 2.4” deep, using a mounting holes. Drill pilot holes 2.2” deep using a 10mm drill bit.
  • Page 4 STEP 2 Remove the two bottom screws from the VESA plate (B) and set aside for later use. OPTIONAL (if mounting a TV with a VESA pattern larger than 200mm x 200mm) Remove the screws from the VESA adapters (E, F). Align the VESA adapters with the VESA plate and assemble, using screws previously removed from the VESA adapters.
  • Page 5 STEP 2 (Continued) OPTION B: Curved/Recessed Back TV Align the VESA plate with the mounting holes in the back of the TV screen. Install VESA plate to TV using appropriate screws and washers according to your screen type. STEP 3 Place the VESA plate on the ceiling mount (A) by inserting the attached screw on the VESA plate into the ceiling mount (A) keyhole .
  • Page 6 STEP 3 (Continued) Using screws previously removed (in beginning of step 2), fasten the VESA plate to ceiling mount. Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in the fully lowered position.
  • Page 7 STEP 4 Run cables along edge of mount. Allow slack in cables for arm movement. Place covers over cables and snap into place. Using cable ties (I), fasten cables. NOTE: Keep cables clear from arm to avoid damage due to pinching. STEP 5 Plug power adapter (G) into mount, and connect to AC outlet.
