Vivo MOUNT-E-FD55/W Instruction Manual

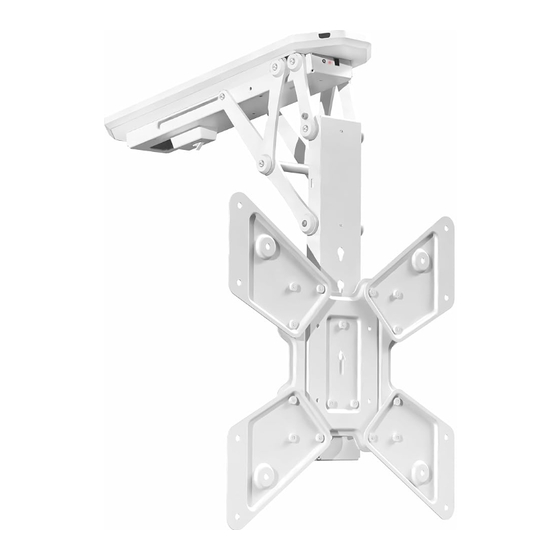

Electric flip down ceiling tv mount
Hide thumbs Also See for MOUNT-E-FD55/W:
Table of Contents

Advertisement

Quick Links

Download this manual
Electric Flip Down
Ceiling TV Mount
SKU: MOUNT-E-FD55/W
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/mount-e-fd55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-E-FD55/W and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo MOUNT-E-FD55/W

Summary of Contents for Vivo MOUNT-E-FD55/W

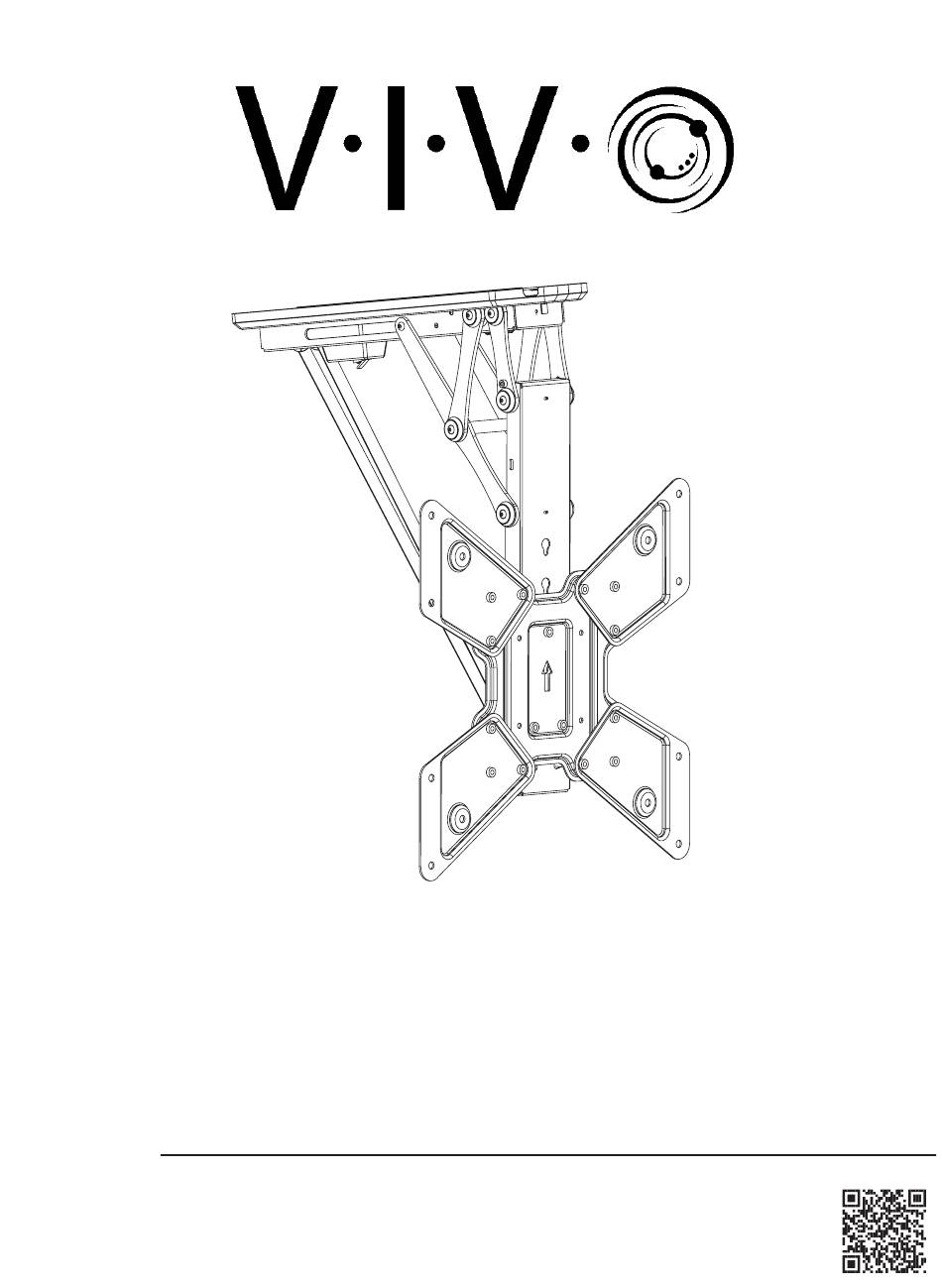

  • Page 1 Electric Flip Down Ceiling TV Mount SKU: MOUNT-E-FD55/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-e-fd55...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...

  • Page 3: Product Warranty

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.

  • Page 4: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x2) Mount VESA Plate Celing Template Decorative Cover E (x2) F (x2) G (x1) H (x1) VESA Adapter VESA Adapter AC Adapter Remote I (x4) Cable Tie Included Hardware & Tools M-A (x4) M-B (x4) M-C (x4)

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1a OPTION A: Wood Ceiling Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.2” deep using a 4.5mm drill bit. Insert two Mounting Screws (W-A), leaving a 5mm gap from ceiling. Hang Mount (A) so that the screws fit into the keyhole openings. Slide Mount (A) backward, then secure using additional Screws (W-A) with Washers (W-C).
  • Page 6 STEP 1b OPTION B: Concrete Ceiling Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.4” deep, using a 10mm drill bit. Insert six Anchors (W-B), then tighten two Screws (W-A), leaving a 5mm gap from ceiling. Hang Mount (A) so that the screws fit into the keyhole openings.
  • Page 7 STEP 2 Remove the two bottom screws from the VESA Plate (B) and set aside for later use. Loosen the top screw leaving at least 5mm of threads exposed. Remove the screws from VESA Adapters (E, F). Align VESA Adapters (E, F) with VESA Plate (B) and assemble, using screws previously removed from VESA adapters (E, F).
  • Page 8 STEP 3 OPTION A: Flat Back TV Align the VESA plate assembly with the mounting holes in the back of the TV screen. Install VESA plate to TV using appropriate screws and washers according to your screen type. OPTION B: Curved/Recessed Back TV Align the VESA plate assembly with the mounting holes in the back of the TV screen.
  • Page 9 STEP 4 Hang VESA Plate (B) on Mount (A) by inserting the attached screw on VESA Plate (B) into the Mount (A) keyhole. Using screws previously removed from step 2, fasten VESA Plate (B) to Mount (A).
  • Page 10 STEP 4 - CONT’D NOTE: Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in the fully lowered position STEP 5 Run cables along edge of Mount (A). Allow slack in cables for arm movement. Place Decorative Covers (D) over cables and snap into place.
  • Page 11 STEP 6 Plug AC Adapter (G) into Mount (A), and connect to an AC outlet. Use the Remote Cotrol (H) manual for operating instruction. NOTE: Plugging AC Adapter (G) into an AC outlet prior to Mount (A) may cause a large spark when connecting to the mount.
  • Page 12 Remote | Operating Instructions Stop Downward Upward Movement Movement Recall Memory Recall Memory Position 1 Position 2 Memory Program Memory Program Button 1 Button 2 First Time Use 1. Install two AAA batteries (not included) in the Remote. 2. Plug the mount in. The mount will beep once, and will be ready for operation. DO NOT OPERATE WHEN UNMOUNTED: The mount relies on gravity for correct operation and will only operate when in the correct orientation.

  • Page 13: Troubleshooting

    Ensure power supply is properly connected to the product. If so, ensure power outlet is working. If there is no beeping sound or red light (power indication) on the TV mount, please contact us at 309-278-5303 or help@vivo-us.com to replace the power supply. Abnormal Noise Please contact us at 309-278-5303 or help@vivo-us.com to replace...

  • Page 14: Cable Management

    WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...

  • Page 15: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 16 LAST UPDATED: 02/01/24 REV1.2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
