● Thank you for your Yamato Scientific BM series Water Bath purchase.
● For proper use of this unit, please read the instruction manual and warranty thoroughly before
operation. Keep both for any future references.

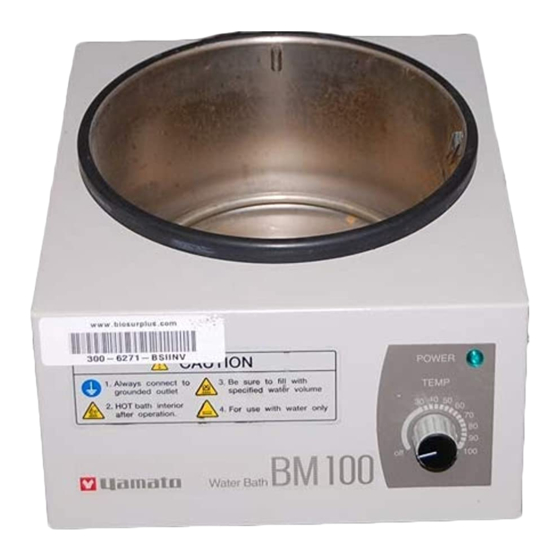

WATER BATH
BM110
BM210
First Edition
Read and apprehend important warnings in this
instruction manual prior to use.
Yamato Scientific
No．AC5-9806-07-BM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yamato BM Series
Summary of Contents for Yamato BM Series
- Page 1 BM110 BM210 First Edition ● Thank you for your Yamato Scientific BM series Water Bath purchase. ● For proper use of this unit, please read the instruction manual and warranty thoroughly before operation. Keep both for any future references. Read and apprehend important warnings in this instruction manual prior to use.
-
Page 2: Table Of Contents
Table of Contents 1. Specifications .............................1 2. Safety Information.......................... 2-5 Safety Symbols…………………………………………………………………………..2 Safety Precautions…………………………………………………………………….3-4 Hazardous Materials…………………………………………………………………….5 3. Identification of Parts........................6-9 BM110…………………………………………………………………………………….6 BM210…………………………………………………………………………………….7 Sample : Combined with RE210……………………………………………………….8 Sample : Combined with RE510……………………………………………………….9 4. How to Operate..........................10 5. Maintenance............................11 Daily maintenance/Weekly maintenance …………………………………………..11 Troubleshooting Guide.…….…………………………………………………………11 6. -
Page 3: Specifications
1. Specifications Model BM110 BM210 Room temp. +5℃ ~ 95℃ *1 Temp. range during operation 0℃ ~ 100℃ Temp. setting range ±2℃ at 60℃ Accuracy of temp. adjustment *2 Control system ON/OFF control Set-up system Analog set-up Display system Thermometer Operation function Operation at fixed point Thermoregulator... -
Page 4: Safety Information
2. Safety Information Safety Symbols Safety Information This instruction manual and our products apply various indications for safety. Ignoring these indications can cause such situations as listed below. Read and understand the following warning and caution signs in this manual prior to use. WARNING Indicates the possibility of serious or fatal injury (Note 1). -
Page 5: Safety Precautions
If smoke or any strange odor should disburse from this unit, turn the power off immediately and pull out the main power cord. Then contact Yamato Scientific. Neglecting this procedure can result in fire or electric shock. Never try repairing the unit yourself. - Page 6 Safety Information Safety Precautions If it begins to thunder… In the event of electrical storm turn off the main power. Neglecting this procedure can result in fire, electric shock or other troubles due to thunderbolts. In case of power failure… When the power is restored after a power failure, the unit resumes operation at the temperature previously set as if you turned off the unit.
-
Page 7: Hazardous Materials
Safety Information Hazardous Materials Hazardous material are listed below. Never use these materials as samples or heat media. Nitroglycol, Nitroglycerin, Nitrocellulose, and other explosive nitric esters. Trinitrobenzene, Trinitrotoluene, Picric acid, and other explosive Explosive Explosive nitro compounds. Substance Peracetic acid, Methyl ethyl ketone peroxide, Benzoyl peroxide, and other organic peroxides. -
Page 8: Bm110
3. Identification of Parts BM110 BM110 Thermometer Power Switch Power Lamp Temperature Dial Fuse Power Cable Thermometer Holder Sensor Heater... -
Page 9: Identification Of Parts
Identification of Parts BM210 BM210 Thermometer Power Switch Drain Plug Power Lamp Temperature Dial Fuse Power Cable Heater Thermometer Holder Sensor... -
Page 10: Sample : Combined With Re210
Identification of Parts Sample : Combined with RE210 Combination with RE210 Drawing 1 Drawing 2 According to the position or space to set the bath and the body, the arm jack can be set in the front (drawing 1)or on the right side (drawing 2) as shown above. -
Page 11: Sample : Combined With Re510
Identification of Parts Sample : Combined with RE510 Combination with RE510... -
Page 12: How To Operate
4. How to Operate How to operate Power Lamp Temperature Dial 1. Pour adequate water (3000ml for BM110, 5000ml for BM210) into the tank, and place a thermometer in the holder. Use distilled water. Deionized water should not be used. 2. -
Page 13: Maintenance
Troubleshooting Guide Situation Make Sure ● Check main power cord is connected firmly. The power lamp on the panel is not ● Check main input voltage. lit when the power switch is on. If you have any question, contact Yamato Scientific. -
Page 14: After Sale Service And Warranty
We can not accept any products or parts returned to us for repair or credit that is contaminated with or has been exposed to potentially infectious agents or radioactive materials. If you need repair, please call Yamato Scientific for a return authorization number. No product will be accepted without this number. -
Page 15: Replacement Parts
7. Replacement Parts Name of Parts Parts Number Specification Φ6.4×30 250V 4A (for BM110) Fuse 2-10-006-0002 Φ6.4×30 250V 7A (for BM210) Fuse 2-10-006-0003 Thermometer 5-02-001-6016 (for BM110/210) Drain Plug 7-32-001-6005 (for BM210) O Ring 4-21-002-6020 P12.5 Baiton (for BM210) Thermal Fuse 2-10-003-0010 (for BM110/210) Heater Element... -
Page 16: Wiring Diagram
8. Wiring Diagram BM110 BM210 ① ⑤ ⑥ AC230V ② ③ ④ ⑦ Symbol Name of Parts Symbol Name of Parts Fuse Service Outlet Heater Power Switch Thermal Fuse Thermoregulator Power Lamp Terminal...
