6.0 Hardware
6.1. ZDK Board (RZB-CC16C-ZDK)
Note:The RZB-CC16C-ZDK board is referred to as RZB-CC28-BRD on the board's silkscreen and
schematic drawing.

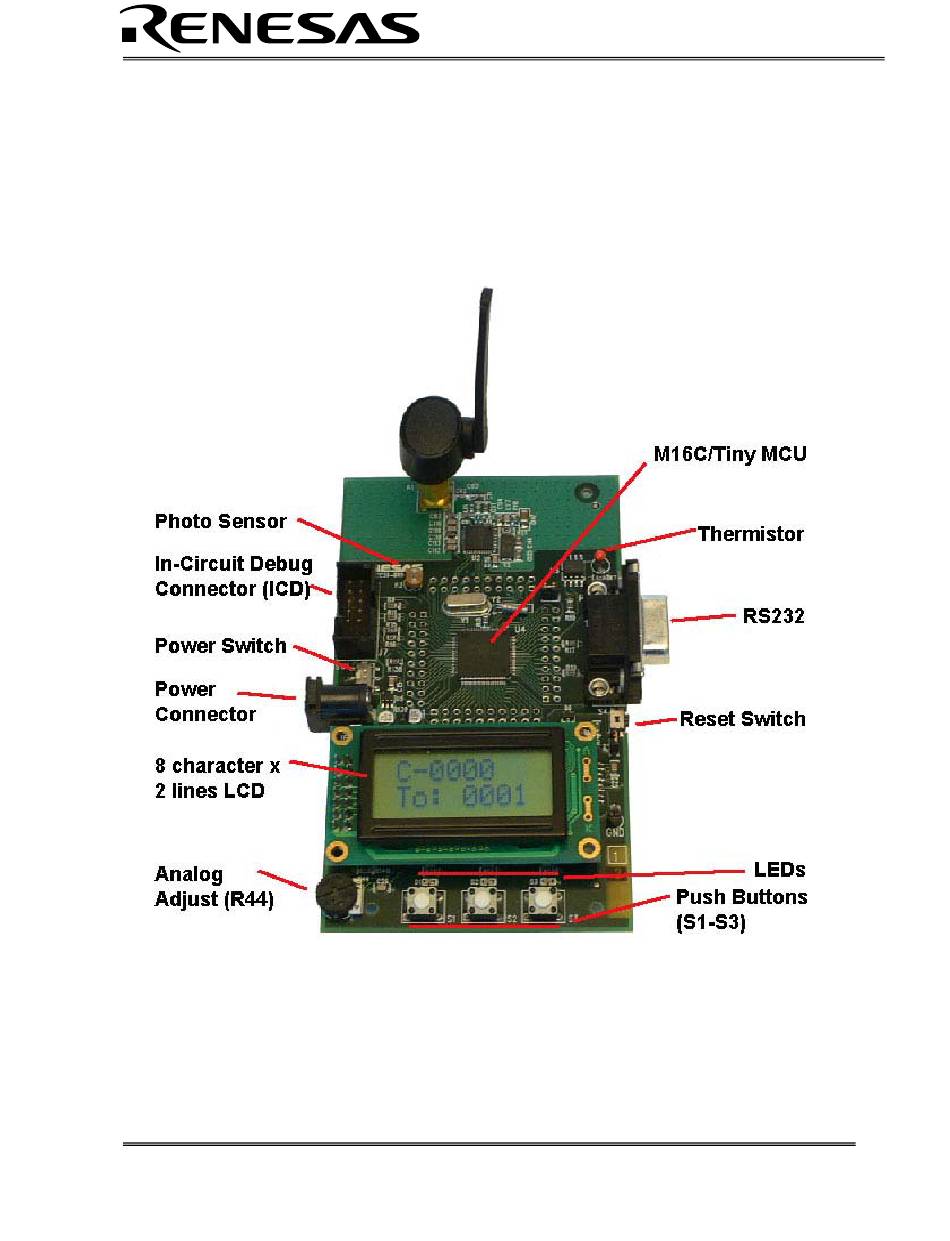

Figure 5-1 shows the RZB-CC16C-ZDK Board with major components identified.
Figure 6-1: RZB-CC16C-ZDK Board
RZB-CC16C-ZDK User's Manual Rev 1.1
16/ 39
December 2006
