4.0 System Connectivity

The following lists the hardware and software products required for using the RZB-CC16C-ZDK ZigBee
Demonstration Kit.
•
Host Computer (supplied by user)
•
Three RZB-CC16C-ZDK Boards
•
Three battery packs with AA batteries
•
RF Sniffer USB Dongle
•
RF Sniffer software and USB driver
ZigBee
Coordinator
Optional (only required if you want to update firmware and/or develop code).
•
In-Circuit Debugger and Programmer (ICD)
•
Mini USB cable for ICD
•
2×5 header target cable for ICD
•
Software Tools (HEW IDE, NC30 Compiler/Linker, FoUSB Programmer)
Figure 4-2 shows an ICD unit connected to a PC via USB and to a ZDK board via 2×5-pin ribbon cable.
RZB-CC16C-ZDK User's Manual Rev 1.1
ZigBee
Router
RF Sniffer
USB Dongle

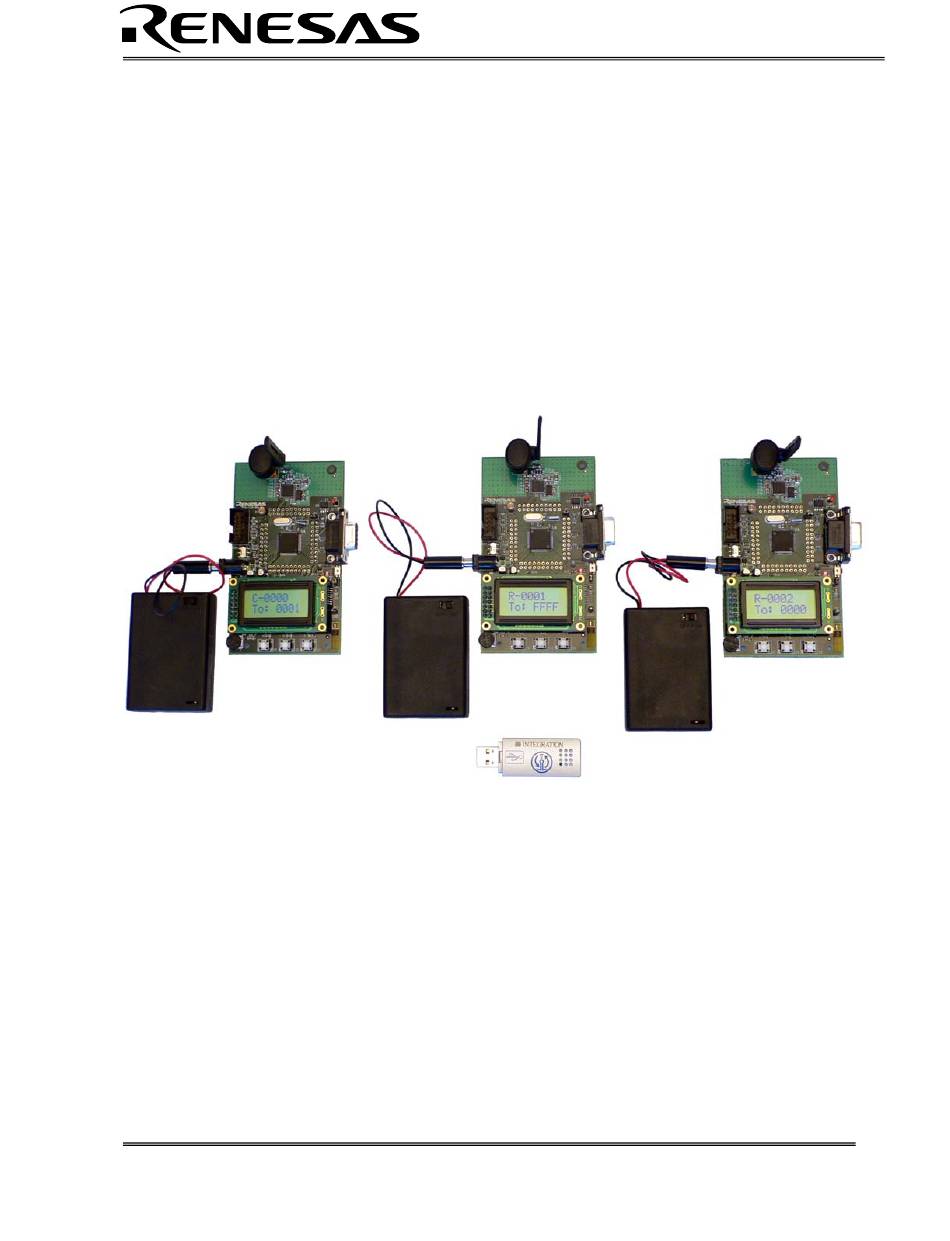

Figure 4.1: ZigBee Demo Setup
