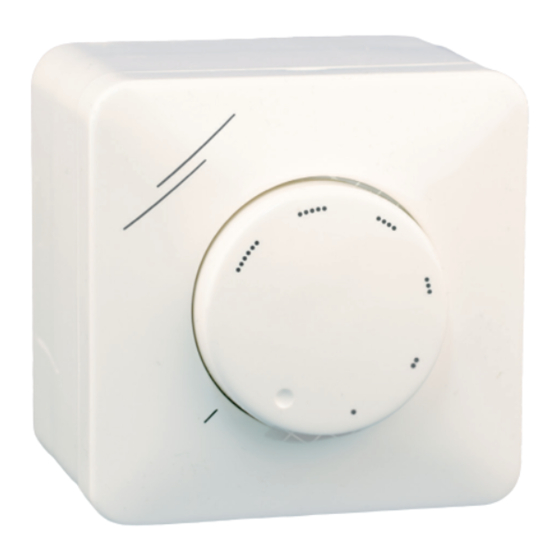

- Page 1 ElEcTronic fan spEEd conTrollEr Mounting and operating instructions...
- Page 2 ElEcTronic fan spEEd conTrollEr Table of contents SAFETY AND PRECAUTIONS PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAMS WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS OPERATING INSTRUCTIONS TRANSPORT AND STOCK KEEPING INFORMATION WARRANTY INFORMATION AND RESTRICTIONS MAINTENANCE MIW-MTX-EN-000 - 02 / 12 / 2015 2 - 7...
- Page 3 ElEcTronic fan spEEd conTrollEr SAFETY AND PRECAUTIONS Read all information, the datasheet, mounting instructions and wiring scheme before working with the product. For personal and equipment safety, and for optimum product performance, make sure you entirely understand the contents before installing, using, or maintaining this product. For safety and licensing (CE) reasons, unauthorised conversion and / or modifications to the product are not permitted.
- Page 4 Several motors can be connected as long as the current limit is not exceeded. ARTICLE CODES OuTpuT REgulATION FROM MINIMuM TO MAXIMuM Code Current range, [A] Fuse, [A] (5*20 mm) MTY-0-05-AT 0,05—0,5 F-0,63 A-H MTY-0-15-AT 0,1—1,5 F-2,00 A-H MTY-0-25-AT 0,2—2,5...
- Page 5 ElEcTronic fan spEEd conTrollEr OPERATIONAL DIAGRAMS MTY-0-XX-AT MTX-0-XX-AT Vout, [VAC] Vout, [VAC] Maximum Maximum speed speed Minimum Minimum speed speed Position Position External potentiometer value External potentiometer value OFF Switch ON OFF Switch ON WIRING AND CONNECTIONS power supply (230 VAC ± 10 % / 50 Hz) unregulated output (230 VAC / max.
- Page 6 ElEcTronic fan spEEd conTrollEr Mount the internal enclosure to the wall according to the mounting dimensions shown in Fig. 2. Fig. 2 Mounting dimensions - inset mounting Turn on the mains voltage and controller. Adjust the minimal speed and turn off the controller. Mount the cover with the nut.
- Page 7 ElEcTronic fan spEEd conTrollEr OPERATING INSTRUCTIONS The controller is to be used only with voltage controllable fans / motors. You can connect several motors to the controller as long as the current limit is not exceeded. The motor used should be protected internally against overheating. The trimmer is adjusted so that the motor does not stop due to mains voltage variations.
