Line-up Mounting

Use the back panel of the enclosure, or the enclosed hole pattern drawing as a template for marking the locations
of mounting holes as shown in
PRL-779 List 1E
Figure 4.

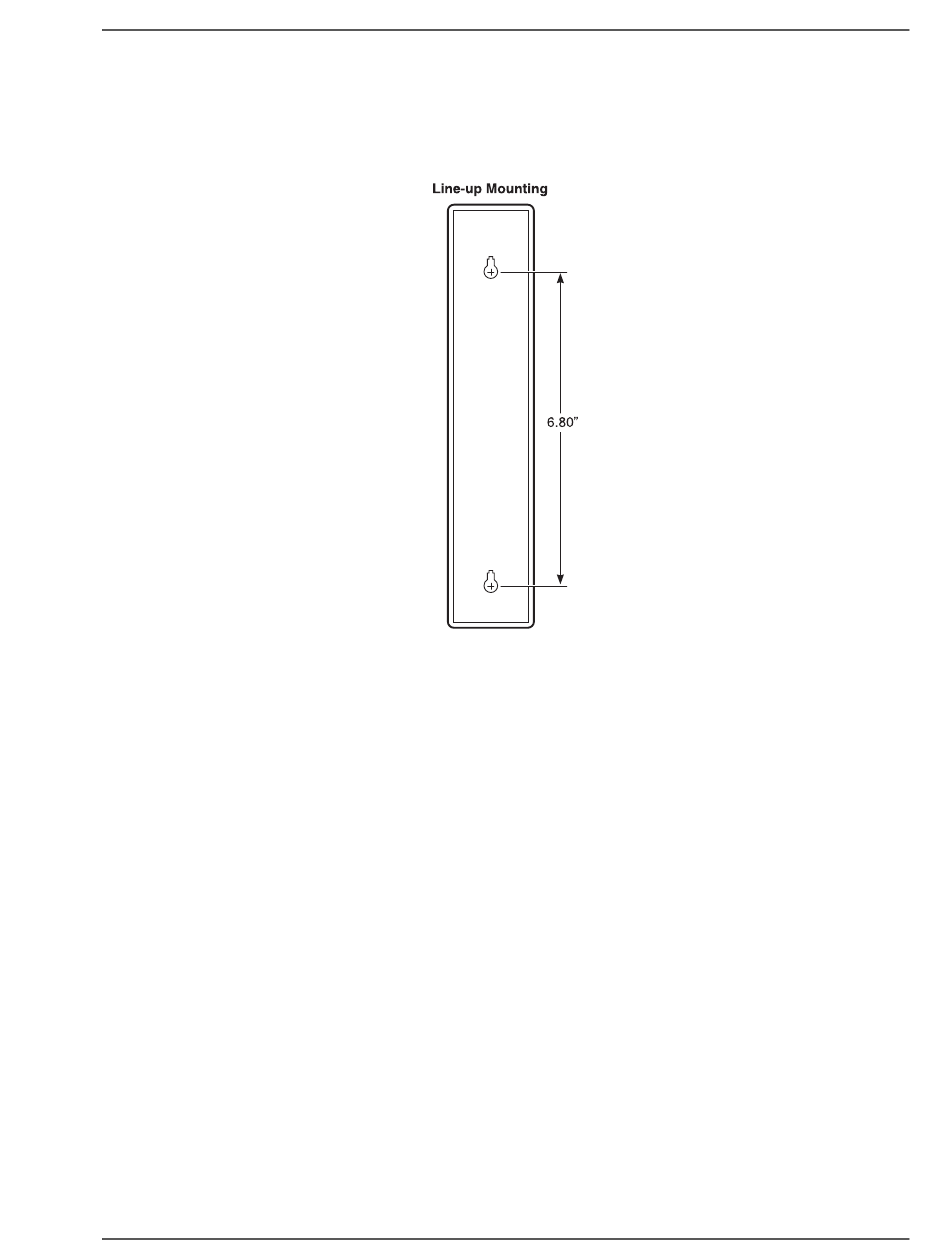

Figure 4. Line-up Mounting Dimensions
