W RT
IRING THE
Wiring the RT consists of three major steps:
•
attaching the frame ground wire
•
attaching the HDSL Tip and Ring wires
•
attaching the subscriber line wires
Before setting up the equipment, select a location that will allow sufficient access to wiring connections
from the telco access door.
During installation, refer to the RT Reference label (see
Reference label identifies the Frame Ground and HDSL Tip and Ring, and the Subscriber Line wires.
PRL-779 List 1E
Figure 6) affixed inside the Telco Access door. The

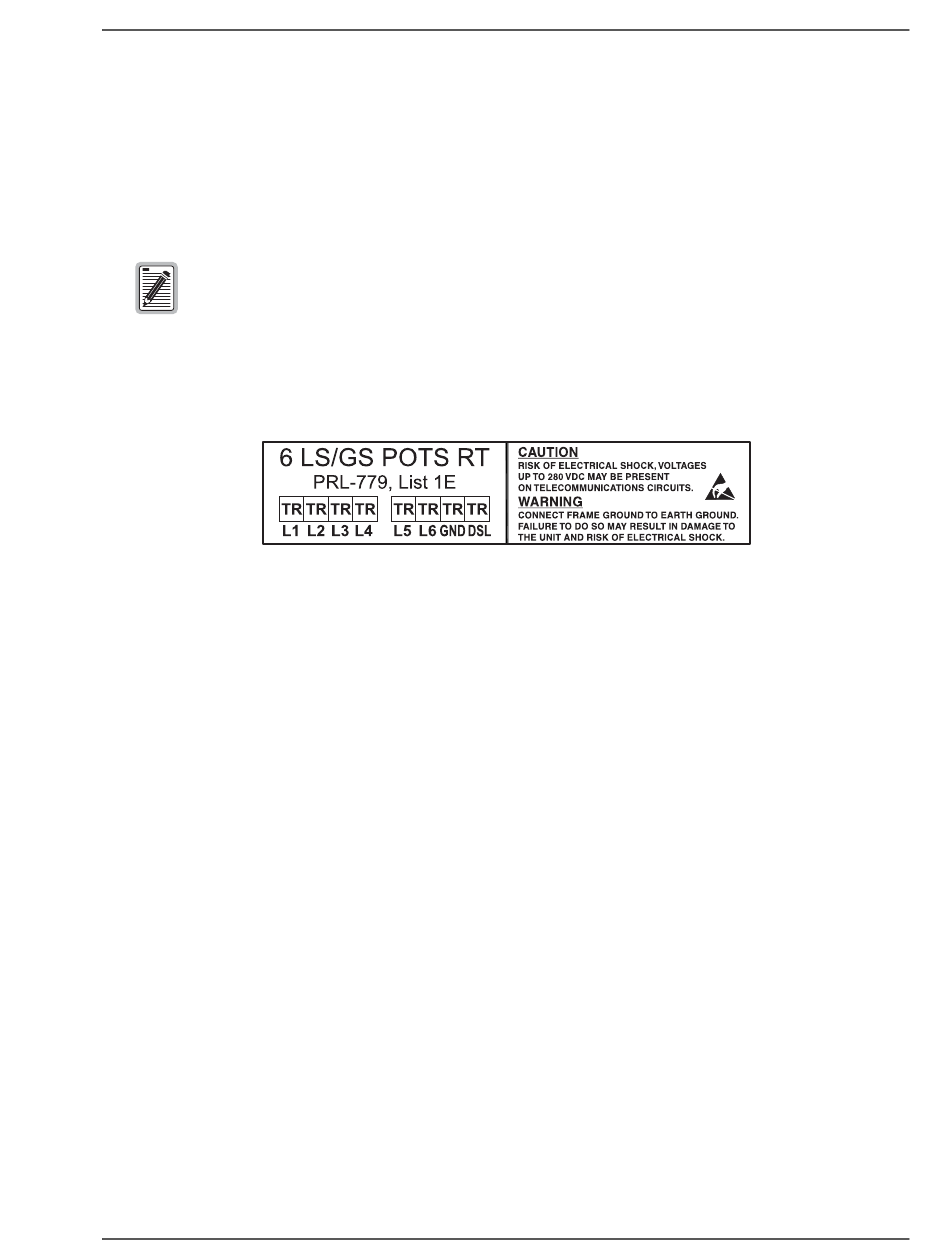

Figure 6. Reference Label
