Customer Service: 800-367-2810
Online: www.ballarddesigns.com

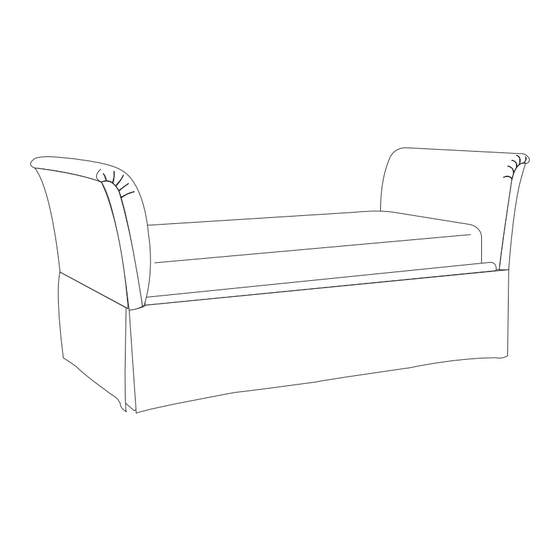

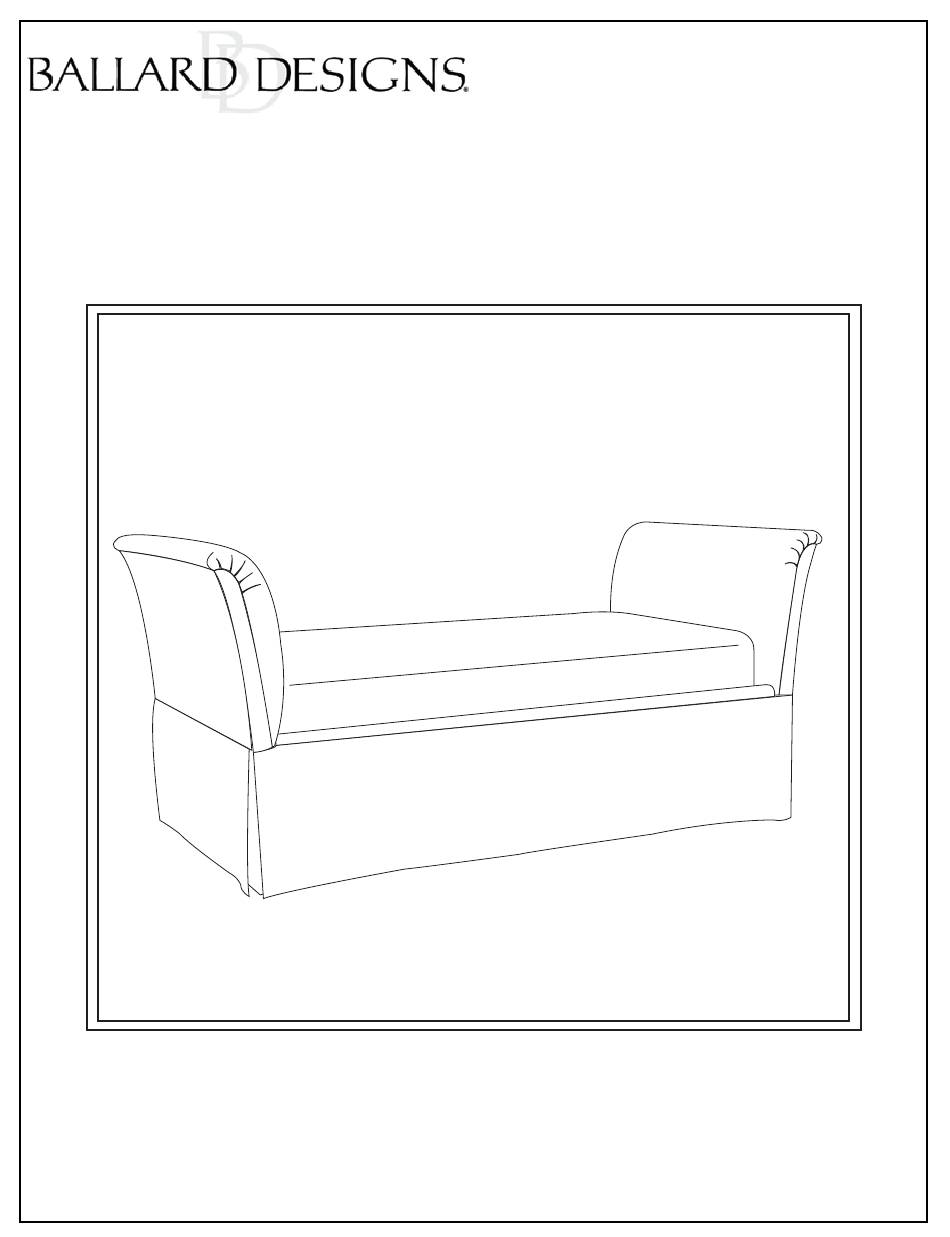

PRODUCT NAME: Diandra Daybed with & without Trundle
ITEM NUMBER: UM011; UM012
DIMENSIONS OF ITEM ASSEMBLED: 42 3/4"H x 91 3/4"W X 43"D
PRODUCTS ARE NOT INTENDED
MADE IN USA
FOR COMMERCIAL USE.
Page 1 of 3
Advertisement
Related Manuals for Ballard Designs Diandra UM011
Summary of Contents for Ballard Designs Diandra UM011
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Diandra Daybed with & without Trundle ITEM NUMBER: UM011; UM012 DIMENSIONS OF ITEM ASSEMBLED: 42 3/4”H x 91 3/4”W X 43”D PRODUCTS ARE NOT INTENDED MADE IN USA FOR COMMERCIAL USE. Page 1 of 3...
- Page 2 NOTE: It is best to put this bed together in the space where you will use it. Ltr. Qty. Hardware Included TOOLS NEEDED: -2 Person assembly. -Screwdriver required. Screws Ltr. Qty. Components Arms (B) Side Rails (C) Spring Frame (D) Customer Service: 800-367-2810 Page 2 of 3 Online: www.ballarddesigns.com...
- Page 3 STEP 1: Attach the Arms (B) to the Side Rails (C). Be sure the hook is fully engaged before continuing with the assembly. Then Velcro the apron to the Arms. STEP 2: Place the Spring Frame (D) onto the ledges on inside of the Side Rails (C). Then using a screwdriver and the Screws (A), attach the Spring Frame (D) to the Side Rails (C) in all 4 corners.
