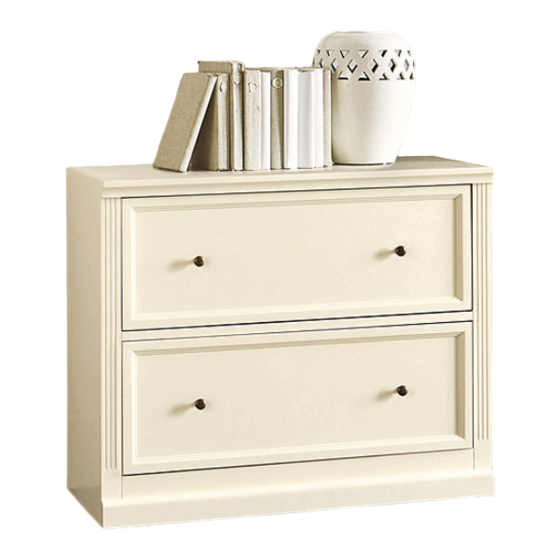

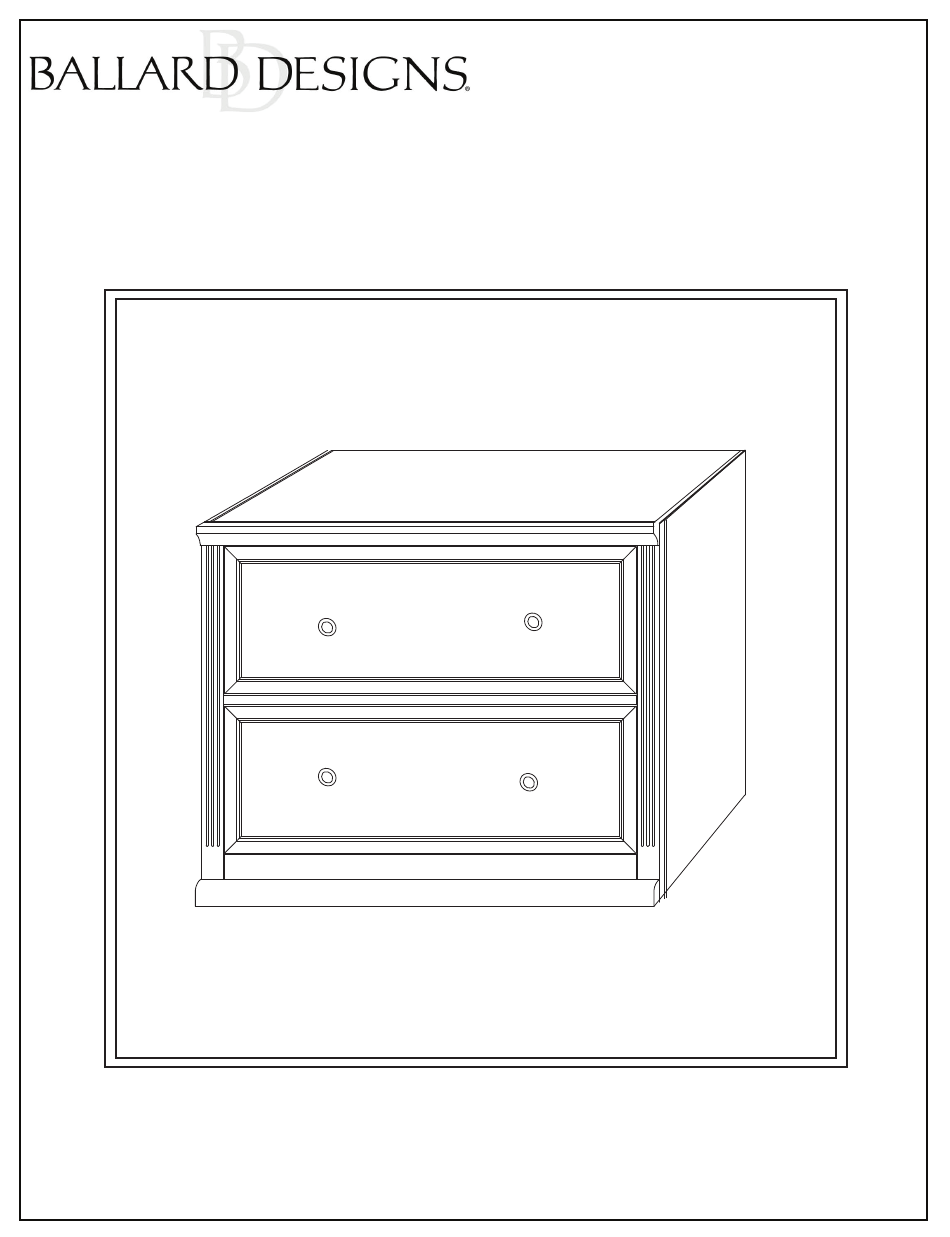

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Tuscan File Console ITEM NUMBER: MO227 ASSEMBLED DIMENSIONS : 30”H x 36”W x 17 1/4”D PRODUCTS ARE NOT INTENDED IMPORTED FOR COMMERCIAL USE. UPDATED: 6-13-2019 Page 1 of 4...
- Page 2 TOOLS NEEDED: Ltr. Qty. Hardware Included -Two person assembly suggested. File Rod Remove all parts, hardware and protective packaging from carton and carefully arrange on a clean, Anti-Tip Kit - Part B level, padded surface. NOTE: To avoid accidentally discarding small parts or hardware, retain all carton contents until assembly and installation are complete.
- Page 3 STEP 1: Locate and remove File Rods (A) from underside of console and insert in notches on inside drawer edge as shown. STEP 2: If necessary, Console may be leveled by adjusting Rotary Levelers located under each corner. Turn clockwise/counterclocwise until level. Customer Service: 800-367-2810 Page 3 of 4 Online: www.ballarddesigns.com...
- Page 4 NOTE: To prevent accidental tipping of the Console, both drawers are equipped with safety locks which permit only one drawer to be open at a time. ANTI-TIP KIT INSTALLATION (PART B): Ltr. Qty. Hardware Included Small Screw Large Screw Bracket Retention Belt Attach 2 Brackets (C) to the back of the Console with the Small Screws (A) through the smaller holes.
