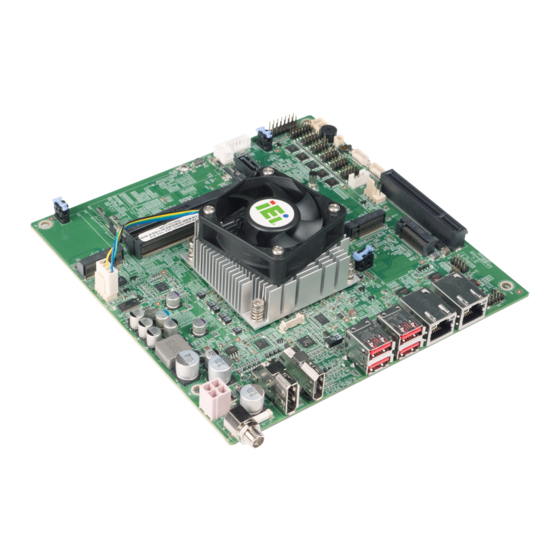

IEI Technology KINO-TGL-U User Manual

Mini-itx sbc with 11th gen intel® core™ i7/i5/i3 or celeron® on-board cpu, hdmi, dp, idpm, dual 2.5gbe, usb 3.2 gen 2, sata 6gb/s, m.2, rs-232/422/485, hd audio, and rohs
Hide thumbs Also See for KINO-TGL-U:
Table of Contents

Advertisement

Quick Links

Download this manual
KINO-TGL-U SBC
KINO-TGL-U CPU Card
MODEL:
KINO-TGL-U
th
Mini-ITX SBC with 11
Gen Intel® Core™ i7/i5/i3 or Celeron®
On-board CPU, HDMI, DP, iDPM, Dual 2.5GbE, USB 3.2 Gen 2,
SATA 6Gb/s, M.2, RS-232/422/485, HD Audio, and RoHS
User Manual
Page I
Rev. 1.00 - July 8, 2022
[MODEL NAME]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINO-TGL-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology KINO-TGL-U

Summary of Contents for IEI Technology KINO-TGL-U

  • Page 1 KINO-TGL-U SBC KINO-TGL-U CPU Card MODEL: KINO-TGL-U Mini-ITX SBC with 11 Gen Intel® Core™ i7/i5/i3 or Celeron® On-board CPU, HDMI, DP, iDPM, Dual 2.5GbE, USB 3.2 Gen 2, SATA 6Gb/s, M.2, RS-232/422/485, HD Audio, and RoHS User Manual Page I Rev.
  • Page 2 KINO-TGL-U SBC Revision Date Version Changes July 8, 2022 1.00 Initial release Page II [MODEL NAME]...
  • Page 3 KINO-TGL-U SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 KINO-TGL-U SBC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    PTIONAL TEMS 3 CONNECTORS ......................14 3.1 P ..............15 ERIPHERAL NTERFACE ONNECTORS 3.1.1 KINO-TGL-U Layout ..................15 3.1.2 Peripheral Interface Connectors ..............16 3.1.3 External Interface Panel Connectors ............... 17 3.2 I ..............17 NTERNAL ERIPHERAL ONNECTORS 3.2.1 Audio Connector ....................17 3.2.2 Battery Connector ....................
  • Page 6 KINO-TGL-U SBC 3.2.11 Memory Slots ....................29 3.2.12 PCI Express x8 Slot ..................30 3.2.13 M.2 A-key Slot ....................31 3.2.14 M.2 M-key Slot ....................33 3.2.15 Power Button ....................35 3.2.16 RS-232 Serial Port Connectors ..............36 3.2.17 RS-422/485 Serial Port Connector ..............37 3.2.18 SATA 6Gb/s Drive Connectors ...............
  • Page 7 KINO-TGL-U SBC 4.7.1 RS-232 Cable Connection ................59 4.7.2 SATA Drive Connection ................... 60 5 SOFTWARE DRIVERS ....................62 5.1 A ....................63 VAILABLE RIVERS 5.2 D ....................63 RIVER OWNLOAD A REGULATORY COMPLIANCE ................65 B PRODUCT DISPOSAL ....................67 C DIGITAL I/O INTERFACE ..................
  • Page 8 KINO-TGL-U SBC List of Figures Figure 1-1: KINO-TGL-U ......................... 2 Figure 1-2: Connectors (Front Side) ..................... 4 Figure 1-3: Dimensions (mm) ......................5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Connector and Jumper Locations ................15 Figure 3-2: Audio Connector Location ..................18 Figure 3-3: Battery Connector Location ..................19...
  • Page 9 KINO-TGL-U SBC Figure 3-28: HDMI Connector Pinout Locations ................47 Figure 3-29: 2.5GbE LAN Connector ..................47 Figure 3-30: Power Jack ......................48 Figure 4-1: SO-DIMM Installation ....................53 Figure 4-2: Inserting the M.2 Module into the Slot at an Angle..........54 Figure 4-3: Securing the M.2 Module ..................54 Figure 4-4: AT/ATX Mode Select Switch Location ..............56...
  • Page 10 KINO-TGL-U SBC List of Tables Table 1-1: KINO-TGL-U Model Variations ..................3 Table 1-2: Technical Specifications ....................9 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: Audio Connector Pinouts ..................18 Table 3-4: Battery Connector Pinouts ..................20 Table 3-5: DC-IN Power Connector Pinouts ................20...
  • Page 11 KINO-TGL-U SBC Table 4-3: USB Power Selection BIOS Options .................58 Page XI [MODEL NAME]...

  • Page 12: Introduction

    KINO-TGL-U SBC Chapter Introduction Page 1...

  • Page 13: Ntroduction

    KINO-TGL-U SBC 1.1 Introduction Figure 1-1: KINO-TGL-U The KINO-TGL-U series is a Mini-ITX form factor single bard computer. It has an on-board Core™ i7/i5/i3 or Celeron ® ® generation Intel processor, and supports two 260-pin 3200 MHz DDR4 SDRAM SO-DIMM slots with up to 64.0 GB of memory.

  • Page 14: Model Variations

    KINO-TGL-U SBC 1.2 Model Variations The model variations of the KINO-TGL-U series are listed below. Model No. Processor Intel® Core™ i7-1185G7E KINO-TGL-U-i7-R10 (up to 4.8 GHz, quad-core, 12 MB cache, TDP=28/15/12 W) Intel® Core™ i5-1145G7E KINO-TGL-U-i5-R10 (up to 4.4 GHz, quad-core, 8 MB cache, TDP=28/15/12 W) Intel®...

  • Page 15: Connectors

    KINO-TGL-U SBC 1.4 Connectors The connectors on the KINO-TGL-U are shown in the figure below. Figure 1-2: Connectors (Front Side) Page 4...

  • Page 16: Dimensions

    KINO-TGL-U SBC 1.5 Dimensions Figure 1-3 shows the dimensions of the KINO-TGL-U. Figure 1-3: Dimensions (mm) Page 5...

  • Page 17: Data Flow

    KINO-TGL-U SBC 1.6 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 18: Technical Specifications

    KINO-TGL-U SBC 1.7 Technical Specifications KINO-TGL-U technical specifications are listed below. Specification KINO-TGL-U ® generation Intel mobile Tiger Lake-UP3 on-board processor:  Core™ i7-1185G7E ® Intel (up to 4.8 GHz, quad-core, 12 MB cache, TDP=28/15/12 W)  Core™ i5-1145G7E ®...
  • Page 19 KINO-TGL-U SBC Specification KINO-TGL-U Audio Connector 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin) Ethernet 2 x RJ-45 2.5GbE port Serial Ports 1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC) 5 x RS-232 by 10-pin (2x5) header USB Ports 4 x USB 3.2 Gen 2 (10Gb/s) Type-A on rear I/O...

  • Page 20: Table 1-2: Technical Specifications

    KINO-TGL-U SBC Specification KINO-TGL-U Safety CE, FCC Physical Specifications Dimensions 170 mm x 170 mm Weight GW/NW 900 g / 400 g Table 1-2: Technical Specifications Page 9...

  • Page 21: Unpacking

    KINO-TGL-U SBC Chapter Unpacking Page 10...

  • Page 22: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the KINO-TGL-U is unpacked, please do the following:  Follow the antistatic guidelines above.

  • Page 23: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-TGL-U was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 24: Optional Items

    KINO-TGL-U SBC 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image RS-232 cable, 200 mm, p=2.0 mm (P/N: 32205-002700-200-RS) SATA power cable, MOLEX 8981-4M to SATA15P, 150mm (P/N: 32102-000100-200-RS) Dual-port USB cable, 210mm, p=2.0 (P/N: 32001-008600-200-RS) Realtek ALC888S 7.1 Channel HD Audio peripheral...

  • Page 25: Connectors

    KINO-TGL-U SBC Chapter Connectors Page 14...

  • Page 26: Peripheral Interface Connectors

    KINO-TGL-U SBC 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 KINO-TGL-U Layout The figures below show all the connectors and jumpers. Figure 3-1: Connector and Jumper Locations Page 15...

  • Page 27: Peripheral Interface Connectors

    KINO-TGL-U SBC 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label Audio connector 10-pin header IAUDIO Battery connector 2-pin wafer BAT1 DC-IN power connector 4-pin Molex Digital I/O connector 14-pin header DIO1...

  • Page 28: External Interface Panel Connectors

    USB 3.2 Gen 2 connectors USB 3.2 Gen 2 Type-A USB_CON1,USB_CON2 Table 3-2: Rear Panel Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the KINO-TGL-U. 3.2.1 Audio Connector CN Label: IAUDIO CN Type: 10-pin header, p=2.00 mm...

  • Page 29: Figure 3-2: Audio Connector Location

    KINO-TGL-U SBC CN Pinouts: See Table 3-3 The audio connector is connected to IEI AC-KIT-888S Audio Module including speakers and microphones for the input and output of audio signals to and from the system. Figure 3-2: Audio Connector Location PIN NO.

  • Page 30: Battery Connector

    The battery connector is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the KINO-TGL-U is installed. Figure 3-3: Battery Connector Location...

  • Page 31: Dc-In Power Connector

    KINO-TGL-U SBC Description VBAT+ Table 3-4: Battery Connector Pinouts 3.2.3 DC-IN Power Connector CN Label: CN Type: 4-pin Molex, p=4.2 mm CN Location: See Figure 3-4 CN Pinouts: See Table 3-5 The connector supports 9 V ~ 36 V power supply.

  • Page 32: Digital I/O Connector

    KINO-TGL-U SBC 3.2.4 Digital I/O Connector CN Label: DIO1 CN Type: 14-pin header, p=2.00 mm CN Location: See Figure 3-5 CN Pinouts: See Table 3-6 The 12-bit digital I/O connector provides programmable input and output for external devices. Figure 3-5: Digital I/O Connector Location PIN NO.

  • Page 33: Idpm Slot

    KINO-TGL-U SBC 3.2.5 iDPM Slot CN Label: IDPM CN Type: IDPM 3040 CN Location: See Figure 3-6 CN Pinouts: See Table 3-7 The IDPM connector supports IEI eDP/LVDS/VGA module. Figure 3-6: iDPM Connector Location Page 22...
  • Page 34 KINO-TGL-U SBC IDPM: IEI IDPM Slot (for IEI eDP/LVDS/VGA Module) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V +3.3V +3.3V +3.3V Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key +3.3VS DISPLAY_DETECT_PIN +3.3VS DISPLAY_DETECT_PIN +3.3VS...

  • Page 35: Fan Connector, Cpu

    KINO-TGL-U SBC +V5S +V5S +V5S +12VA +12VA +12VA +12VA Table 3-7: IDPM Connector Pinouts 3.2.6 Fan Connector, CPU CN Label: CPU/FAN1 CN Type: 4-pin wafer, p=2.54 mm CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The CPU fan connector attaches to a CPU cooling fan.

  • Page 36: Fan Connector, System

    KINO-TGL-U SBC Description +12V Rotation Signal Table 3-8: CPU Fan Connector Pinouts 3.2.7 Fan Connector, System CN Label: SYS/FAN1 CN Type: 4-pin wafer, p=2.54 mm CN Location: See Figure 3-8 CN Pinouts: See Table 3-9 The system fan connector attaches to a system cooling fan.

  • Page 37: Front Panel Connector

    KINO-TGL-U SBC 3.2.8 Front Panel Connector CN Label: F_PANEL1 CN Type: 14-pin wafer, p=2.54 mm CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 The front panel connector connects to the power button, reset button, speaker, power LED indicator and HDD LED indicator on the system front panel.

  • Page 38: Lan Led Connectors

    KINO-TGL-U SBC CN Label: JI2C1 CN Type: 4-pin wafer, p=1.25 mm CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 The I C connector is used to connect I C-bus devices to the motherboard. Figure 3-10: I C Connector Location...

  • Page 39: Figure 3-11: Lan Led Connector Locations

    KINO-TGL-U SBC CN Pinouts: See Table 3-12 The LAN LED connectors connect to the LAN link LEDs on the system. Figure 3-11: LAN LED Connector Locations Description +3.3VLAN LAN_LED_LINK#_ACT Table 3-12: LAN LED Connector Pinouts Page 28...

  • Page 40: Memory Slots

    KINO-TGL-U SBC 3.2.11 Memory Slots CN Label: DIMM1, DIMM2 CN Type: 260-pin DDR4 SO-DIMM slot CN Location: See Figure 3-12 The memory slots accept DDR4 SO-DIMM. Figure 3-12: Memory Slot Locations Page 29...

  • Page 41: Pci Express X8 Slot

    KINO-TGL-U SBC CAUTION: For dual channel configuration, always install two identical memory modules that feature the same capacity, timings, voltage, number of ranks and the same brand. 3.2.12 PCI Express x8 Slot CN Label: PCIE1 CN Type: PCIe x8 slot...

  • Page 42: A-Key Slot

    KINO-TGL-U SBC 3.2.13 M.2 A-key Slot CN Label: M2_AE1 CN Type: M.2 A-key 2230 CN Location: See Figure 3-14 CN Pinouts: See Table 3-13 The M.2 slot is keyed in the AE position and accepts 2230 size of M.2 modules. The M.2 slot supports USB 2.0 and PCIe x1 interfaces only.

  • Page 43: Table 3-13: M.2 A-Key Slot Pinouts

    KINO-TGL-U SBC Description Description PCIE_TX+ PCIE_TX- CL_RST# CL_DATA PCIE_RX+ CL_CLK PCIE_RX- PCIE_CLK+ PCIE_CLK- BUF_PLT_RST# Pull up +3.3V Pull up +3.3V +3.3V +3.3V Table 3-13: M.2 A-key Slot Pinouts Page 32...

  • Page 44: M-Key Slot

    KINO-TGL-U SBC 3.2.14 M.2 M-key Slot CN Label: M2_M1 CN Type: M.2 M-key 2242/2280 CN Location: See Figure 3-15 CN Pinouts: See Table 3-14 The M.2 slot is keyed in the M position and provides two positions for the mounting screw, accepting 2242 and 2280 sizes of M.2 modules.

  • Page 45: Table 3-14: M.2 M-Key Slot Pinouts

    KINO-TGL-U SBC Description Description PCIE_RXN1 PCIE_RXP1 PCIE_TXN1 PCIE_TXP1 DEVSLP PCIE_RXN0 PCIE_RXP0 PCIE_TXN0 PCIE_TXP0 PERST# CLKREQ REFCLKN PEWAKE REFCLKP Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PEDET +3.3V +3.3V +3.3V Table 3-14: M.2 M-key Slot Pinouts...

  • Page 46: Power Button

    KINO-TGL-U SBC 3.2.15 Power Button CN Label: PWR_SW1 CN Type: Push button CN Location: See Figure 3-16 The on-board power button controls system power. Figure 3-16: Power Button Location Page 35...

  • Page 47: Rs-232 Serial Port Connectors

    KINO-TGL-U SBC 3.2.16 RS-232 Serial Port Connectors CN Label: COM1, COM2, COM3, COM4,COM5 CN Type: 10-pin header, p=2.00 mm CN Location: See Figure 3-17 CN Pinouts: See Table 3-15 The serial connector provides RS-232 connection. Figure 3-17: RS-232 Serial Port Connector Locations PIN NO.

  • Page 48: Rs-422/485 Serial Port Connector

    KINO-TGL-U SBC 3.2.17 RS-422/485 Serial Port Connector CN Label: COM6 CN Type: 4-pin header, p=2.00 mm CN Location: See Figure 3-18 CN Pinouts: See Table 3-16 NOTE: These pins are shared with those on the main serial port. Use either the pins on the main connector, or on this connector, but not both.

  • Page 49: Sata 6Gb/S Drive Connectors

    KINO-TGL-U SBC 3.2.18 SATA 6Gb/s Drive Connectors CN Label: SATA1, SATA2 CN Type: 7-pin SATA connector CN Location: See Figure 3-19 The SATA 6Gb/s drive connector is connected to a SATA 6Gb/s drive. The SATA 6Gb/s drive transfers data at speeds as high as 6Gb/s.

  • Page 50: Sata Power Connectors

    KINO-TGL-U SBC 3.2.19 SATA Power Connectors CN Label: SATA_PWR1, SATA_PWR2 CN Type: 2-pin wafer, p=2.00 mm CN Location: See Figure 3-20 CN Pinouts: See Table 3-17 The SATA power connector provides +5 V power output to the SATA connector. Figure 3-20: SATA Power Connector Locations...

  • Page 51: Jsmbus Connector

    KINO-TGL-U SBC 3.2.20 JSMBus Connector CN Label: JSMB1 CN Type: 4-pin wafer, p=1.25 mm CN Location: See Figure 3-21 CN Pinouts: See Table 3-18 The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-21: SMBus Connector Location...

  • Page 52: Spi Flash Connector, Bios

    KINO-TGL-U SBC 3.2.21 SPI Flash Connector, BIOS CN Label: JBIOS1 CN Type: 6-pin wafer, p=1.25 mm CN Location: See Figure 3-22 CN Pinouts: See Table 3-19 The 6-pin SPI Flash connector is used to flash the BIOS. Figure 3-22: SPI Flash Connector Location Description +3.3VA...

  • Page 53: Flash Ec Rom Connector

    KINO-TGL-U SBC 3.2.22 Flash EC ROM Connector CN Label: JEC2 CN Type: 8-pin wafer, p=1.27 mm CN Location: See Figure 3-23 CN Pinouts: See Table 3-20 The Flash EC ROM connector is used to flash the EC ROM. Figure 3-23: SPI Flash Connector Location PIN NO.

  • Page 54: Ec Debug Connector

    KINO-TGL-U SBC 3.2.23 EC Debug Connector CN Label: DEBUG_SPI1 CN Type: 6-pin wafer, p=1.25 mm CN Location: See Figure 3-24 CN Pinouts: See Table 3-21 The DEBUG_SPI1 connector is used for EC debug (with SPI protocol). Figure 3-24: EC debug Connector Location PIN NO.

  • Page 55: Internal Usb 2.0 Connector

    KINO-TGL-U SBC 3.2.24 Internal USB 2.0 Connector CN Label: USB2_CN1 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-25 CN Pinouts: See Table 3-22 The Internal USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB 2.0 ports.

  • Page 56: External Peripheral Interface Connector Panel

    KINO-TGL-U SBC 3.3 External Peripheral Interface Connector Panel Figure 3-26 shows the KINO-TGL-U external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:  2 x 2.5GbE connector  1 x HDMI connector  1 x DP connector ...

  • Page 57: Hdmi Connector

    KINO-TGL-U SBC Description Description LANE1N AUXP LANE2P AUXN LANE2N LANE3P Table 3-23: DP Connector Pinouts Figure 3-27: DP Connector Pinout Locations 3.3.2 HDMI Connector CN Label: HDMI1 CN Type: HDMI connector CN Location: See Figure 3-26 CN Pinouts: See Table 3-24 The HDMI connector can connect to HDMI devices.

  • Page 58: Lan Connectors

    KINO-TGL-U SBC Description Description HDMI_SCL HDMI_SDA HDMI_HPD HDMI_GND HDMI_GND HDMI_GND HDMI_GND Table 3-24: HDMI Connector Pinouts Figure 3-28: HDMI Connector Pinout Locations 3.3.3 LAN Connectors CN Label: LAN1, LAN2 CN Type: RJ-45 CN Location: See Figure 3-26 CN Pinouts: See Table 3-25 and Figure 3-29 The 2.5GbE LAN connector connects to a local network.

  • Page 59: Power Connector (Power Adapter)

    KINO-TGL-U SBC Description Description MDIA3- MDIA2+ MDIA3+ MDIA2- MDIA2- MDIA0- MDIA1- MDIA0+ Table 3-25: 2.5GbE LAN Pinouts Description Description on: linked off: 100 Mb/s blinking: data is being green: 2.5 Gb/s sent/received orange: 1 Gb/s Table 3-26: Connector LEDs 3.3.4 Power Connector (Power Adapter)

  • Page 60: Usb 3.2 Gen 2 Connectors

    CN Pinouts: See Table 3-27 The KINO-TGL-U has four external USB 3.2 Gen 2 ports. The USB connector can be connected to a USB 2.0 or USB 3.2 device. The pinouts of USB 3.2 Gen 2 connectors are shown below.

  • Page 61: Installation

    KINO-TGL-U SBC Chapter Installation Page 50...

  • Page 62: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-TGL-U. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-TGL-U or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 63  Turn all power to the KINO-TGL-U off: When working with the KINO-TGL-U, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the KINO-TGL-U DO NOT: ...

  • Page 64: So-Dimm Installation

    KINO-TGL-U SBC 4.3 SO-DIMM Installation To install an SO-DIMM, please follow the steps below and refer to Figure 4-1. Figure 4-1: SO-DIMM Installation Step 1: Locate the SO-DIMM socket. Place the board on an anti-static mat. Step 2: Align the SO-DIMM with the socket. Align the notch on the memory with the notch on the memory socket.

  • Page 65: Figure 4-2: Inserting The M.2 Module Into The Slot At An Angle

    KINO-TGL-U SBC Figure 4-2: Inserting the M.2 Module into the Slot at an Angle Step 3: Secure the M.2 module with an M2*3 retention screw (Figure 4-3). Figure 4-3: Securing the M.2 Module Page 54...

  • Page 66: System Configuration

    KINO-TGL-U SBC 4.5 System Configuration The system configuration is controlled by buttons, jumpers and switches. The system configuration should be performed before installation. 4.5.1 AT/ATX Mode Select Switch CN Label: J_ATX_AT1 CN Type: Switch CN Location: See Figure 4-4 CN Settings: See Table 4-1 The AT/ATX mode select switch specifies the systems power mode as AT or ATX.

  • Page 67: Clear Cmos Button

    CN Location: See Figure 4-5 If the KINO-TGL-U fails to boot due to improper BIOS settings, use the button to clear the CMOS data and reset the system BIOS information. The location of the clear CMOS button is shown in Figure 4-5...

  • Page 68: Flash Descriptor Security Override Jumper

    KINO-TGL-U SBC Figure 4-5: Clear CMOS Button Location 4.5.3 Flash Descriptor Security Override Jumper CN Label: ME_FLASH1 CN Type: 2-pin header, p=1.27 mm CN Location: See Figure 4-6 CN Settings: See Table 4-2 The Flash Descriptor Security Override jumper (ME_FLASH1) allows to enable or disable the ME firmware update.

  • Page 69: Usb Power Select

    The USB power selection is made through the BIOS options in “Chipset  PCH-IO Configuration” BIOS menu. Use the USB Power SW BIOS option to configure the power source to all the external and internal USB ports of the KINO-TGL-U. ...

  • Page 70: Chassis Installation

    The chassis should have fans and vents as necessary to keep things cool. The KINO-TGL-U must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 71: Sata Drive Connection

    Step 0: system. 4.7.2 SATA Drive Connection The KINO-TGL-U is shipped with a SATA drive cable. To connect the SATA drive to the connector, please follow the steps below. Step 1: Locate the SATA connector and the SATA power connector. The locations of the connectors are shown in Chapter 3.

  • Page 72: Figure 4-8: Sata Drive Cable Connection

    KINO-TGL-U SBC Figure 4-8: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-8.

  • Page 73: Software Drivers

    KINO-TGL-U SBC Chapter Software Drivers Page 62...

  • Page 74: Available Drivers

    KINO-TGL-U SBC 5.1 Available Drivers All the drivers for the KINO-TGL-U are available on IEI Resource Download Center (https://download.ieiworld.com). Type KINO-TGL-U and press Enter to find all the relevant software, utilities, and documentation. Figure 5-1: IEI Resource Download Center 5.2 Driver Download To download drivers from IEI Resource Download Center, follow the steps below.
  • Page 75 KINO-TGL-U SBC Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or double click an  individual item to find its driver file and click the file name to download (...

  • Page 76: A Regulatory Compliance

    KINO-TGL-U SBC Appendix Regulatory Compliance Page 65...
  • Page 77 KINO-TGL-U SBC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules.

  • Page 78: B Product Disposal

    KINO-TGL-U SBC Appendix Product Disposal Page 67...
  • Page 79 KINO-TGL-U SBC CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 80: C Digital I/O Interface

    KINO-TGL-U SBC Appendix Digital I/O Interface Page 69...

  • Page 81: Introduction

    KINO-TGL-U SBC C.1 Introduction The DIO connector on the KINO-TGL-U is interfaced to GPIO ports on the Super I/O chipset. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.

  • Page 82: Assembly Language Sample 1

    KINO-TGL-U SBC C.2 Assembly Language Sample 1 AX, 6F08H ;setting the digital port as input AL low byte = value AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O input value C.3 Assembly Language Sample 2 AX, 6F09H ;setting the digital port as output...

  • Page 83: D Error Beep Code

    KINO-TGL-U SBC Appendix Error Beep Code Page 72...

  • Page 84: Pei Beep Codes

    KINO-TGL-U SBC D.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available D.2 DXE Beep Codes...

  • Page 85: E Hazardous Materials Disclosure

    KINO-TGL-U SBC Appendix Hazardous Materials Disclosure Page 74...

  • Page 86: Rohs Ii Directive (2015/863/Eu)

    KINO-TGL-U SBC E.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 87: China Rohs

    KINO-TGL-U SBC E.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 76...
