IEI Technology KINO-PV-D4253-R10 Quick Installation Manual

IEI Technology KINO-PV-D4253-R10 Quick Installation Manual

Mini-itx sbc support intel® atom™ d525/d425, ddr3, vga, three gbe, 6xcom, 8xusb2.0, audio and sata ii, rohs
Hide thumbs Also See for KINO-PV-D4253-R10:

Advertisement

Quick Links

Mini-ITX SBC support Intel® Atom™ D525/D425, DDR3, VGA, Three
GbE, 6xCOM, 8xUSB2.0, Audio and SATA II, RoHS
KINO-PV-D4253-R10
KINO-PV-D5253-R10
Package Contents
KINO-PV-D4253/D5253 package includes the following items:

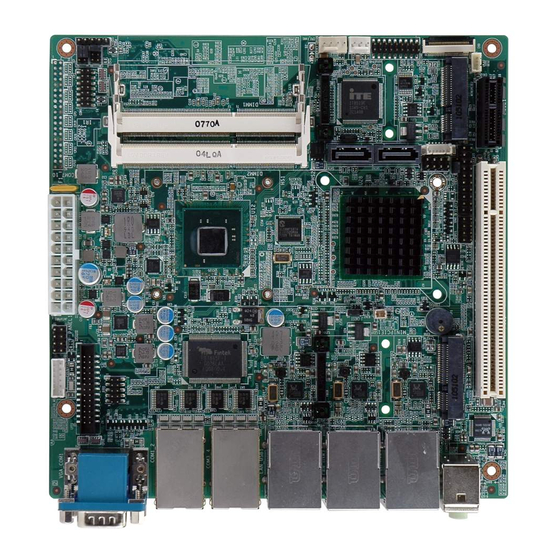

1 x KINO-PV-D4253/D5253 Single Board Computer
1 x SATA Cable
1 x I/O shielding
1 x Mini Jumper Pack
1 x Utility CD
1 x QIG (Quick Installation Guide)
1 x One Key recovery CD
©2006 Copyright by IEI Technology corp.
All manuals and user guides at all-guides.com
Quick Installation Guide
Version 1.0
Mar.24, 2011
All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KINO-PV-D4253-R10 and is the answer not in the manual?

Questions and answers

Summary of Contents for IEI Technology KINO-PV-D4253-R10

  • Page 1 1 x KINO-PV-D4253/D5253 Single Board Computer 1 x SATA Cable 1 x I/O shielding 1 x Mini Jumper Pack 1 x Utility CD 1 x QIG (Quick Installation Guide) 1 x One Key recovery CD ©2006 Copyright by IEI Technology corp. All rights reserved.
  • Page 2: Specifications

    All manuals and user guides at all-guides.com Specifications CPU: D425: Intel® Atom™ 1.8GHz single core processor with 512KB L2 Cache D525: Intel® Atom™ 1.8GHz dual core processor with 1MB L2 Cache System Chipset: Intel® ICH8M BIOS: UEFI BIOS System Memory: 2 x 204-pin DDR3 800MHz SO-DIMMs SDRAM (System max.4GB) Ethernet: LAN: Three PCIe GbE by Realtek RT8111E with ASF2.0 supported.
  • Page 3 Mini ITX SBC with Intel® Atom™ D525 Dual Core 1.8GHz/1MB L2 cache, DDR3, VGA, Three GbE, USB2.0, COM and SATA II, RoHS KINO-PV-D4253-R10: Mini ITX SBC with Intel® Atom™ D425 1.8GHz/512KB L2 cache, DDR3, VGA, Three GbE, USB2.0, COM and SATA II, RoHS...
  • Page 4 All manuals and user guides at all-guides.com Jumpers setting and Connectors LABEL FUNCTION J_CMOS1 CMOS State Setting JCOM61 RS232/422/485 Setting JCOM62 RS422/485 Mode Setting USB6,7 Power Mode Setting VGA_COM1 VGA +COM Female Connector COM1_2 External LAN Connector(RS232 signal) COM3_4 LAN_USB1 LAN_USB2 External 2 Port USB+LAN Connectors LAN_USB3...
  • Page 5 All manuals and user guides at all-guides.com J_CMOS1 : Clear CMOS Setup JCOM61: RS232/422/485 Setting (2 *3 6pin, pitch 2.0mm) Description J_CMOS1 JCOM61 Description Short 1-2 Keep CMOS Setup Short 2-3 Clear CMOS Setup RS232 RS422 JCOM62: RS422/485 Setting RS485 (2 *3 6pin, pitch 2.0mm) J66: USB6,7 Power Setting JCOM62...
  • Page 6 All manuals and user guides at all-guides.com LAN_USB1/2/3A: RJ45 W/LED & TRANSFORMER,22PIN,90D, DESCRIPTION DESCRIPTION +V3.3A_LAN1/2/3 LAN1/2/3_MDIP3 LAN1/2/3_MDIP0 LAN1/2/3_MDIN3 LAN1/2/3_MDIN0 LAN1/2/3_MDIP1 LAN1/2/3_LED1_LINK100 LAN1/2/3_MDIN1 LAN1/2/3_LED3_LINK1000 LAN1/2/3_MDIP2 LAN1/2/3_LED0_TXRX LAN1/2/3_MDIN2 +V3.3A _LAN1/2/3 LAN_USB1/2/3B: USB*2,22PIN,90D, DESCRIPTION DESCRIPTION USBV01/23/45L USBV01/23/45L DATA0/2/4_N DATA1/3/5_N DATA0/2/4_P DATA1/3/5_P JAUDIO1: AUDIO JACK DESCRIPTION DESCRIPTION LINE_OUTL...
  • Page 7 All manuals and user guides at all-guides.com COM6 : Serial Port Connector (RS-232/422/485) PIN HEADER 2*7,14PIN, P:2.0mm DESCRIPTION DESCRIPTION NDCD6 NDSR6 NRX6 NRTS6 NTX6 NCTS6 NDTR6 NRI6 TX6+_L TX6-_L RX6+_L RX6-_L CPU_FAN1: DIO1: Digital Input / Output Connector PIN DESCRIPTION PIN DESCRIPTION CPU Fan Connector DESCRIPTION VCC5...
  • Page 8 All manuals and user guides at all-guides.com TPM1: TPM Connector DESCRIPTION DESCRIPTION TPMCLK LPC_FRAME PLT_RST# LPC_AD3 LPC_AD2 VCC3 LPC_AD1 LPC_AD0 SMBCLK SMBDATA VCC3DUAL INT_ SERIRQ CLKRUN VCC3 LDRQ0 LPT1: LPT PIN HEADER 2X13,26PIN,180° ° ° ° ,P=2.0MM DESCRIPTION DESCRIPTION STB- AFD- ERR- PTD0...
  • Page 9 All manuals and user guides at all-guides.com MINIPCIE1: MINI PCIE Slot DESCRIPTION DESCRIPTION PCIE_WAKE# +V3.3_MINI-1 VCC1_5 CLK_MINIPCIE_CLK1# CLK_MINIPCIE_CLK1 PCIRST# PM_GPIO17_RF_OFF1# PCIRST# PCIE_RX1- +V3.3_MINI-1 PCIE_RX1 VCC1_5 SMBCLK PCIE_TX1- SMBDATA PCIE_TX1 USB_PN8 USB_PP8 +V3.3_MINI-1 +V3.3_MINI-1 SATA_TXP2_C SATA_TXN2_C VCC1_5 SATA_RXN2_C SATA_RXP2_C +V3.3_MINI-1 SPI1: SPI Connector. PIN HEADER2*4,8PIN, P:2.54MM DESCRIPTION DESCRIPTION...
  • Page 10 All manuals and user guides at all-guides.com MINIPCIE2: MINI PCIE Slot DESCRIPTION DESCRIPTION PCIE_WAKE# +V3.3_MINI-2 VCC1_5 CLK_MINIPCIE_CLK2# CLK_MINIPCIE_CLK2 PCIRST# PM_GPIO17_RF_OFF2# PCIRST# PCIE_RX2 +V3.3_MINI-2 PCIE_RX2 VCC1_5 SMBCLK PCIE_TX2- SMBDATA PCIE_TX2 USB_PN9 USB_PP9 VCC1_5 +V3.3_MINI-2 JSPI2: WAFER 1*6 WITH FRAME,6PIN,180D,P:1.25MM DESCRIPTION DESCRIPTION +V3.3A_EC_CONN FSCE#_S FMISO_S...
  • Page 11 All manuals and user guides at all-guides.com Board Layout: Jumper and Connector Locations (Unit: mm)
