IEI Technology KINO-KBN-i2 Quick Installation Manual

Hide thumbs Also See for KINO-KBN-i2:

Advertisement

Quick Links

Download this manual
Mini-ITX SBC with AMD® Embedded G-Series SoC with VGA/Dual
HDMI, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6GB/s,
Quick Installation Guide
Package List
KINO-KBN-i2 package includes the following items:
1 x KINO-KBN-i2 single board computer
2 x SATA with power output cable kit (P/N:32801-000100-300-RS)
1 x I/O shielding (P/N: 45014-0029C0-00-RS)
1 x Utility CD
1 x QIG (Quick Installation Guide)
1 x One key recovery CD
HD Audio, IPMI and RoHS
KINO-KBN-i2
Version 1.0
Mar 13, 2014.
©2006 Copyright by IEI Integration corp.
All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KINO-KBN-i2 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology KINO-KBN-i2

Summary of Contents for IEI Technology KINO-KBN-i2

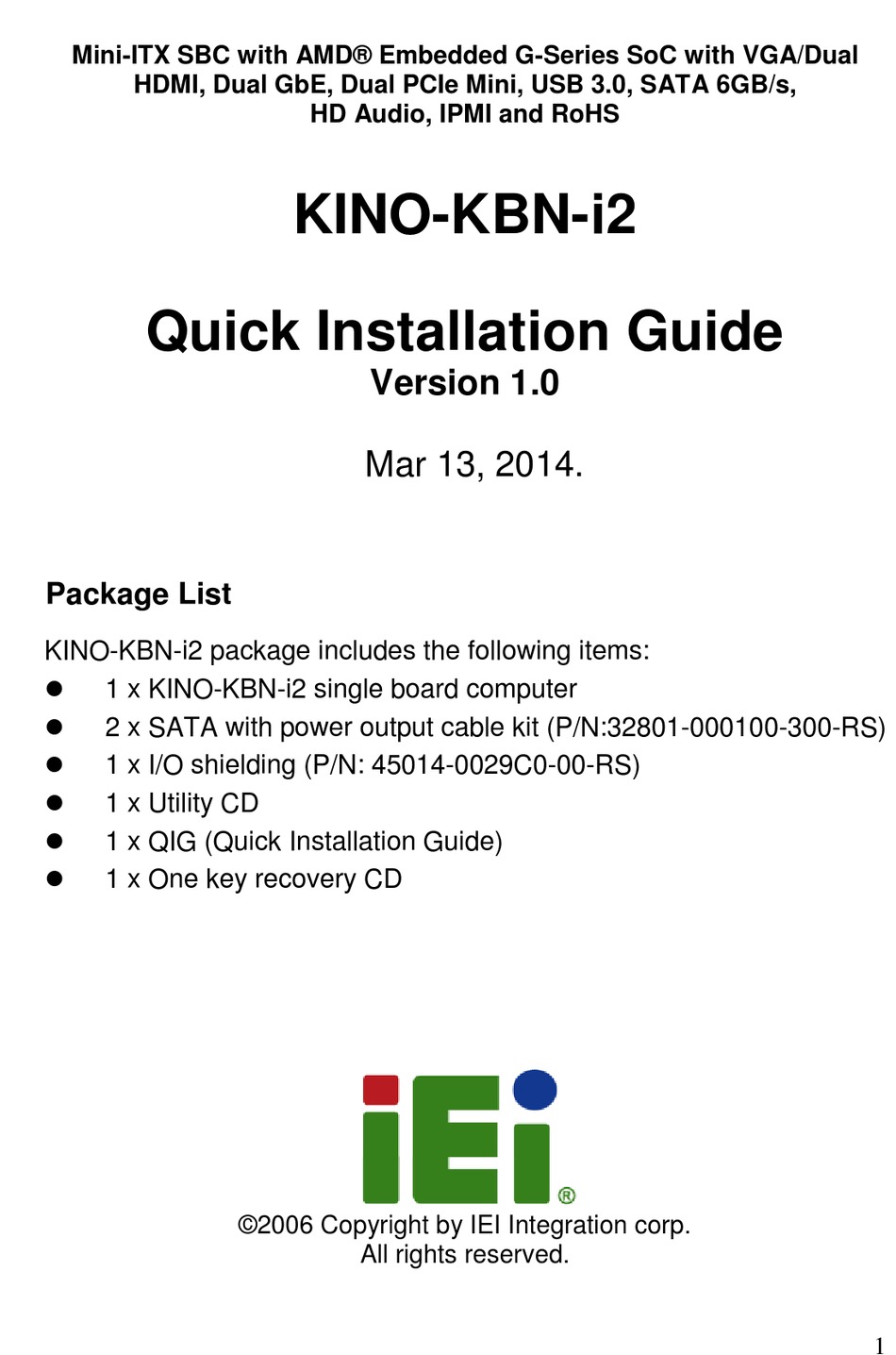

  • Page 1 HD Audio, IPMI and RoHS KINO-KBN-i2 Quick Installation Guide Version 1.0 Mar 13, 2014. Package List KINO-KBN-i2 package includes the following items:  1 x KINO-KBN-i2 single board computer  2 x SATA with power output cable kit (P/N:32801-000100-300-RS) ...
  • Page 2 Specifications  SoC: AMD® Embedded G-Series SoC GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W with fan solution) GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W with fanless solution) GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W with fan solution) (by request) GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W with fanless solution) (by request) ...
  • Page 3  Audio: Realtek ALC892HD Audio codec 1 x SPDIF for digital audio 1x Line-out / Mic-In audio jack on rear IO  I/O Interface: 1 x RS-232 on rear I/O 3 x RS-232 by 10-pin (2x5) header 1 x RS-422/485 by 4-pin (1x4) wafer 2 x USB 3.0 on rear I/O 2 x USB 2.0 on rear I/O 2 x USB 2.0 by 8-pin (2x4) header...
  • Page 4  Dimensions: 170mm x 170mm  Weight GW/NW: 600g / 250g Ordering Information  KINO-KBN-i2-4151-R10: Mini-ITX SBC supports AMD® 28nm Quad-Core GX-415GA 1.5GHz (15W) on-board SoC with VGA/Dual HDMI, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6GB/s, iRIS-2400, audio and RoHS ...
  • Page 5 Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 AT/ATX mode select switch BAT1 Battery connector CHASSIS1 Chassis intrusion connector J_CMOS1 Clear CMOS button FAN1 CPU fan connector PWR1 CPU power connector DIMM1, DIMM2 DDR3 SO-DIMM slots DIO1 Digital I/O connector LPT_DB1 EC debug connector F_PANEL1 Front panel connector...
  • Page 6 COM1, HDMI1 Serial port and HDMI connectors VGA1, HDMI2 VGA and HDMI connectors J_ATX_AT1: AT/ATX mode select switch PIN NO. DESCRIPTION Short 1 - 2 AT Mode Short 2 - 3 ATX Mode (default) BAT1: Battery Connector PIN NO. DESCRIPTION PIN NO.
  • Page 7 DIO1: Digital I/O connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT3 DOUT2 DOUT1 DOUT0 DIN3 DIN2 DIN1 DIN0 LPT_DB1: EC debug connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION KSI0 KSO9 KSO0 KSO10 KSO1 KSO12 KSO2 KSI1 KSO3 KSO11 KSO4 KSI2 KSO5 KSI3 KSO6...

  • Page 8: Table Of Contents

    KB_MS1: Keyboard and mouse connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC5_KBMS MSDATA MSCLK KBDATA KBCLK KBMS_GND LED_LAN2, LED_LAN3: LAN LED connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION L1/2_LINK_ACT- ID_BT_FP1: IPMI LED connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3A_EC_PLL ID_BT_FP#...
  • Page 9 IPMI1: IPMI slot DESCRIPTION DESCRIPTION VGA_G2 NC_SI_RXD1 NC_SI_TXD1 VGA_R2 +5V_DUAL +5V_DUAL VGA_B2 NC_SI_CRS_DV NC_SI_CLK_IN NC_SI_TX_EN VSYNC2 +5V_DUAL +5V_DUAL HSYNC2 APU_VDD_RUN VI_DDCDAT +0.95V_ALW APU_VDDIO_SUS VI_DDCCLK APU_VTT_SUS SPI_SWITCH SMB_PCIE_3V3_CLK +3.3V SMB_IPMB_3VSB_CLK +3.3V SMB_PCIE_3V3_DATA ID_BT_FP# SMB_IPMB_3VSB_DATA IPMI_DET# BMC_SPKR SPI_BMC_BIOS_CS0_N SPI_PATBRG_R_CS0_N APU_VDD_PWRGD_IPMI SPI_BMC_BIOS_CLK SPI_PATBRG_R_CLK SMB_TEMP_3VSB_CLK SMI_ACTIVE#...
  • Page 10 SMB_TEMP_3VSB_DATA NMI_EVENT# SPI_PATBRG_R_MOSI SCLK1_BMC SPI_BMC_BIOS_MOSI ACLK_LAN2 SPI_PATBRG_MISO SDATA1_BMC SPI_BMC_BIOS_MISO SDATA1_LAN2 SYS_PWRGD_IPMI SYS_PWRGD_IPMI PBG_SYS_RESET_N_BMC ACLK_LAN1 PMBUS_ALERT# SDATA1_LAN1 DATA5_P DATA4_P DATA5_N DATA4_N RTS#4 APU_PROCHOT#_IPMI RXD4 DTR#4 +3.3V TXD4 -CASEOPEN...

  • Page 11: Pwr

    SYS_RST# BMC_TXD5 APU_VDD_RUN DSR#4 BMC_RXD5 +3.3V_DUAL CTS#4 +3.3V_DUAL AMBER_LED-_BMC LAD2 LAD0 GREEN_LED-_BMC LAD3 +3.3V_DUAL LAD1 +3.3V_DUAL ID_LED#_BMC PWRBTSW# PCIE_RST# PCIE_WAKE_UP# PWRBTSW_BMC +3.3V_DUAL +3.3V_DUAL GPP_CLK3N LFRAME# LPC_CLK0_IPMI GPP_CLK3P SERIRQ +3.3V_DUAL +3.3V_DUAL IPMI_RXN PM_RSMRST#_SIO IPMI_TXN PME# IPMI_RXP IPMI_TXP SLP_S3# +5V_DUAL SLP_S4# +5V_DUAL SLP_S5# NC_SI_RXD0 BMC_PSON...
  • Page 12 PCIEX4: PCIe x4 slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V +12V +12V +12V SCLK1 SDATA1 +3.3V +3.3V +3.3V +3.3V_DUAL PCIE_RST# PCIE_WAKE_UP# GFX_CLK0P GFX_CLK0N P_GFX_TXP0 P_GFX_TXN0 P_GFX_RXP0 P_GFX_RXN0 P_GFX_TXP1 P_GFX_TXN1 P_GFX_RXP1 P_GFX_RXN1 P_GFX_TXP2 P_GFX_TXN2 P_GFX_RXP2 P_GFX_RXN2 P_GFX_TXP3 P_GFX_TXN3 P_GFX_RXP3 P_GFX_RXN3...

  • Page 13: Pin No

    M_PCIE1: PCIe Mini Card Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC3_MINI_1 +V1.5_MINI_1 SCLK1 MPCIE_TXDN +V1.5_MINI_1 SDATA1 MPCIE_TXDP USB6N GPP_CLK2N USB6P GPP_CLK2P VCC3_MINI_1 VCC3_MINI_1 PCIE_RST# N48174558 PCIE_RST# +V1.5_MINI_1 MPCIE_RXDN +3.3V_DUAL MPCIE_RXDP mSATA_DET# VCC3_MINI_1...

  • Page 14: Description

    M_PCIE2: PCIe Mini Card Slot DESCRIPTION DESCRIPTION VCC3_MINI_2 +V1.5_MINI_2 SCLK1 MINISLOT1_TXDN +V1.5_MINI_2 SDATA1 MINI_PCIE_SLT1_CLKREQ# MINISLOT1_TXDP USB7N USB7P VCC3_MINI_2 VCC3_MINI_2 PCIE_RST# WL_DISABLE1# PCIE_RST# +V1.5_MINI_2 MINISLOT1_RXDN +3.3V_DUAL MINISLOT1_RXDP VCC3_MINI_2...
  • Page 15 COM2: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD2 NDSR2 NRX2 NRTS2 NTX2 NCTS2 NDTR2 NRI2 COM3: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD3 NDSR3 NRX3 NRTS3 NTX3 NCTS3 NDTR3 NRI3 COM5: RS-232 serial port connector PIN NO.
  • Page 16 CN1: SMBus connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SDATA0 SCLK0 CN2: SMBus connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SDATA1 SCLK1 SPDIF1: SPDIF connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPDIF OUT SPDIF IN SPI1: SPI Flash connector PIN NO. DESCRIPTION PIN NO.
  • Page 17 TPM1: TPM connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LPC_CLK1 LFRAME# LPC_RST# LAD3 LAD2 +3.3V LAD1 LAD0 SCLK0 SDATA0 +3.3V_DUAL SERIRQ LPC_CLKRUN# LPCPD# LDRQ#0 USB3: USB connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBV2L DATA2_N DATA3_P DATA2_P DATA3_N USBV2L...
  • Page 18 LAN1_USB2: Ethernet and USB 2.0 ports PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBV0L DATA0_N 1.5VLAN1 DATA0_P TRD1P0 TRD1N0 USBV0L TRD1P1 DATA1_N TRD1N1 DATA1_P TRD1P2 TRD1N2 TRD1P3 TRD1N3 L1_100- L1_1000- L1_LINK_ACT- +V3.3LAN1...
  • Page 19 LAN2_USB2: Ethernet and USB 3.0 ports PIN NO. DESCRIPTION PIN NO. DESCRIPTION IO_GND_1 TRD2P3 IO_GND_1 TRD2N3 IO_GND_1 USB_3P0_VCC1 IO_GND_1 USB2P8_DM0_L IO_GND_1 USB2P8_DP0_L IO_GND_1 IO_GND_1 USB3P0_RXDN0_C IO_GND_1 USB3P0_RXDP0_C L2_100- L2_1000- USB3P0_TXDN0_C L2_LINK_ACT- USB3P0_TXDP0_C +V3.3LAN2 USB_3P0_VCC2 1.5VLAN2 USB2P9_DM1_L USB2P9_DP1_L TRD2P0 TRD2N0 USB3P0_RXDN1_C TRD2P1 USB3P0_RXDP1_C TRD2N1...
  • Page 20 COM1: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD1 NRX1 NTX1 NDTR1 NDSR1 NRTS1 NCTS1 NRI1 VGA1: VGA connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE CRT_VCC 5VDDCDA VGA_HSYNC VGA_VSYNC 5VDDCLK HDMI1, HDMI2: HDMI connectors PIN NO. DESCRIPTION PIN NO.
  • Page 21 Board Layout: Jumper and Connector Locations （Unit: mm）...
