ECLYPSE Web Interface

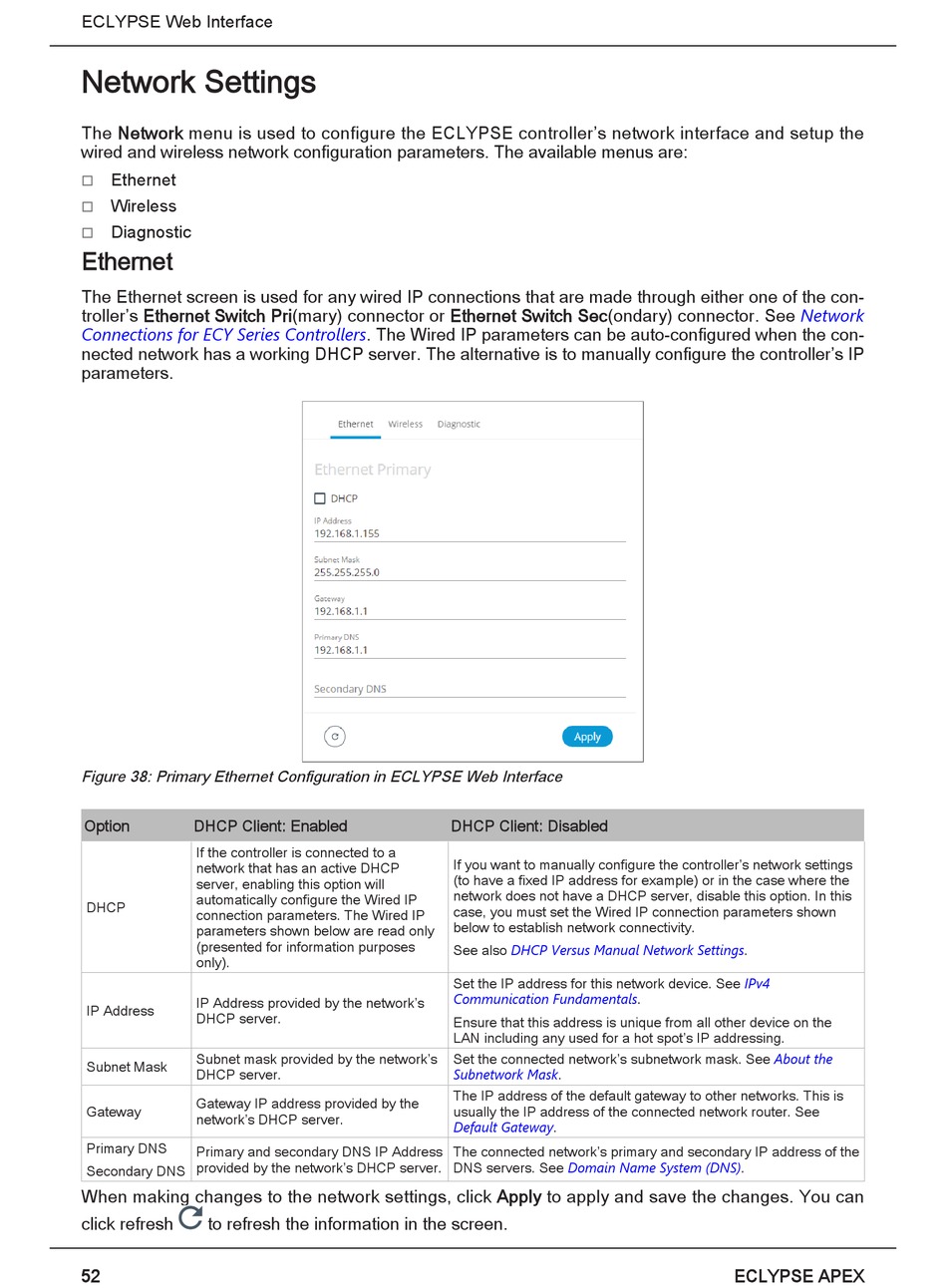

Network Settings

The Network menu is used to configure the ECLYPSE controller's network interface and setup the
wired and wireless network configuration parameters. The available menus are:

Ethernet

£
Wireless
£
Diagnostic
£
Ethernet
The Ethernet screen is used for any wired IP connections that are made through either one of the con-
troller's Ethernet Switch Pri(mary) connector or Ethernet Switch Sec(ondary) connector. See
Connections for ECY Series
nected network has a working DHCP server. The alternative is to manually configure the controller's IP
parameters.
Figure 38: Primary Ethernet Configuration in ECLYPSE Web Interface
Option DHCP Client: Enabled
If the controller is connected to a
network that has an active DHCP
server, enabling this option will
automatically configure the Wired IP
DHCP
connection parameters. The Wired IP
parameters shown below are read only
(presented for information purposes
only).
IP Address provided by the network's
IP Address
DHCP server.
Subnet mask provided by the network's
Subnet Mask
DHCP server.
Gateway IP address provided by the
Gateway
network's DHCP server.
Primary DNS
Primary and secondary DNS IP Address
provided by the network's DHCP server.
Secondary DNS
When making changes to the network settings, click Apply to apply and save the changes. You can
click refresh to refresh the information in the screen.
52
Controllers. The Wired IP parameters can be auto-configured when the con-
DHCP Client: Disabled
If you want to manually configure the controller's network settings
(to have a fixed IP address for example) or in the case where the
network does not have a DHCP server, disable this option. In this
case, you must set the Wired IP connection parameters shown
below to establish network connectivity.
See also
Set the IP address for this network device. See
Communication
Ensure that this address is unique from all other device on the
LAN including any used for a hot spot's IP addressing.
Set the connected network's subnetwork mask. See
Subnetwork
The IP address of the default gateway to other networks. This is
usually the IP address of the connected network router. See
Default
The connected network's primary and secondary IP address of the
DNS servers. See
DHCP Versus Manual Network
Fundamentals.
Mask.
Gateway.
Domain Name System
Network
Settings.
IPv4
About the
(DNS).
ECLYPSE APEX
