Subnetwork Installation Guidelines
EOL set to OFF

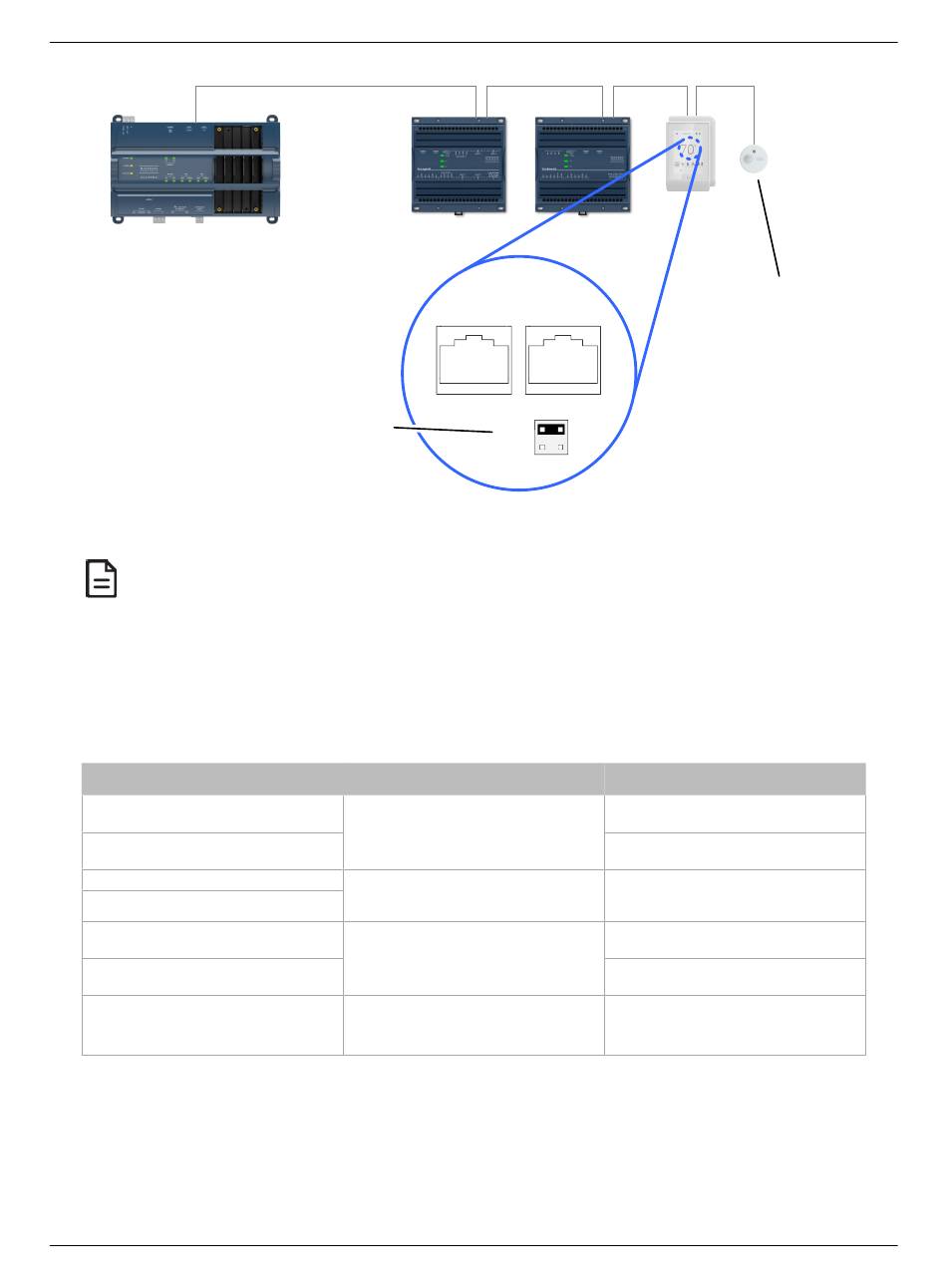

Figure 121: Setting the EOL Terminations on the Cat 5e Cable Subnetwork Data Bus for the ECLYPSE APEX
with an Allure UNITOUCH and an EC-Multi-Sensor-BLE
Depending on the type of expansion module, the subnetwork data bus EOL may be set by configuring jumpers or
DIP switches. Refer to the expansion module's hardware installation guide for how to identify and set a room
devices' built-in EOL terminations.

Setting the Subnet ID Addressing for Room Devices

Each type of room device connected to a controller's Subnet Port must be set to a unique subnet ID
address. The permitted subnet ID addressing range according to controller model can be found at
Subnetwork Module Compatibility and Supported Quantity
vice's subnet ID address is shown in the table below.
Room Device Type
Allure EC-Smart-Vue series
Allure UNITOUCH
Allure EC-Smart-Comfort sensors
Allure EC-Smart-Air series
EC-Multi-Sensor series
EC-Multi-Sensor-BLE
ECx-Light-4 / ECx Light-4D / ECx Light
4DALI
ECx-Blind-4 / ECx Blind-4LV
Table 23: Subnetwork Module Compatibility and Maximum Supported Quantity Chart
144
Subnetwork: Cat 5e Cable with RJ-45 Connectors
Back of Allure
UNITOUCH
EOL
OFF
EOL
ON
Configuration Method
Configured in an on-screen menu.
Dip Switch located next to the RJ-45
subnet connectors
Rotary selector located next to the RJ-45
subnet connector
DIP switch located next to Subnet Port
connectors
Charts. The method to use to set a room de-
See
Setting the Allure EC-Smart-Vue Sensor's
Subnet ID Address
Setting the Allure UNITOUCH Sensor
Subnet ID Address
Setting the Allure EC-Smart-Air and EC-
Smart-Comfort Communicating Sensor
Series' Subnet ID Address
Setting the EC-Multi-Sensor Series' Subnet
ID Address
Setting the EC-Multi-Sensor-BLE Subnet ID
Address
Setting the ECx-Light and ECx-Blind
Series' Subnet ID Address
Insert the EOL
jumper to
enable EOL
termination
ECLYPSE APEX
