Ethernet Network Connection; Network Connections For Ecy Series Controllers - Distech Controls ECLYPSE APEX User Manual

ID: MAC Address
Model: APEX
For example, for a MAC Address of : 76:a5:04:cd:4a:d1
The factory-default name for the Wi-Fi access point is ECLYPSE-CD4AD1
The factory-default hostname is eclypse-cd4ad1.local

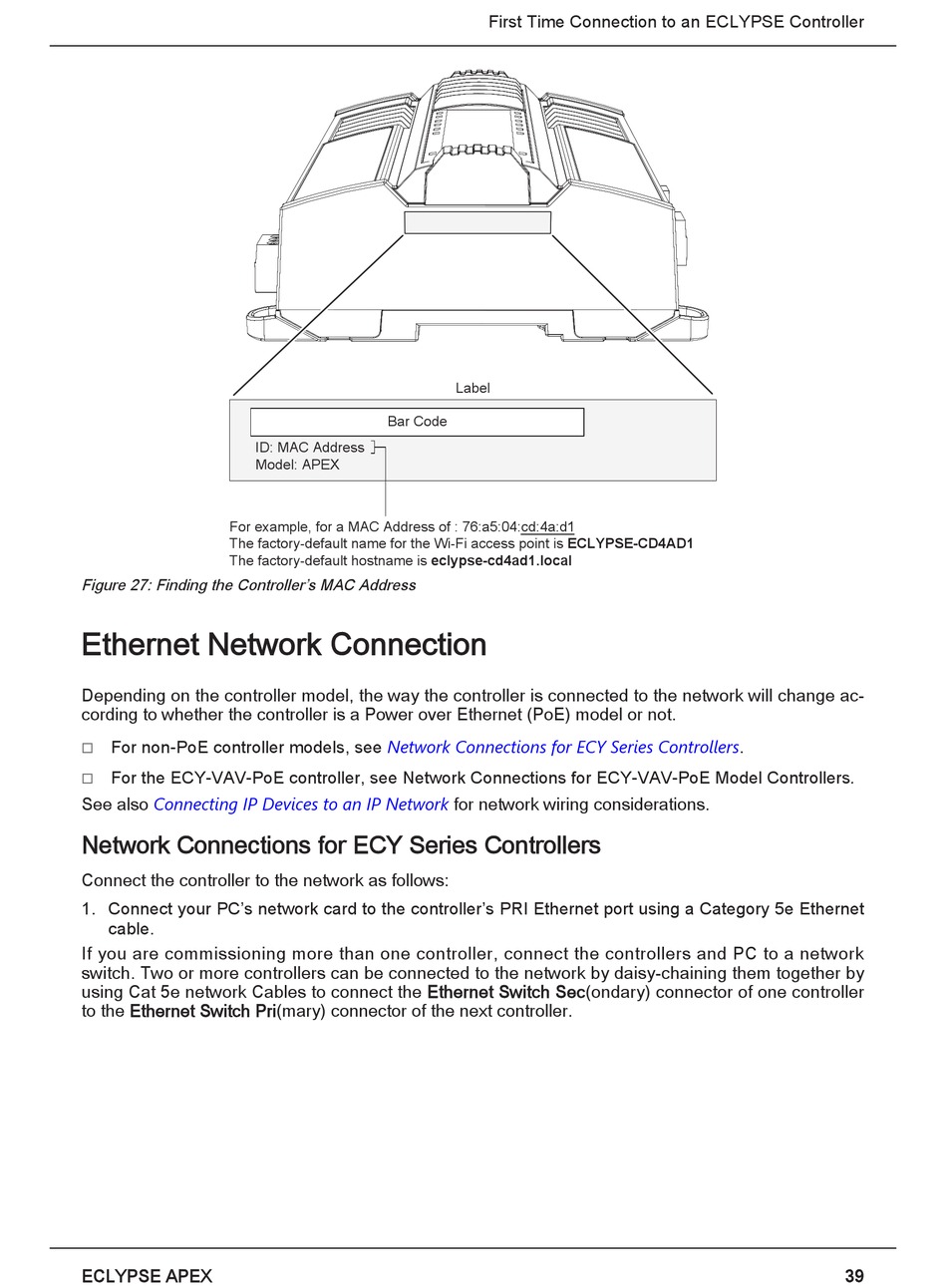

Figure 27: Finding the Controller's MAC Address

Ethernet Network Connection

Depending on the controller model, the way the controller is connected to the network will change ac-
cording to whether the controller is a Power over Ethernet (PoE) model or not.
For non-PoE controller models, see
£
For the ECY-VAV-PoE controller, see Network Connections for ECY-VAV-PoE Model Controllers.
£
See also Connecting IP Devices to an IP Network

Network Connections for ECY Series Controllers

Connect the controller to the network as follows:
1. Connect your PC's network card to the controller's PRI Ethernet port using a Category 5e Ethernet
cable.
If you are commissioning more than one controller, connect the controllers and PC to a network
switch. Two or more controllers can be connected to the network by daisy-chaining them together by
using Cat 5e network Cables to connect the Ethernet Switch Sec(ondary) connector of one controller
to the Ethernet Switch Pri(mary) connector of the next controller.
ECLYPSE APEX
First Time Connection to an ECLYPSE Controller
Label
Bar Code
Network Connections for ECY Series
for network wiring considerations.
Controllers.
39
