Setting The Ecx-Light And Ecx-Blind Series' Subnet Id Address - Distech Controls ECLYPSE APEX User Manual

Automatic addressing shall only be used if only one EC-Multi-Sensor-BLE is connected to the ECx Subnetwork.

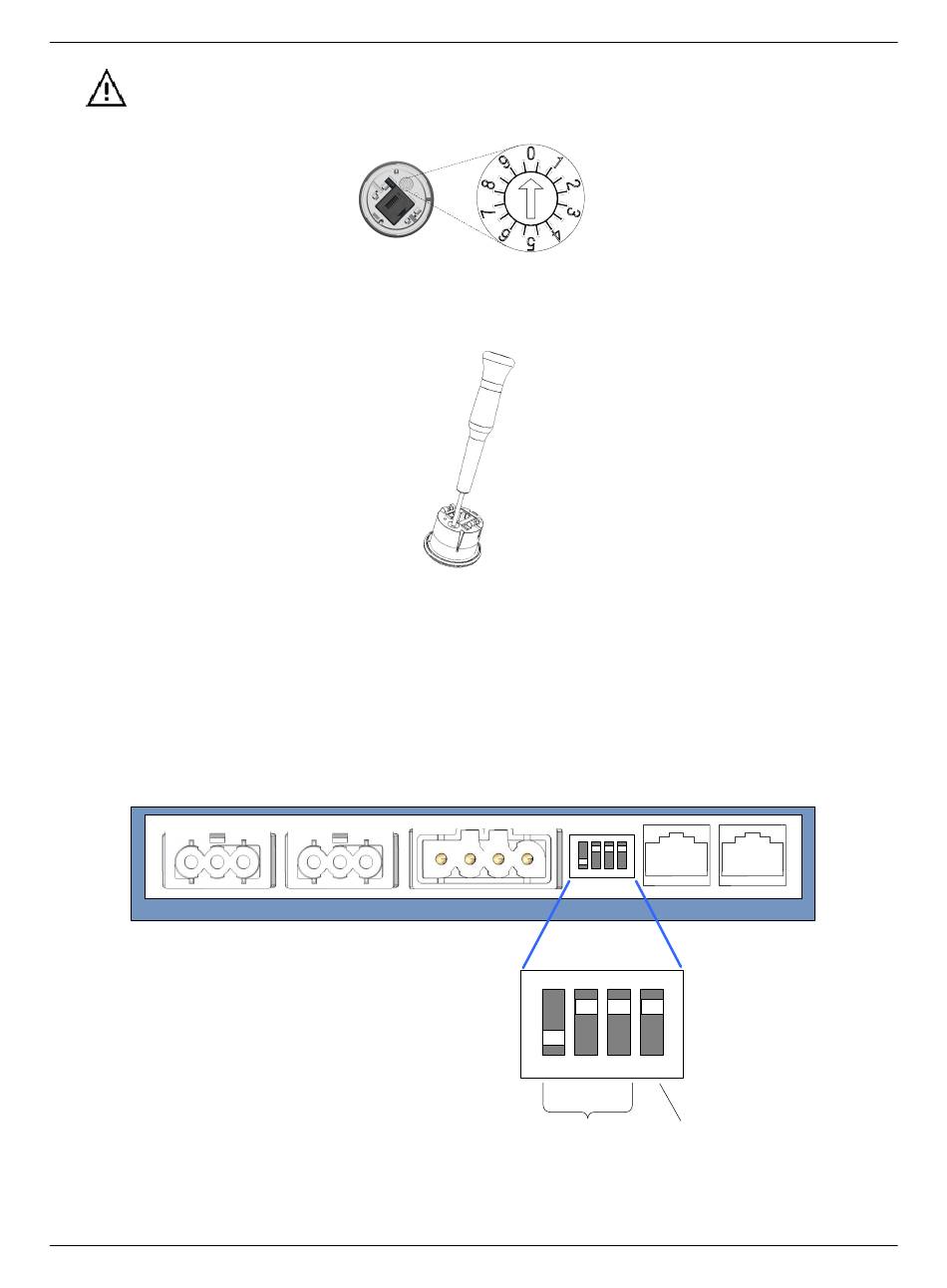

Figure 124: EC-Multi-Sensor-BLE Rotary Switch
Set the desired Subnet ID by pointing the matching number with the rotary switch arrow.
Figure 125: Setting the EC-Multi-Sensor-BLE Subnet ID Address
Setting the ECx-Light and ECx-Blind Series' Subnet ID
Address
Each ECx-Light and ECx-Blind Series' connected to a controller's Subnet Port must be set to a unique
subnet ID address. The address is set through the DIP switch located next to the Subnet Port connec-
tors.
Side view of ECx-Light or ECx-Blind Series Module
(typical)
Figure 126: Setting the ECx-Light and ECx-Blind Series' Subnet ID Address (Typical)
ECLYPSE APEX
Subnetwork Installation Guidelines
↓
O
N 1 2 3 4
MAC
↓
O
N 1 2 3 4
Set the Subnet EOL
ID Address Termination
151
