Wi-Fi Access Point

Should there be no available access point; an ECLYPSE controller can be configured as a wired-to-
wireless bridge to create an access point which can provide Wi-Fi access to other Wi-Fi enabled
clients. This access point operates off of the same subnetwork and has the same IP connectivity that
the controller has with its wired network connection. The Wi-Fi adapter can also be temporarily added
to a controller for wireless commissioning purposes. A variety of software applications are available for
system monitoring and override, commissioning, configuration and programming. To configure the Wi-
Fi access point connection mode, see
Wi - Fi Access Point:
Use the Controller to Provide Wi - Fi Access to other wireless devices
Internet
DHCP Server

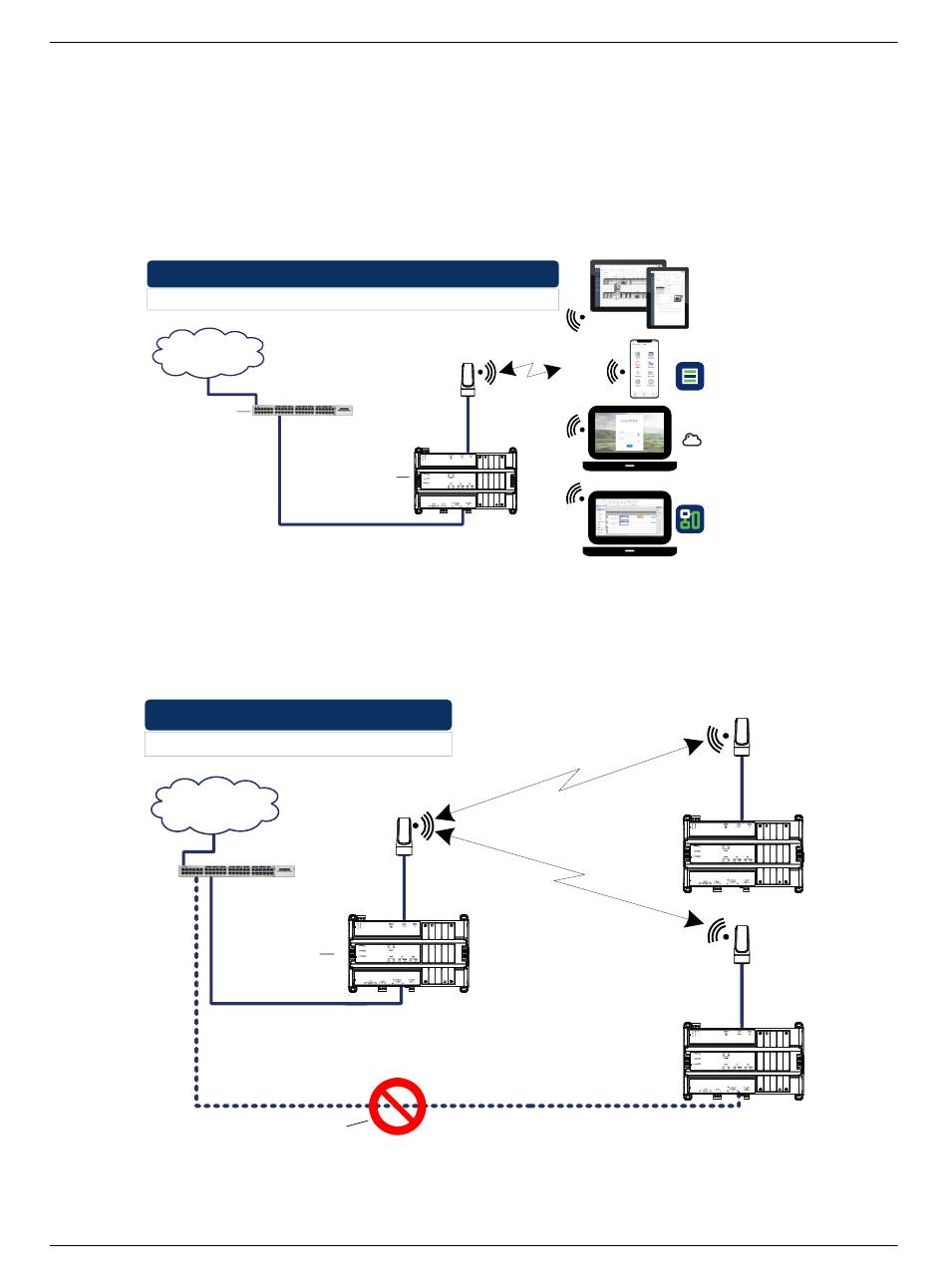

Figure 19: Using an APEX Controller to Create an Access Point
A second ECLYPSE controller can be configured as a wireless client. This can be used as a solution
to 'jump' architectural features that are not compatible with wires such as glass atrium and the like. To
configure the Wi-Fi client connection mode, see
An access point can provide Wi-Fi access to other Wi-Fi enabled clients and controllers.
Controller-to- Controller Interconnection :
Use Wi - Fi to Wirelessly Connect other Controllers
Internet
Router
Wired - to-
Wireless Bridge
Eliminate Ethernet Cables
Figure 20: Using an APEX Controller as a Wireless Bridge
ECLYPSE APEX
Setting up a Wi-Fi Access Point Wireless
Wireless Access Point
Router
Wired-to-Wireless
Bridge
Setting up a Wi-Fi Access Point Wireless
Wireless Access Point
Connecting IP Devices to an IP Network
Controller Interconnection
Through Wi - Fi
Network.
HORYZON-C
my DC Control
Web Browser
EC-gfxProgram
Network.
