Advantech ASMB-935 Startup Manual

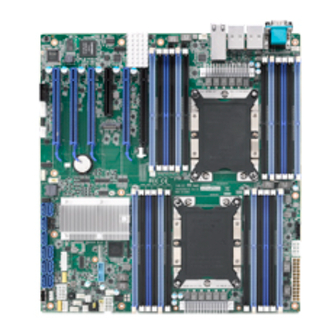

ASMB-935 LGA 3647 Dual Intel Xeon® Processor Scalable
Family Server Board with 24 DDR4, 5 PCIe x16 + 1 PCIe
x8, 10 SATA3, 6 USB3.0, Dual 10GbE, IPMI
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
• 1 ASMB-935 Startup Manual
• 1 Driver CD
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 2 CPU power cables (8P)
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ASMB-935 series Rev. A1
Part No. 2001093500
Printed in China
Specifications
Standard M/B Functions
• CPU: Dual LGA3647-P0 Intel Xeon® processor scalable
family series
• BIOS: AMI 256 Mb SPI BIOS
• Chipset: Intel® C620 PCH
• System Memory: 24* DDR4-1866/2133/2400/2666
registered ECC DIMM, max. capacity 768 GB
Note 2:
• SATA Interface: 10 SATA3 6 Gb/s ports Intel Rapid
Storage (for Windows only) (supporting software RAID 0,
1, 10 & 5 )
• Serial Ports: Two RS-232 (one on rear I/O, and another
one via pin header)
• Keyboard/Mouse Header (KBMS1): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable
• Watchdog Timer: 255 sec/min level timer intervals
• USB Port: Supports up to 6 USB 3.0 ports (2 ports from
onboard 20-pin header) and 5 USB 2.0 ports (1*Type-A,
4 ports from onboard 10-pin header)
VGA Interface
• Chipset: ASPEED AST2500/2510
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps & 10Gb (only for LAN3 &
LAN4)
• Controller: LAN1/2: Intel I210; LAN3/4: Intel X557
Mechanical and Environment
• Dimensions (L x W): 330 x 304 mm (13" x 12")
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power Consumption (mainboard only, excluding
IO device): Max. load: +3.3V@6.77A, +5V@5.11A,
+12V@0.04A, +5V_SB@0.17A, -12V@0.01A,
+12V_8P_0@21.49A, +12V_8P_1@23.10A
• Operating Temperature: 0 ~ 40° C (depending on CPU)
• Weight: 1.5 kg (weight of board)
1st Edition
May 2018
Due to the inherent limitations of the PC architec-
ture, the system may not fully detect 768 GB
RAM when 768 GB RAM is installed.
ASMB-935 Startup Manual 1
