Summary of Contents for Jolly A-5 Spot

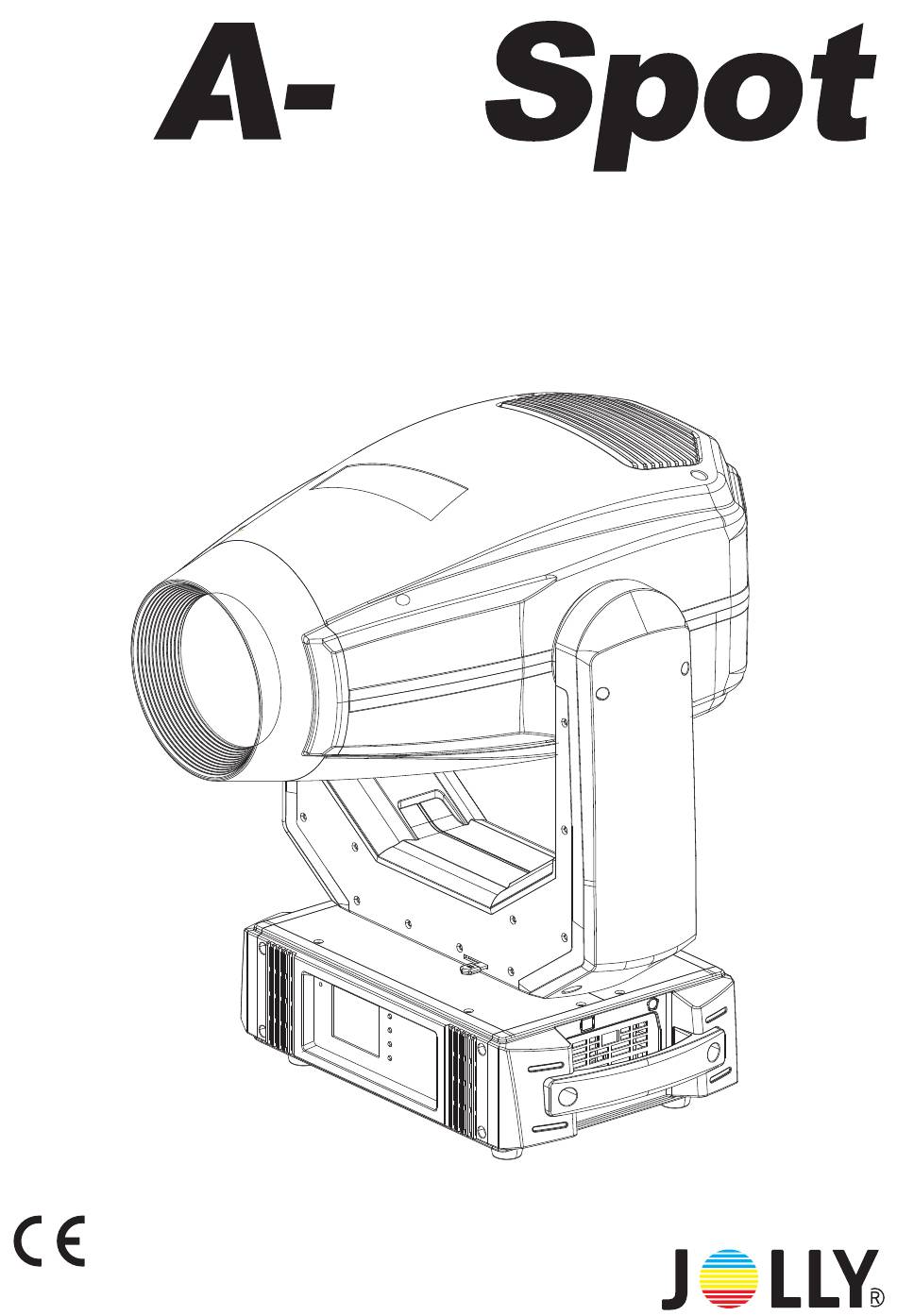

  • Page 1 USER MANUAL Version:1.0...
  • Page 3: Table Of Contents

    Table of content 1.Open-Package guidelines............... 1.1Package....................1 2.Safety instructions..................1 3.Operating determination.................3 4.Rigging the fixture...................4 4.1 Mounting.....................4 4.2Installing the Clamps................4 4.3 Power supply connection and cut off...........5 4.4 Power Connection................6 4.5 DMX-512 connection/connection between fixtures......6 Description of the device............
  • Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.
  • Page 5: Open-Package Guidelines

    1.Open-Package guidelines Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using inform ation of this pro ducts.Plese refere this manual's relative instruction when using this equipment.
  • Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.
  • Page 7: Operating Determination

    Protection against electrical shock Connection must be made to a power supply system fitted with efficient earthing (Class I appliance ac- cording to standard EN 60598 -1 ) .It is, moreover, recommended to protect the supply lines of the proj- ectors from indirect contact and/orshorting to earth by using appropriately sized residual current devi- ces.
  • Page 8: Rigging The Fixture

    If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers like short-circ- uit,burns, electric shict,burns due to ultraviolet radiation,lamp explosion,crash etc. 4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE.
  • Page 9: Power Supply Connection And Cut Off

    The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc.
  • Page 10: Power Connection

    4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US)
  • Page 11: Description Of The Device

    DMX Terminator Diagram -For installations where the DMX cable has to run a long distance or is In an electrically noisy environment it is recommended to use a DMX terminator. This help in preventing corruption of the signal by electrical noise. The DMX terminato r is simply an XLR plug witha Ω...
  • Page 12: Dimension

    6.Dimension 514mm (20.24”) 551mm (21.69”) 404mm 247mm (15.90”) (9.72”) 166mm (6.54”) 726mm (28.58”) 417mm (16.42”) - 8 -...
  • Page 13: Display Control

    7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface.
  • Page 14 *Click on the main menu of the icon and value to view set of the relevant lighting information. If there is symbol of the " " on the display, it indicates that the device may be wrong , if the symbol was blue, the contents are errors appeared, click to clear.
  • Page 15: Menu Maps

    7.3 Unit Menu Remark Dmx Address 001-XXX Mode1 1-23 Set up Channel Mode Default:Mode1 Mode2 1-18 Fixture Id 0001~9999 Fixture Times XXXXX h XX m Led Times XXXXh XXm LED Times Reset Led Time Error List BOARD 1: XX.XX% Information Diagnosis BOARD 2: XX.XX% BOARD 3: XX.XX%...
  • Page 16: Dmx Protocol

    8.DMX protocol Mode 1 Mode 2 Fade Type Function Dmx Value Pan 0-540° 0-255 Pan Fime Pan Fime 0-255 Tilt Tilt 0-270° 0-255 Tilt Fime Tilt Fime 0-255 Whatever Position Open Color 1 Color 2 Color 3 Color 4 Color 5 Color 6 Color 7 Color 8...
  • Page 17 Mode 1 Mode 2 Fade Type Function Dmx Value No rotation Rot. gobo Forwards gobo rotation from fast to slow 3-126 indexing and No rotation 127-129 rotation Backwards gobo rotation from slow to fast 130-253 No rotation 254-255 Open Gobo Position Gobo1 10-19 Gobo2...
  • Page 18: Maintance And Cleaning

    Mode 1 Mode 2 Fade Type Function Dmx Value Pattern 3 20-24 Pattern 4 25-29 Pattern 5 30-34 Pattern 6 35-39 Pattern 7 40-44 Pattern 8 45-49 Pattern 9 50-54 Pattern Pattern 10 55-59 sellection Pattern 11 60-64 Pattern 12 65-69 Pattern 13 70-74...
  • Page 19: Electric Equipment Specification

    Turn off the LED first to better protect the device when the fixture is turned off. Turn off the power after running for at least 5 minutes Don't touch the bulb with your hands.Once contacting with your hands,scrub with alcohol and then dry with linen.
  • Page 20: Menu Function

    6. Zoom:linear amplifier. 7. Focus:linear focus with auto function. 8. Demmer:electronic dimming,linear dimmer. 9. Strobe:electronic strobe,with strobe mode of synchronistical,pulse and random. 10.Iris: linear adjustment from minimum to maximum . 10.4 Menu Function Touch screen,English/Chinese menu 2.Each DMX Value displayable. 3.Time of automatic turning off is able to set on the display,when operating pan/tilt,Color and gobos, strobe are turn off and able to set freely.
  • Page 21: Gobo Wheel

    Gobo wheel 10.6 Fix gobo wheel Effect wheel Φ8 Rgobo wheel - 17 -...
  • Page 22: Color Wheel

    10.7 Color wh eel Blue Yellow Fluorescent Green Mei red Orange - 18 -...
  • Page 23: Electronic Drawing

    11.Electronic drawing RS485 RS485 Power Supply Titl EN Pan EN Titl Sensor Pan Sensor Titl Motor Motor RS485 RS485 Power Supply Power Cooling Fan 7025 Battery LED Control OUT+ PWM1 OUT- NTC- NTC+ FUSE Note: The above contents for reference only and is subject to change without prior notice, please take specification you have on hand and our company reserves the final right of interpretation.
  • Page 26 ht tp: //www.jol lyl ight ing. com Guangzhou hongcai stage equipment Co.,Ltd Tel:+862084558833 Fax:+862084559699 Email:info@jollylighting.com P.C:511450 Add:No.30,Changsha Street, Shachong Village,shiji Tow.Panyu District,Guangzhou,China...
