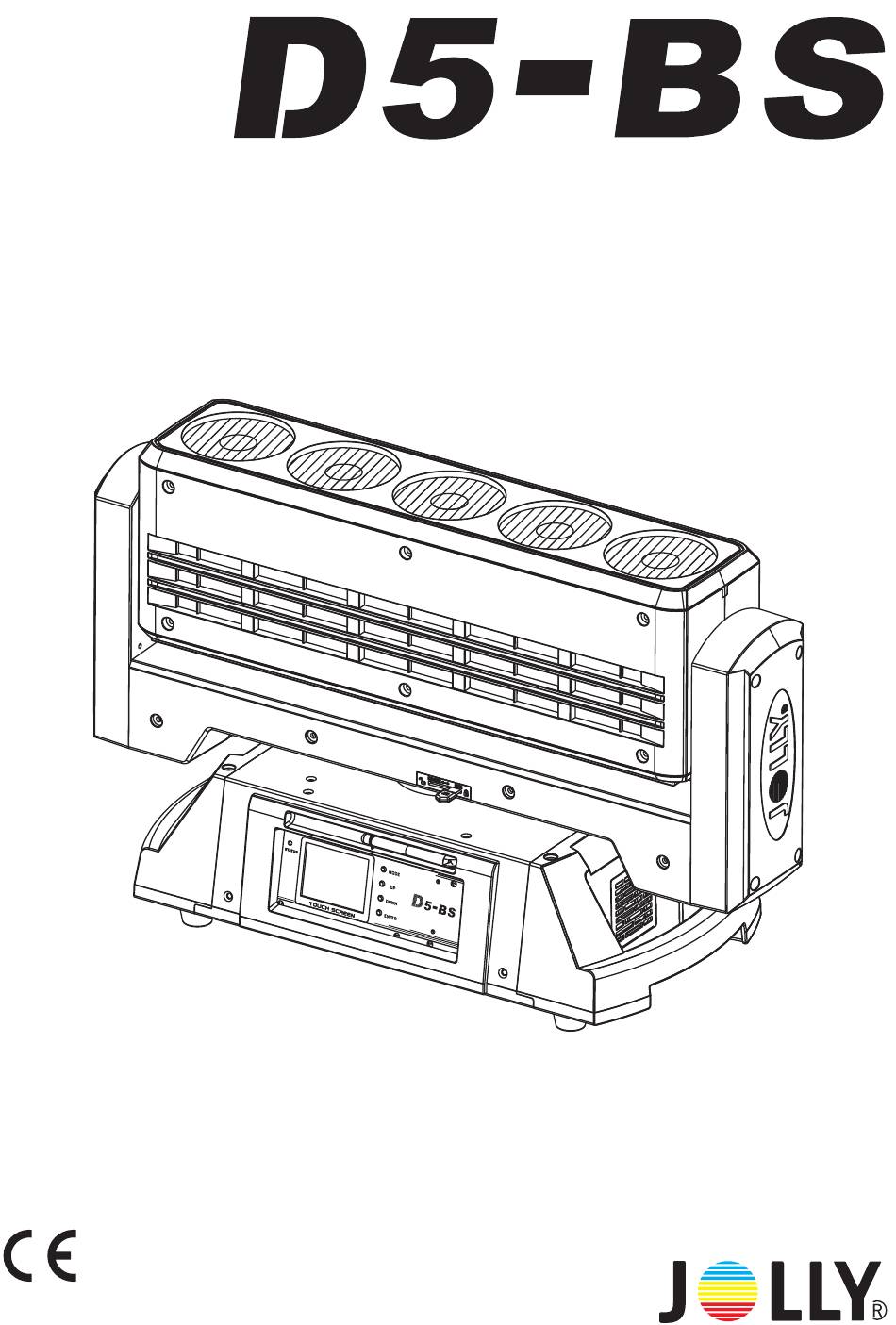

- Page 1 USER MANUAL Version:1.0...
-
Page 3: Table Of Contents
Table of content 1.Open-Package guidelines............... １.１Package......................1 2.Safety instructions..................1 3.Operating determination.................3 4.Rigging the fixture...................4 4.1 Mounting......................4 4.2Installing the Clamps..................4 4.3 Power supply connection and cut off..............5 4.4 Power Connection.....................6 4.5 DMX-512 connection/connection between fixtures...........6 Description of the device............ - Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.
-
Page 5: Open-Package Guidelines
1.Open-Package guidelines -This equipment is made of new style,high intensity plastic. It fully shows the modem times light charac teristic with teristic with beauty struture. And it is made accord to CE standard. Fully agree with the interna- tion standard of DMX 512 agreement. - Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.
-
Page 7: Operating Determination
Disposing This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/recycde this product at the end of its life according to the local regulation. Battery This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To pre- serve the environment,please dispose the battery at the end of its life according to the regul- ation in force. -
Page 8: Rigging The Fixture
4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE. Installation by qualified staff to complete. For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different accessories kits are available. Through this a safe and firm installation is assured. You’ll find special connectors on the bottom side of the system which are put to use here. -
Page 9: Power Supply Connection And Cut Off
The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc. -
Page 10: Power Connection
4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US) -
Page 11: Description Of The Device
5.Description of the device Head 360 unlimited rotating 360 unlimited rotating. 17.WDMX wire (No pulling out to avoid damaging of collision to arm.) Base BACK PANEL 3-pin XLR female Network interface Power-in Power switch Insurance seat Network interface 3-pin XLR male 16 12 13 CINTROL PANEL Status indicator lamp... -
Page 12: Dimension
6.Dimension (5" ) (20.35") (6.69") " ) (24.45") 1 3. 5 4 ") (9.92") (19.17" ) - 8 -... -
Page 13: Display Control
7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface. - Page 14 Click on the main interface of the icon, numerical to view view Settings related information of lamps and lanterns.Symbols such as the main interface appear “ “,the following error message indicates that there might be a lamps and lanterns,can click to view and control information content to modify the lamps and lanterns.
-
Page 15: Menu List
7.3 Menu list Remark Universe 0~255 Basic Engine DMX Address 000~XXX Universe 0~255 Strobe Engine DMX Address 000~XXX Pixels Engine Universe 0~255 Fixture Id 0001~9999 Lamps address Mode 1 1~29 Mode 2 1~38 Mode 3 1~58 Channel Mode default Mode1 Mode 4 1~66 Mode 5... -
Page 16: Dmx Protocol
8.DMX protocol Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value Black→Red 0-100% 0-255 Red fine Red fine 0-255 Green Black→Green 0-100% 0-255 Green fine Green fine 0-255 Blue Black→Blue 0-100% 0-255 Blue fine Blue fine 0-255 White Black→White 0-100% 0-255 White fine White fine... - Page 17 Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value Dark Green 134-135 Mauve 136-137 Bright Pink 138-141 Medium Blue 142-144 Deep Golden Amber Pale Lavender Special lavender 147-148 Primary Green 149-150 Bright Blue 151-156 Apricot 157-161 Pale Gold 162-167 Macro colour Deep Orange 168-171...
- Page 18 Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value Strobe pixel Ethernet control control 88-92 Strobe channel merger (default) 93-97 Strobe independence 98-102 Stroboscopic crosswise (default) 103-107 Function Stroboscopic arrangement 108-112 Flashing up and down 103-117 PAN / TILT RESET 118-122 Unused range 128-255...
- Page 19 Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value White LED 3 White 0-100% 0-255 Red LED 4 Red 0-100% 0-255 Green LED 4 Green 0-100% 0-255 Blue LED 4 Blue 0-100% 0-255 White LED 4 White 0-100% 0-255 Red LED 5 Red 0-100% 0-255...
-
Page 20: Maintance And Cleaning
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value Pixels 2 Dimmer Pixels 2 Dimmer 0-100% 0-255 Pixels 2 Shape Fade Pixels 2 Shape Fade 0-255 Pixels 2 Shape Pixels 2 Shape Speed 0-255 Speed Pixels 3 R Pixels 3 R 0-100% 0-255 Pixels 3 G Pixels 3 G 0-100%... -
Page 21: Weight And Dimensions
10.2 Weight and dimensions Dimensions：621X252X381 NET WEIGHT:20Kg (Carton Package): Dimensions 735X470X390 (Carton Package): WEIGHT 25.5Kg （Flight Case -2 lights): Dimensions 1260X680X558 (Flight Case -2 lights): NET WEIGHT/WEIGHT 71Kg/159Kg 10.3 Channel Characteristics ．2 、3 、 、 6、 8 58 6 158、186 Se ven standard DMX channel mo del. -
Page 22: Electronic Drawing
11.Electronic drawing Note: The above contents for reference only and is subject to change without prior notice, please take specification you have on hand and our company reserves the final right of interpretation. - 18 -... - Page 24 ht tp: //www.jol lyl ight ing. com Guangzhou hongcai stage equipment Co.,Ltd Tel:+862084558833 Fax:+862084559699 Email:info@jollylighting.com P.C:511450 Add:Building2,No.32,Changsha Street,Shachong Village,shiji Tow.Panyu District,Guangzhou,China...
