Summary of Contents for Jolly A-14 Coupe

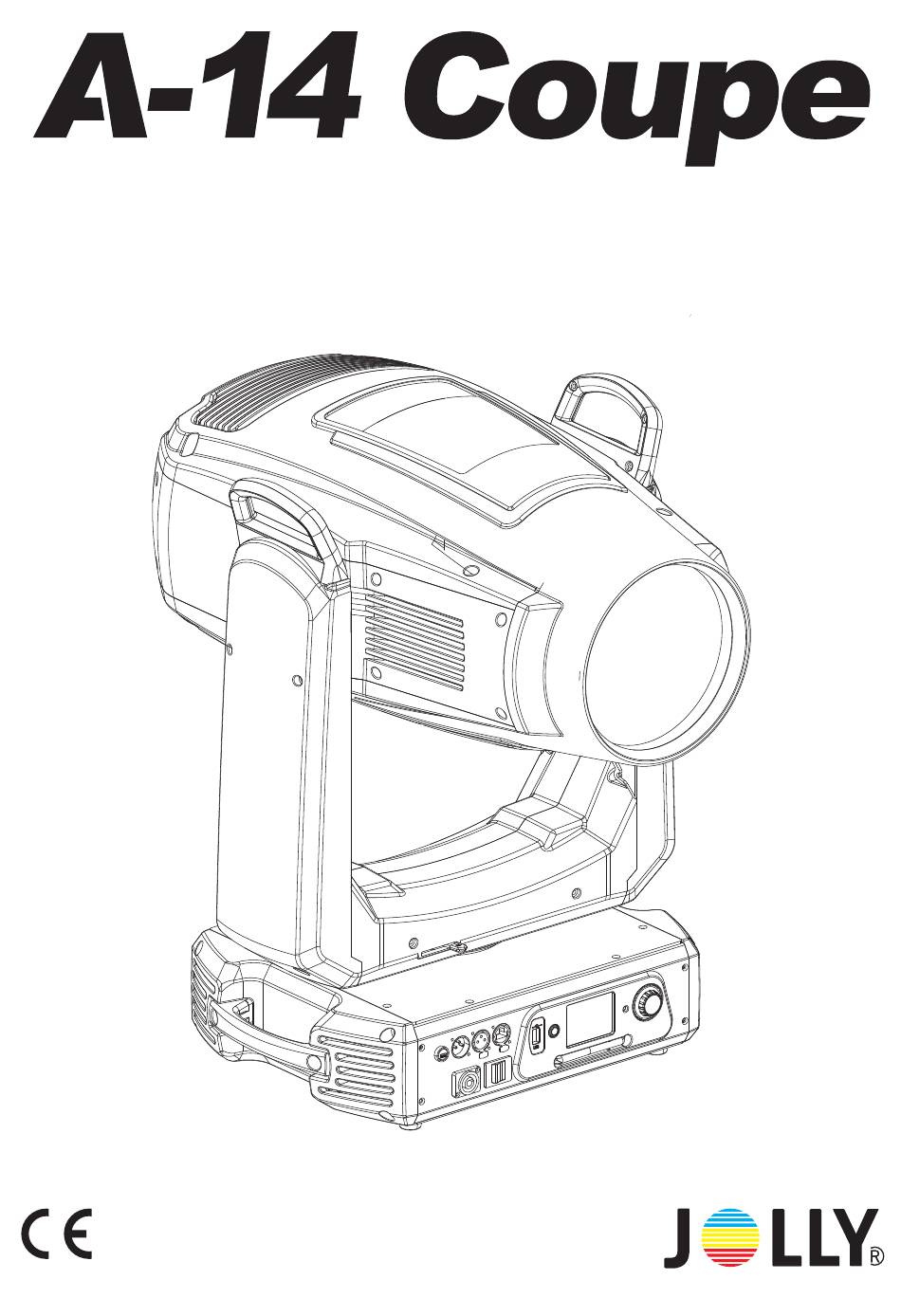

  • Page 1 USER MANUAL Version:1.0...
  • Page 3: Table Of Contents

    Table of content 1.Open-Package guidelines................1 1.1Package....................1 2.Safety instructions..................1 3.Operating determination................3 4.Rigging the fixture..................4 4.1 Mounting....................4 4.2 Installing the Clamps................4 4.3 Power supply connection and cut off...........5 4.4 Power Connection..................6 4.5 DMX-512 connection/connection between fixtures......6 Description of the device................7 Dimension......................8 Display control....................9 Navigation in the Menu................9 Display Operation..................9 Menu ......................10...
  • Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.
  • Page 5: Open-Package Guidelines

    1.Open-Package guidelines Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using inform ation of this pro ducts.Plese refere this manual's relative instruction when using this equipment.
  • Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.
  • Page 7: Operating Determination

    Protection against electrical shock Connection must be made to a power supply system fitted with efficient earthing (Class I app- liance according to standard EN 60598-1) .It is, moreover, recommended to protect the supply lines of the projectors from indirect contact and/orshorting to earth by using appropriately sized residual current devices.
  • Page 8: Rigging The Fixture

    If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers like short-circ- uit,burns, electric shict,burns due to ultraviolet radiation,lamp explosion,crash etc. 4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE.
  • Page 9: Power Supply Connection And Cut Off

    The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc.
  • Page 10: Power Connection

    4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US)
  • Page 11: Description Of The Device

    DMX Terminator Diagram -For installations where the DMX cable has to run a long distance or is In an electrically noisy environment it is recommended to use a DMX terminator. This help in preventing corruption of the signal by electrical noise. The DMX terminato r is simply an XLR plug witha Ω...
  • Page 12: Dimension

    6.Dimension - 8 -...
  • Page 13: Display Control

    7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface.
  • Page 14: Menu

    7.3 Menu DMX Address 001*-XXX Mode1* 1-54 Channel Mode Mode2 1-35 Fixture Id 000*-512 Wire Input* DMX Setup Wileless Input Dmx Input Wireless IN/XLR Out Under the module with Ethernet input Ethernet IN/XLR Out ON*/OFF Pan Invert ON/OFF* Tilt Invert ON/OFF* Feedback ON*/OFF...
  • Page 15: Dmx Protocol

    8.DMX protocol Fade Type Function Dmx Value Mode1 Mode2 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Standard mode (0=default) Pan/Tilt speed Speed from max. to min 1-255 Unused Range 0-19 To activate following functions, stop in DMX value for at least 3 s and shutter must be closed at least 3 sec.
  • Page 16 Mode1 Mode2 Fade Type Function Dmx Value Selected LED Frequency LED Frequency (step -126) LED Frequency (step -125) LED Frequency (step -124) LED Frequency (step -3) LED Frequency (step -2) LED Frequency (step -1) LED frequency fine Selected LED Frequency (128=default) adjusting LED Frequency (step +1) LED Frequency (step +2)
  • Page 17 Mode1 Mode2 Fade Type Function Dmx Value Open Whatever Position Open → Slot5 1-127 Open 128-129 Stepped Scroll(snap to full color pisitions) Slot1 130-141 Slot2 142-153 Slot3 154-165 Color 2 Slot4 166-177 Slot5 178-189 Continuous Rotation CW , Fast → Slow CW 190-215 Stop(This will stop the color wheel wherever it is at the time) 216-217...
  • Page 18 Mode1 Mode2 Fade Type Function Dmx Value Filter 128 51-52 Filter 131 53-54 Filter 132 55-56 Filter 134 57-58 Filter 135 59-60 Filter 136 61-62 Filter 137 63-64 Filter 138 65-66 Filter 139 67-68 Filter 141 69-70 Filter 147 71-72 Filter 148 73-74 Filter 152...
  • Page 19 Fade Type Function Dmx Value Mode1 Mode2 Functi on is off (0=d efaul t) CMY+CTO+Colour wheel s time Tim e of CMY, CTO and Colour wheels movement (0.1sec -->25.5sec) 1-255 Functi on is off Framing Time of framing shutters, zoom, focus, iris and frost movement (0.1sec-->25.5 1-255 shu tters /Zoom/ Focus sec)
  • Page 20 Mode1 Mode2 Fade Type Function Dmx Value Gobo 1 32-35 Gobo 2 36-40 Gobo 3 41-44 Gobo 4 45-49 Gobo 5 50-54 Gobo 6 55-59 Shaking gobos from slow to fast Index - set indexing on channel Mode1:27/25 ,Mode2:13 Gobo 1 60-71 Gobo 2 72-83...
  • Page 21 Fade Type Function Dmx Value Mode1 Mode2 Gobo Shakes at variable speed from slow to fast. Gobo1 43-62 Gobo2 63-82 Gobo3 83-102 Gobo4 103-122 Gobo5 123-142 Static gobos Gobo6 143-162 Gobo7 163-182 Gobo8 183-202 Empty position 203-222 Forwards gobo wheel rotation from fast to slow 223-237 No rotation 238-240...
  • Page 22 Fade Type Function Dmx Value Mode1 Mode2 Open position 0-19 Prism 2 indexing - set position on channel 35/18 20-73 Prism 2 rotation - set position on channel 35/18 74-127 The following channels are blocked: Prism 1, Prism 1 indexing/ rotation, Rotating gobo 1/2 wheel, Rot.
  • Page 23 Mode1 Mode2 Fade Type Function Dmx Value Open From max. diameter to min. diameter 1-179 Closed 180-191 Pulse opening from slow to fast 192-219 Iris Pulse closing from fast to slow 220-247 Random pulse opening (fast) 248-249 Random pulse opening (slow) 250-251 Random pulse closing (fast) 252-253...
  • Page 24: Maintance And Cleaning

    Fade Type Function Dmx Value Mode1 Mode2 Unused range 0-15 autofocus priority BLADE 16-75 Autofocus autofocus priority rotation gobo 76-135 Adjustment autofocus priority Animation 136-195 autofocus priority Iris 196-255 Close 0-31 Shutter Open 32-63 Strobe-effect from slow to fast 64-95 Shutter Open 96-127 Stopper/Strobe...
  • Page 25: Electric Equipment Specification

    It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably through out its life.
  • Page 26: Menu Function

    10.4 Menu Function Touch screen,English/Chinese menu 2.Each DMX Value displayable. 3.Time of automatic turning off is able to set on the display, 4. Display the time using of lighting feature and lamp as well as the times of turning on for lamp. 5 .
  • Page 27: Gobo Wheel

    10.6 Gobo wheel Fix gobo wheel Inside diameter 159mm ,effective diameter 24mm/ Effect wheel, Inside diameter 120mm Rotating pattern sheet Glass design Inside diameter32mm,effective diameter 24mm. - 23 -...
  • Page 28: Color Wheel

    10.7 Color wheel Light pink CRI 90 Green blue Amber Dark blue blue CRI 80 Light Green orange Green Lavemder - 24 -...
  • Page 29: Electronic Drawing

    11.Electronic drawing 40 Fan BL ADE Cooli ng Fan RS485 RS485 Power Supply RS485 RS485 Titl EN Pan EN Titl Sensor Pan Sensor Titl Motor Motor CN17 CN16 RS485 CN18 GOBO Cooli ng Fan4 RS485 RS485 Power Supply Powe r Cooli ng Fan 80 25 Powe r Cooli ng Fan 80 25...
  • Page 30 http://www.jollylighting.com Guangzhou hongcai stage equipment Co.,Ltd Tel:+862084558833 Fax:+862084559699 Email:info@jollylighting.com P.C:511450 Add:No.30,Changsha Street,Shachong Village,shiji Tow.Panyu District,Guangzhou,China...
