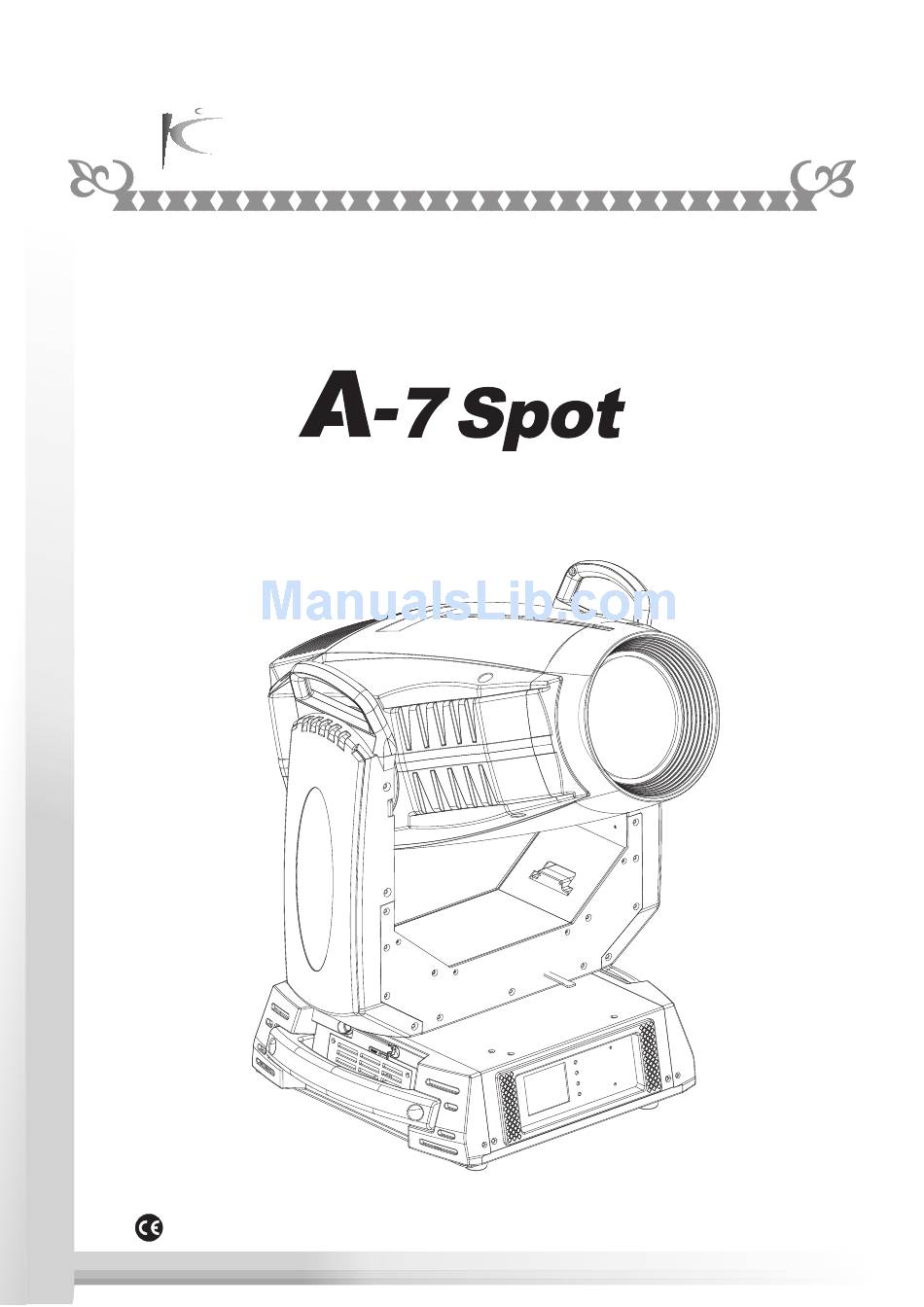

Page 1: User Manual
USER MANUAL Professional stage lighting equipment... -
Page 2: Table Of Contents
Table of content 1.Open-Package guidelines............1 １.１Package................1 2.Safety instructions..............1 3.Operating determination.............3 4.Rigging the fixture...............4 4.1 Mounting.................4 4.2Installing the Clamps..............4 4.3 Power supply connection and cut off........5 4.4 POWER Connection..............6 4.5 DMX-512 connection/connection between fixtures....6 Description of the device..............7 Dimension..................8 Display control................9 Navigation in the Menu............9 Display OPeration..............9 Menu Maps ................11... -
Page 3: Open-Package Guidelines
1.Open-Package guidelines Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using inform ation of this pro ducts.Plese refere this manual's relative instruction when using this equipment. - Page 4 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.
-
Page 5: Operating Determination
lines of the projectors from indirect contact and/orshorting to earth by using appropriately sized residual current devices. Disposing This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/recycde this product at the end of its life according to the local regulation. -
Page 6: Rigging The Fixture
4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE. Installation by qualified staff to complete. For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different accessories kits are available. Through this a safe and firm installation is assured. You’ll find special connectors on the bottom side of the system which are put to use here. -
Page 7: Power Supply Connection And Cut Off
The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc. -
Page 8: Power Connection
4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US) -
Page 9: Description Of The Device
DMX Terminator Diagram -For installations where the DMX cable has to run a long distance or is In an electrically noisy environment it is recommended to use a DMX terminator. This help in preventing corruption of the signal by electrical noise. The DMX terminato r is simply an XLR plug witha Ω... -
Page 10: Dimension
17.WDMX wire 6.Dimension... -
Page 11: Display Control
7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface. - Page 12 *Click on the main menu of the icon and value to view set of the relevant lighting information. If there is symbol of the " " on the display, it indicates that the device may be wrong , if the symbol was blue, the contents are errors appeared, click to clear.
-
Page 13: Menu Maps
7.3 Unit Menu Remark Dmx Address 001~XXX Dmx Address Mode1 1~24 Set up Channel Mode default Mode1 Mode2 1~24 Mode3 1~27 Fixture Id 0001~9999 Lamps address Fixture Times XXXXX h XX m Total working hours Led Times XXXXh XXm Led working hours LED Times Reset Led Time Reset Led Time... -
Page 14: Dmx Protocol
8.DMX protocol Mode 1Mode 2Mode 3 Fade Type Function Dmx Value 0-255 Pan Fime Pan Fime 0-255 Tilt Tilt 0-255 Tilt Fime Tilt Fime 0-255 Whatever Position Empty position White→ red 1-19 red→green 21-39 green green→blue 41-59 blue blue→orange 61-79 orange orange→pink 81-99... - Page 15 Mode1 Mode2 Mode3 Fade Type Function Dmx Value Gobo 3 103-132 Gobo 4 133-162 Rotation Gobo 5 163-192 Gobo Gobo 6 193-222 Forwards gobo wheel rotation from fast to slow 223-237 Select No rotation 238-240 Backwards gobo wheel rotation from slow to fast 241-255 Gobo indexing - set position on channel 10/8/9 Gobo indexing...
- Page 16 Mode1 Mode2 Mode3 Fade Type Function Dmx Value Zoom Zoom linearly moves from narrow to wide beam 0-255 Zoom Fine Fine Zoom positioning Focus Focus moves linearly from far to near position 0-255 Focus Fine Fine focus positioning 0-255 Close STROBE SLOW→FAST 4-103 OPen...
-
Page 17: Maintance And Cleaning
9.Maintance and cleaning DANGER:Disconnect from the mains before starting any maintenance work. It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably through out its life. -
Page 18: Light Table
2.Each DMX Value displayable. 3. Time of automatic turning off is able to set on the display,when operating pan/tilt,Color and gobos, gobos, strobe are turn off and able to set freely. 4. Display the time using of lighting feature and lamp as well as the times of turning on for lamp. 5 . -
Page 19: Gobo Wheel
