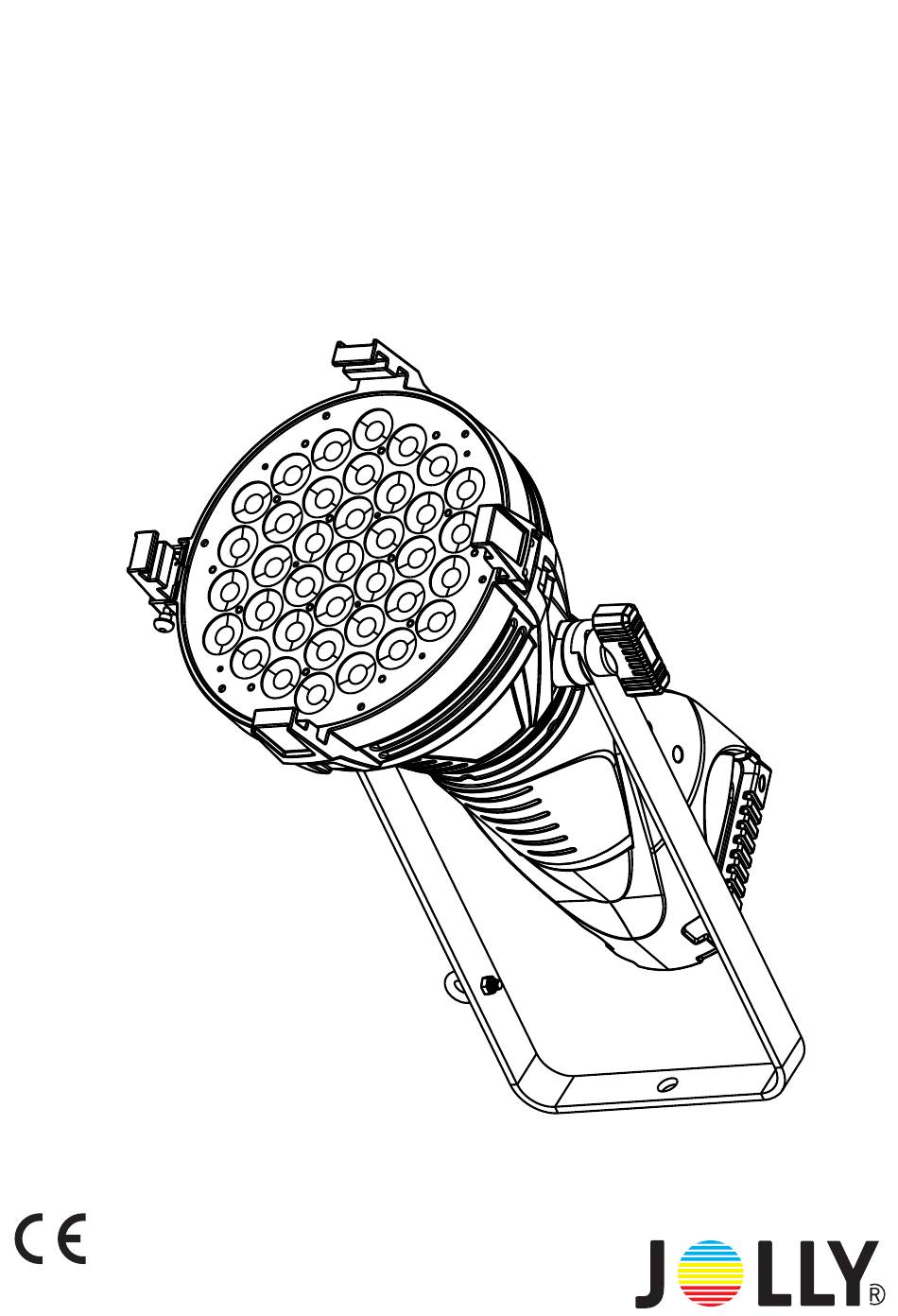

- Page 1 LP-H400 USER MANUAL Version:1.0...
-
Page 3: Table Of Contents
Table of content 1.Open-Package guidelines................ １.１Package....................1 2.Safety instructions..................1 3.Operating determination................3 4.Rigging the fixture..................4 4.1 Mounting....................4 4.2Installing the Clamps................4 4.3 Power supply connection and cut off.............5 4.4 Power Connection.................5 4.5 DMX-512 connection/connection between fixtures.......6 Description of the device............ - Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.
-
Page 5: Open-Package Guidelines
1.Open-Package guidelines This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac teris- tic with teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation standard of DMX 512 agreement. - Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.
-
Page 7: Operating Determination
Disposing This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/recycde this product at the end of its life according to the local regulation. Battery This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To pre- serve the environment,please dispose the battery at the end of its life according to the regul- ation in force. -
Page 8: Rigging The Fixture
4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE. Installation by qualified staff to complete. For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different accessories kits are available. Through this a safe and firm installation is assured. You’ll find special connectors on the bottom side of the system which are put to use here. -
Page 9: Power Supply Connection And Cut Off
The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc. -
Page 10: Dmx-512 Connection/Connection Between Fixtures
Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! 4.5 DMX-512 connection/connection between fixtures Only use stereo shieded cable and 3-pin XLR-plugs and connectors in order to connect. Caution At the last fixture,the DMX-cable has to be terminated with a terminatou. solder a 120 resistor between signal(-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture. -
Page 11: Description Of The Device
5.Description of the device 1.Shade leaf 2.Head 3.Lamp tubes 4.Arm 5 Power in 3-pin XLR male 7.MODE button 8.Display 9.UP button 10.DOWNR button 11.ENTER button 3- pin XLR female 13 Power Out - 7 -... -
Page 12: Dimension
6.Dimension - 8 -... -
Page 13: Display Control
7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface. -
Page 14: Dmx Protocol
8.DMX protocol Mode 1 Mode 2 Fade Type Function Dmx Value Dimmer Dimmer 0-100% 0-255 Dimmer Fine Dimmer Fine 0-100% 0-255 No function (shutter Close) Strobe effect slow to fast 1-95 No function (shutter open) 96-127 Strobe Pulse-effect in sequences 128-159 No function (shutter open) 160-191... -
Page 15: Electric Equipment Specification
10.Electric equipment specification 10.1 Electrical paramters SOURCE: White LED-10W POWER:400 VOLTAGE: AC100-240V 50/60HZ 10.2 Weight and dimensions Dimensions： (WXHXD)：275X268X516mm NET WEIGHT:6.8Kg (Carton Package): Dimensions 630X375X395mm (Carton Package): WEIGHT （Flight Case -6 lights): Dimensions 1193X555X853 10.3 Channel Characteristics Channel: 4/6 DMX-512. 2.37PCS LED 3.dimmer:Full range dimming. -
Page 16: Electronic Drawing
11.Electronic drawing LED-IN CH-4 CH-3 CH-2 CH-1 +57V DC-IN +12V 92*92FAN D-DMX D-DMX Switch Power Supply FUSE Note: The above contents for reference only and is subject to change without prior notice, please take specification you have on hand and our company reserves the final right of interpretation. - 12 -... - Page 18 ht tp: //www.jol lyl ight ing. com Guangzhou hongcai stage equipment Co.,Ltd Tel:+862084558833 Fax:+862084559699 Email:info@jollylighting.com P.C:511450 Add:Building2,No.32,Changsha Street,Shachong Village,shiji Tow.Panyu District,Guangzhou,China...
