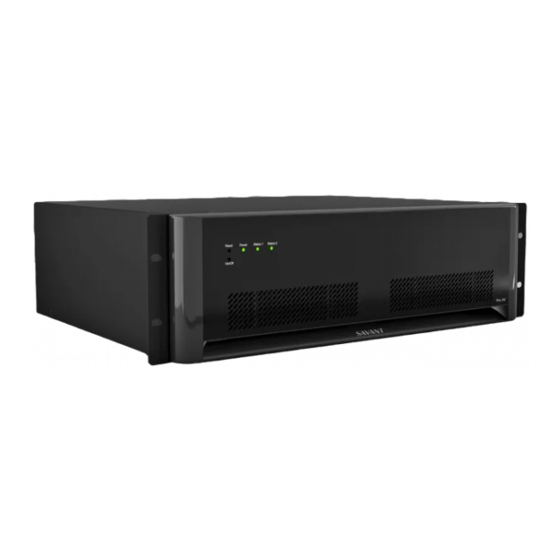

Savant PAV-VIM8S Deployment Manual
Ip video
Hide thumbs
Also See for PAV-VIM8S:
- Deployment manual (29 pages) ,
- Quick reference manual (3 pages) ,
- Deployment manual (28 pages)
Table of Contents
Advertisement
Quick Links
Savant® IP Video
PAV-VIM8S, PAV-VIM4S, PAV-VIMVP1F, PAV-VIMVP1C, PAV-VIM1C
PAV-VOMVP1F, PAV-VOMVP1C, PAV-VOM1C
Deployment Guide
Document Number:
009-1551-04
Document Date:
July 2019
Document Supports:
da Vinci 8.8 and higher
Copyright © 2019 Savant Systems, LLC
- 1 -
45 Perseverance Way, Hyannis, MA 02601
Savant.com
| 508.683.2500
Advertisement
Table of Contents
Related Manuals for Savant PAV-VIM8S
Summary of Contents for Savant PAV-VIM8S
- Page 1 Savant® IP Video PAV-VIM8S, PAV-VIM4S, PAV-VIMVP1F, PAV-VIMVP1C, PAV-VIM1C PAV-VOMVP1F, PAV-VOMVP1C, PAV-VOM1C Deployment Guide Document Number: 009-1551-04 Document Date: July 2019 Document Supports: da Vinci 8.8 and higher Copyright © 2019 Savant Systems, LLC 45 Perseverance Way, Hyannis, MA 02601 - 1 - Savant.com...
-
Page 2: Table Of Contents
6.4. Adding a 10G Switch to a Configuration ..........25 3.1. Box Contents and Specifications ............. 6 6.5. Making 10G Connections ................26 3.2. PAV-VIM8S or PAV-VIM4S ................6 6.6. Source Profiles ....................27 3.3. PAV-VIMVP1F or PAV-VIMVP1C ..............8 6.7. - Page 3 Important Safety Information - Read First Safety Statements Before installing, configuring, or operating any equipment and other, Savant All safety instructions below should be read, understood, and applied under all recommends that each dealer, integrator, installer, etc. access and read all the relevant circumstances when working with this equipment.
-
Page 4: Introduction
Savant IP Video devices to a RacePoint Blueprint™ configuration. The figure below shows the basic application. The audio path can either come from the PAV-VIM8S as shown below, or it can be a separate output (Not HDMI) into an audio switch like the SSA-3220. -
Page 5: Deployment Steps
Displays that will be used in the system ..................................... 2. Deployment Steps Follow these steps to successfully deploy Savant IP Video devices. This page can be used as a checklist to record which steps have been completed. Review product specifications and connection details ................................ -
Page 6: Ip Video Equipment Overview
3. IP Video Equipment Overview 3.1. Box Contents and Specifications Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications. 3.2. PAV-VIM8S or PAV-VIM4S Front Panel Reboots the main board (mcu) and power cycles the... - Page 7 Direct Line Level 2.1 V Output. Push Buttons Reserved for future use. Ethernet 8-Pin RJ-45 female connection. Used to communicate with the Savant System Host. Reserved 8-Pin RJ-45 female connection; Reserved for future use. Grounding Chassis Ground (optional) Savant IP Video Deployment Guide Copyright ©...
-
Page 8: Pav-Vimvp1F Or Pav-Vimvp1C
Blue - Video signal detected. Off - Device is off. No power applied. Power LED Red - Main board is powered. Reserved for future use. RSVD Reserved for future use. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... - Page 9 Green Blinking - Indicates data activity. Link Activity LED Off – No Activity. 3.5 mm Analog Audio Output. Audio Requires HDMI input PCM audio format. Direct Line Level 2.1 V Output. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
-
Page 10: Pav-Vim1C
Blinking - Sending Ethernet Data. Off - No valid connection. Link RX LED Blue - Valid link. Blinking - Receiving Ethernet. Reserved for future use. RSVD Reserved for future use. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... - Page 11 Yellow Blinking - Indicates data activity. Link Activity LED Off – No Activity. 3.5 mm Analog Audio Output. Audio Requires HDMI input PCM audio format. Direct Line Level 2.1 V Output. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
-
Page 12: Pav-Vomvp1F Or Pav-Vomvp1C
Blue - Video signal detected. Off - Device is off. No power applied. Power LED Red - Main board is powered. Reserved for future use. RSVD Reserved for future use. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... - Page 13 3.5 mm Analog Audio Output. Requires HDMI input PCM audio format. Audio Direct Line Level 2.1 V Output. IMPORTANT! Support for this port requires da Vinci 8.9 or higher. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
-
Page 14: Pav-Vom1C
Blinking - Sending Ethernet Data. Off - No valid connection. Link RX LED Blue - Valid link. Blinking - Receiving Ethernet. Reserved for future use. RSVD Reserved for future use. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... - Page 15 3.5 mm Analog Audio Output. Audio Requires HDMI input PCM audio format. Direct Line Level 2.1 V Output. IMPORTANT! The PAV-VOM1C is not supported for audio only applications. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
-
Page 16: Wiring And Connections
4.3. 10G Ethernet Fiber (SFP+) Enhanced small form-factor pluggable connection. Use a Savant certified Direct Access Copper (DAC) SFP+ cable to connect the chassis to the 10G switch, or Savant certified fiber and fiber connectors along with Savant certified SFP+ modules. -
Page 17: Ir Wiring
Connector supplied with the device. The wire slips into the hole PIN 2 Transmit and locks with a screw located at the top of the connector. PIN 3 Receive PIN 4 Ground Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 18: Network
4.7. Network The PAV-VIMxS uses a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port is used for communication with the Savant Host. The VOMVP1x uses a shared Ethernet connection from its 10G connection. 4.8. AC Power Connection SURGE PROTECTION! Use a surge-protected circuit for all components and power supplies requiring 100/240V (AC 50/60 Hz) source power. -
Page 19: Installation
5.2. Install PAV-VOMVP1x/VIMVP1x The Savant IP Video Receiver or Transmitter can be placed on a solid flat surface or can be mounted on a wall with the included mounting brackets. If installing this unit behind a display, ensure enough air can pass though the grooves on the top of the unit. This will maximize heat dissipation. Savant recommends aligning the grooves vertically as shown below. -
Page 20: Install Pav-Vim1C/Vom1C
NOTE: This will leave an air gap behind the device. Replace the case screws attaching the bracket. If the device is going to be mounted vertically Savant recommends aligning the device with the rear of the device facing down. This will allow the best heat dissipation. - Page 21 10. Install each PAV-VIM1C with the bracket attached using the captive screws on the bracket. TIP: Savant recommends to space out the PAV-VIM1Cs when using the RCK-PAVVM8, if the rack mount is not full. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC...
-
Page 22: Blueprint Configuration
Required Devices – Savant Host – IP Video Transmitter – IP Video Receivers – 10G Network Switch – Video Sources – HD/UHD Displays 6.1. Basic Blueprint Layout Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 23: Adding A Pav-Vimxs To A Configuration
Place the Video IP Transmitter in the layout window. Select the Video Input IP Transmitter. Open Inspector. 10. Enter the UID. NOTE: The Ethernet connection is implied in Blueprint. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 24: Adding A Ip Video Output Receiver To A Configuration
Select the IP Video Output Receiver that is needed and drag it into the User zone that is will be used. Name the Device. Place the IP Video Receiver in the layout window. Select the IP Video Output Receiver. Open Inspector. 10. Enter the UID. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 25: Adding A 10G Switch To A Configuration
6.4. Adding a 10G Switch to a Configuration This process is to add a NetGear ProSafe M4300 10G network switch to the configuration. See Savant IP Video Network Configuration Guide on the Savant Customer Community for information on how to set up this device before its Video connection are made. In an open Blueprint configuration do the following. -
Page 26: Making 10G Connections
Right-click on the 10GbE (SFP) port. Highlight the M4300 8x8F then the desired SFP port and left-click. Repeat steps 5 to 7 for each Output in the system. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 27: Source Profiles
6.7. Expansion The Savant IP Video system has unlimited scalability. The limit is the amount of ports on the 10G switch. For instance, on a 96 port 10G Network switch: 1x95, 2x94, and so on up to 95x1. In addition, add as many receivers required in the installation based on the number of displays. -
Page 28: Best Practices
7. Best Practices Once the system is installed and the configuration has been uploaded to the Host, this section shows some best practices for testing a Savant IP Video system. Initial Audio and Video setup/testing should be done using the default EDID. The default EDID has support for PCM audio up to 8 channels and video resolutions up to 4k 60hz 4:2:0 8-bit. -
Page 29: System Monitor
Source Stable – Displays if video is received from the connected source. Current Audio Format – Displays current audio format. Not supported on the PAV-VIMxS, PAV-VIMVP1x, and PAV-VIM1C. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 30: Video/Audio Settings
Video stutter may occur due to frame rate conversion frame slips. – Output colorspace is always RGB 8bit. – Video latency depends on display to source synchronization time. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 31: Netgear Switch Information
The SFP+ ports start at 1. Selecting a Logical IO can take up to 20 seconds for the status information to fully populate. Port Information – Displays connection status of the connected port. This information is mainly used it troubleshooting. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 32: Appendix A: 10G Network Requirements
Output IP Receiver. If the cable length is more than 300ft (100m) it will require the use of a PAV-VOMVPF1 using a SFP+ port on the switch. Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 33: Appendix B: Accessories
High Speed Category HDMI 2.0 Cable (1,2, or 3 Meter) CBL-HDMI2M3-00 CBL-SFPDACM2-00 SFP+ Direct Attach Copper Cable (2 meter) FTK-F2000-01 Fiber Termination Kit FTK-FTEST-00 Fiber Test Kit Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... -
Page 34: Appendix C: Ups Recommendations
Appendix C: UPS Recommendations Savant does not recommend any particular brand or model UPS, however there are a couple of factors that should be considered. It is important that the UPS does not only work during complete power loss but protects devices and their functionality during events like surges and brownouts. It is not uncommon for a residence or small business to see variations in power service that do not result in a complete black-out. -
Page 35: Appendix D: Edid Optimization
HDMI to the HDMI to the HDMI to the HDMI used by the output) output) output) output) source analog outputs will output audio noise) Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717... - Page 36 (TVs are not (TVs are not (TVs are not outputs will HBR audio HBR audio HBR audio HBR audio output audio capable) capable) capable) capable) noise) Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
- Page 37 All HDMI Source audio Channel Channel Channel Channel HDMI audio HDMI audio audio input 2 Mode checked checked checked checked (Multichannel (Multichannel channel PCM PCM) PCM) only Savant IP Video Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1551-04 | 190717...
- Page 38 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
