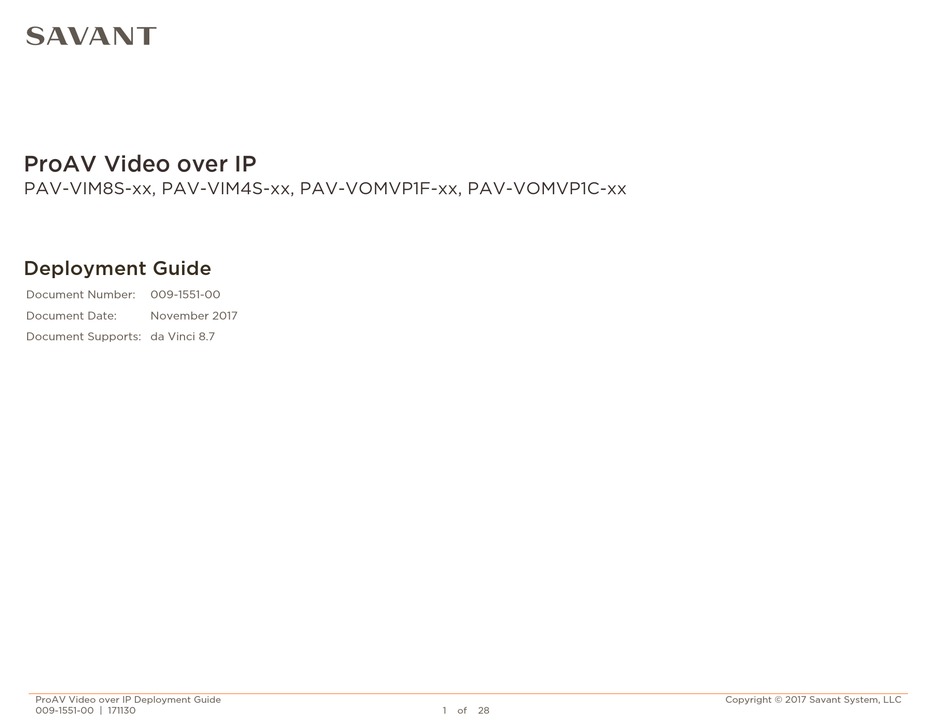

ProAV Video over IP
PAV-VIM8S-xx, PAV-VIM4S-xx, PAV-VOMVP1F-xx, PAV-VOMVP1C-xx
Deployment Guide
Document Number:
009-1551-00
Document Date:
November 2017
Document Supports: da Vinci 8.7
ProAV Video over IP Deployment Guide
009-1551-00 | 171130
1
of
28
Copyright © 2017 Savant System, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAV-VIM8S series and is the answer not in the manual?

Questions and answers

Related Manuals for Savant PAV-VIM8S series

Summary of Contents for Savant PAV-VIM8S series

  • Page 1 ProAV Video over IP PAV-VIM8S-xx, PAV-VIM4S-xx, PAV-VOMVP1F-xx, PAV-VOMVP1C-xx Deployment Guide Document Number: 009-1551-00 Document Date: November 2017 Document Supports: da Vinci 8.7 ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 2 Video/Audio Setting ..................21 Appendix A: 10G Network Requirements ..........22 Appendix B: Accessories ................23 Appendix C: UPS Recommendations ............24 Appendix D: EDID Optimization ..............25 ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 3 WEIGHT INJURY! objects have fallen into the apparatus, the apparatus has been Installing some of the Savant equipment requires two installers to exposed to rain or moisture, does not operate normally, or has been ensure safe handling during installation. Failure to use two installers dropped.

  • Page 4: Introduction

    1 Introduction The Savant ProAV Video over IP is a scalable UHD (4K) Video Matrix using a Savant verified 10G network switch. This document will guide the installer through the process of installing, configuring, and adding Savant ProAV Video over IP devices to a RacePoint Blueprint® configuration.

  • Page 5: Before You Begin

    4. Unique IDs (UID) of the ProAV Video over IP devices ..................(located on the back of the units) 5. Savant Pro Host licensed and running da Vinci 8.7 or higher ................. (Mac based Pro Host only) 6. Savant Development Environment (SDE/MacBook®) ..................

  • Page 6: Deployment Steps

    2 Deployment Steps Follow these steps to successfully deploy Savant ProAV Video over IP devices. This page can be used as a checklist to record which steps have been completed. 1. Review product specifications and connection details ..................ProAV Video over IP Equipment Overview 2.

  • Page 7: Proav Video Over Ip Equipment Overview

    3 ProAV Video over IP Equipment Overview 3.1 Box Contents and Specifications Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications. 3.2 ProAV Video Input IP Transmitter Front Panel...
  • Page 8 Direct Line Level 2.1-V Output Push Buttons Reserved for future use. Ethernet 8-Pin RJ-45 female connection. Used to communicate with the Savant System Host. Reserved 8-Pin RJ-45 female connection; Reserved for future use Grounding Chassis Ground (optional) ProAV Video over IP Deployment Guide Copyright ©...

  • Page 9: Proav Video Output Ip Receiver

    Off - Device is off. No power applied. Power LED Red - Main board is powered Reserved for future use. RSVD Reserved for future use. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 10 Link LED Off – No link established Green Blinking - Indicates data activity. Link Activity LED Off – No Activity Audio Out Reserved for future use. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 11: Wiring And Connections

    4.2 10G Ethernet Fiber (SFP+) Enhanced small form-factor pluggable connection. Use a Savant certified Direct Access Copper (DAC) SFP+ cable to connect the chassis to the 10G switch, or Savant certified fiber and fiber connectors along with Savant certified SFP+ modules.

  • Page 12: Ir Wiring

    Serial control connection are made using a 4-pin Control Connector supplied with the device. The wire slips into the hole and locks with a screw located at the top of the connector. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 13: Network

    Power Management Recommendations Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut down the Savant Host before the battery runs out of power. Never remove power from the Savant Video over IP devices before shutting it down. See...

  • Page 14: Installation

    The ProAV Video Output IP Receiver can be placed on a solid flat surface or can be mounted on a wall with the included mounting brackets. If installing this unit behind a display, ensure enough air can pass though the grooves on the top of the unit. This will maximize heat dissipation. Savant recommends aligning the grooves vertically as shown below.

  • Page 15: Blueprint Configuration

    ProAV Video over IP Transmitter – ProAV Video over IP Recevier – 10G Network Switch – Video Sources – HD/UHD Displays 6.1 Basic Blueprint Layout ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 16: Adding A Video Input Ip Transmitter To A Configuration

    7. Place the Video IP Transmitter in the layout window. 8. Select the Video Input IP Transmitter. 9. Open Inspector. 10. Enter the UID. NOTE: The Ethernet connection is implied in Blueprint. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 17: Adding A Video Output Ip Receiver To A Configuration

    6. Name the Device. 7. Place the Video IP Transmitter in the layout window. 8. Select the Video Input IP Transmitter. 9. Open Inspector. 10. Enter the UID. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 18: Source Profiles

    6.5 Expansion The Savant ProAV Video over IP system has unlimited scalability. The limit is the amount of ports on the 10G switch. For instance, on a 24 port 10G Network switch: 1x23, 2x22, and so on up to 23x1. In addition, add as many receivers required in the installation based on the number of displays.

  • Page 19: Best Practices

    4k 60hz 4:2:0 8-bit. Testing Every source should be tested with every A/V zone. Savant recommends testing a single source with one A/V zone at a time. Activate the first Video source to a single Zone. Does Video pass? NO: Check System Monitor for the resolution of the Input and then the output, Scale the VOM to 1080p.

  • Page 20: System Monitor

    Source Stable – Displays if video is received from the connected source. Multi Channel Downmix – Displays the status of Audio down mixing. Not all devices have audio down mixing. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 21: Video/Audio Setting

    – 24 Hz: Refresh Rate of 24 frames per second. NOTE: Savant recommends not making changes to the Frame Rate whenever possible. Multi to 2 Channel – Check box to enable audio down mixing. This is only available on the VOMVP1x devices.

  • Page 22: Appendix A: 10G Network Requirements

    Output IP Receiver. If the cable length is more than 300ft (100m) it will require the use of a PAV-VOMVPF1 using a SFP+ port on the switch. ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 23: Appendix B: Accessories

    Duplex OM3 Indoor/Outdoor Plenum Rated Multi-Mode Fiber (1000ft) CBL-SFPDACM2-00 SFP+ Direct Attach Copper Cable (2 or 3 meter) CBL-SFPDACM3-00 FTK-F2000-00 Fiber Termination kit FTK-FTEST-00 Fiber Test Kit ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...

  • Page 24: Appendix C: Ups Recommendations

    IMPROTANT! Be VERY CAUTIOUS using with a UPS with the ability to cycle power an outlet remotely, devices with hard drives DO NOT like to be power cycled in this manner, and will be damaged by this action. Savant Hosts in particular need to be shut down correctly in order to restart correctly when power is restored.

  • Page 25: Appendix D: Edid Optimization

    HDMI the HDMI the HDMI the HDMI audio noise) output) output) output) output) ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 26 (TVs are not (TVs are not (TVs are not (TVs are not HBR audio HBR audio HBR audio HBR audio capable) capable) capable) capable) ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 27 Source audio Channel Channel Channel Channel audio audio input 2 channel Mode audio checked checked checked checked (Multi- (Multi- PCM only channel channel PCM) PCM) ProAV Video over IP Deployment Guide Copyright © 2017 Savant System, LLC 009-1551-00 | 171130...
  • Page 28 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
