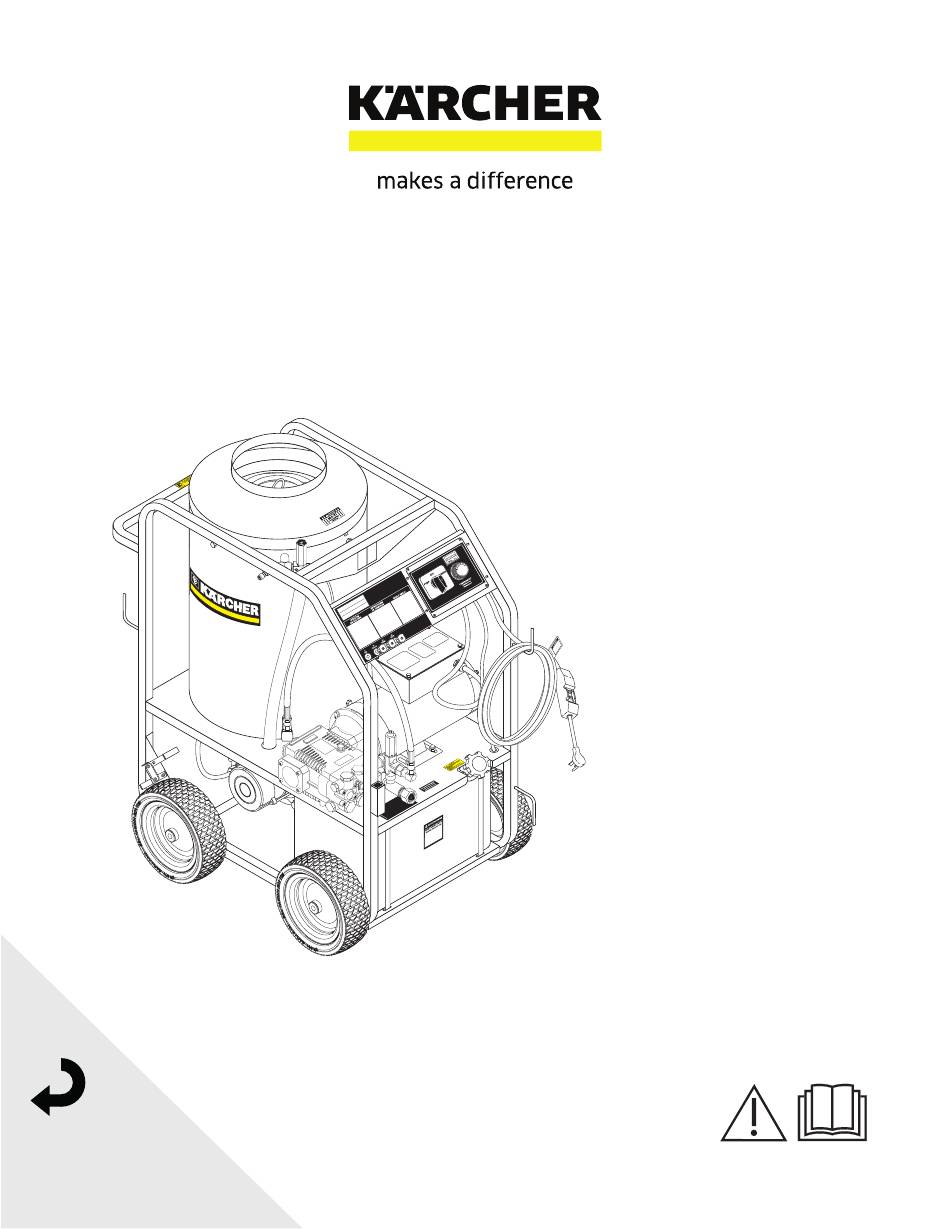

- Page 1 English..3 High pressure cleaner Electric motor - Hot water MODELS: 1.575-511.0 HDS 2.0/10 Ed Cage 1.575-512.0 HDS 1.9/15 Ed Cage 1.575-513.0 HDS 3.5/20 Ea Cage Register 9.800-191.0 - G (07/22) your product www.kaercher.com/welcome...
-
Page 2: Table Of Contents
CONTENTS Introduction and Safety Information Component Identification Operating Instructions Preventative Maintenance and Service 10-12 Exploded Views 13-14 Exploded Views Parts List 15-16 Control Panel Exploded View and Parts List Hose & Spray Gun Assembly and Parts List Downstream Injector Assembly and Parts List UU1 Unloader Exploded View and Parts List Pump Exploded View and Parts List 21-24... -
Page 3: Introduction And Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION single phase this product should only be connected Thank you for purchasing this Pressure Washer. to a power supply receptacle protected by a GFCI. We reserve the right to make changes at any time DANGER: Improper connection of the equipment- without incurring any obligation. - Page 4 IMPORTANT SAFETY INFORMATION WARNING: Risk of fire — Do not WARNING: Hot discharge fluid. WARNING WARNING add fuel when the product is Do not touch or direct discharge operating or still hot. stream at persons. AVERTISSEMENT: Liquide de AV E R T I S S E M E N T: R i s q u e décharge chaud.
- Page 5 IMPORTANT SAFETY INFORMATION WARNING: High pressure devel- WARNING: Be extremely careful WARNING WARNING oped by these machines will when using a ladder, scaffolding cause personal injury or equip- or any other relatively unstable ment damage. Keep clear of location. The cleaning area nozzle.
- Page 6 IMPORTANT SAFETY INFORMATION INSTALLATION Place machine in a convenient location providing ample support, draining and room for maintenance. This machine is intended for indoor use. Machine must be stored indoors when not in use. Location: The location should protect the machine from damag- ing environmental conditions, such as wind, rain, and freezing.
-
Page 7: Component Identification
COMPONENT IDENTIFICATION C A U T I O N H O T WAT E R : Must use insulated spray gun and wand. Nozzle ON - OFF Switch Hour Meter Adjustable Thermostat Downstream Detergent Injector GFCI Wand Holder Fresh Water Faucet (not included) Discharge... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Electrical: 6. Securely attach the desired high pressure nozzle into wand coupler as described in steps 4 and 5. This machine, when installed, must be electrically grounded in accordance to local codes. Check for 7. Connect the power cord into the proper electrical proper power supply using a volt meter. - Page 9 OPERATING INSTRUCTIONS 4. Place detergent pick-up tube into container of HOW TO USE THE detergent solution. DETERGENT INJECTOR 5. Turn pressure control handle counterclockwise on the variable pressure wand. This lowers the pres- WARNING: Some detergents sure by directing the water flow through the soap WARNING may be harmful if inhaled or in- nozzle and allows the detergent injector to siphon...
-
Page 10: Preventative Maintenance And Service
PREVENTATIVE MAINTENANCE AND SERVICE a heated room. If this is not possible then mix a 50/50 PREVENTATIVE solution of anti-freeze/water into a 5 gallon bucket. MAINTENANCE Place a short section of garden hose into bucket and connect it to machine. Elevate bucket and turn pump on 1. - Page 11 PREVENTATIVE MAINTENANCE AND SERVICE Burner Nozzle: the soot on the coil must be washed off after coil has been removed using the following steps: Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug 1.
- Page 12 PREVENTATIVE MAINTENANCE AND SERVICE NOTE: When changing fuel pump, a by-pass plug must Air Band be installed in return line port or fuel pump will not prime. Karcher Clear Fire Oil Burner Burner Air Adjustment: The oil burner on this machine is preset for operation at altitudes below 1000 feet.
-
Page 13: Exploded Views
EXPLODED VIEW - LEFT (Reversed View of Labels) (Reversed View of Label) Detail See Control Panel Illus. To Fuel Tank Fuel Tank Manual Karcher 9.800-191.0... - Page 14 EXPLODED VIEW - RIGHT 28,29 Enlarged D EP O SI TI VO R ES R EP O SI C IO View Overload Button Manual Karcher 9.800-191.0...
-
Page 15: Exploded Views Parts List
EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-782.0 Collar, 5/8" Bore Shaft 9.802-526.0 Locknut, 3/4" 8465 (513.0) 8.758-460.0 Wheel 12 In. Rim Steel 8.754-696.0 Unloader, VBT Banjo 1/2M 3/8M, 3000PSI 9.802-810.0 Washer, 5/8", Flat, SAE 9.175-018.0 UU1 3500PSI,Universal 8.922-672.0... - Page 16 EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.756-181.0 Burner, MSR 3.75 9.802-819.0 Washer, 7/16" x 2 1/2", 120V 1T 120V S Zinc, PG Foot 8.756-709.0 Burner, MSR, 230V 9.802-710.0 Screw 5/16" x 1" NC 1T 230V S (For models 9.804-016.0 Filter Screen Washer, HDS 3.5/20 EA)
-
Page 17: Control Panel Exploded View And Parts List
CONTROL PANEL EXPLODED VIEW Thermostat To Burner Motor To Power Pressure Source Switch To Motor CONTROL PANEL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-094.0 Thermostat, 150C/302F 9.802-514.0 Strain Relief, STRT LQ TITE 2 9.802-449.0 Switch, 3 PS, 9.802-447.0 Conduit, Corr, Tubing, 1/4"... -
Page 18: Hose & Spray Gun Assembly And Parts List
HOSE AND SPRAY GUN EXPLODED VIEW HOSE AND SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-288.0 Nozzle, SAQMEG 1503, 8.707-144.0 Nipple, 3/8", Female, Ssteel 1 Yellow (512.0) 9.802-100.0 ▲ Quick Coupler O-Ring LG 1 9.802-289.0 Nozzle SAQMEG 2503, 8.925-130.0 Hose, 3/8"... -
Page 19: Downstream Injector Assembly And Parts List
DOWNSTREAM INJECTOR EXPLODED VIEW DOWNSTREAM INJECTOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-215.0 Injector, Detergent, Non-Adjust #2 (511.0, 512.0) 9.802-216.0 Injector, Detergent, Non-Adjust #3 (513.0) 6.390-126.0 Clamp, Hose, UNI .46 - .54 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 9.802-160.0 Strainer, 1/4"... -
Page 20: Uu1 Unloader Exploded View And Parts List
VBT UNLOADER EXPLODED VIEW 8.754-696.0 UNLOADER, VBT BANJO 1/2M 3/8M, 3000PSI (SPARE) VBT UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 9.803-914.0 Seal Washer 1/2) 8.754-929.0 Stem 8.754-937.0 Bypass Manifold 9.803-912.0 Backup Ring 9.802-892.0 Outlet Connector 3/8 MPT 8.754-930.0 O-ring, Ø2.62 x 6.02 9.803-191.0 O-ring, Ø2.62 X 17.13... -
Page 21: Pump Exploded View And Parts List
KFP SERIES PUMP EXPLODED VIEW 8.929-254.0 KFP2030S TORQUE SPECS Item # Ft.-lbs 12.5 KFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase See Kits Below Plunger Oil Seal 8.758-216.0 Spacer See Kits Below "O" Ring Ø1.78X26.7 See Kits Below U Seal See Kits Below Pressure Ring See Kits Below U-Seal 9.803-199.0... - Page 22 KFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.707-262.0 Plug, Brass G3/8 See Kits Below Valve Seat See Kits Below Valve Plate See Kits Below Valve Spring See Kits Below Valve Cage 9.802-939.0 Screw, Hex M6M 16mm 8.717-137.0 Bearing Cover 9.803-954.0 Bearing Seal 8.754-843.0...
- Page 23 KFP SERIES PUMP EXPLODED VIEW 8.929-259.0 KFP3530F TORQUE SPECS Item # Ft.-lbs KFP SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 9.803-906.0 O-ring Ø1.78 X 14 9.850-005.0 Plunger Oil Seal 21* See Kits Below Valve Seat 9.853-555.0 Spacer 22* See Kits Below Valve Plate...
-
Page 24: Burner Clear Fire Exploded View And Parts List
KFP SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.752-824.0 Screw, 6 mm 38* 8.754-855.0 Bolt, Plunger 39* 8.754-092.0 Spacer, Copper 40* 8.754-848.0 Plunger, 16mm (2030S, 2830S) 8.754-849.0 Plunger, 14mm (2030F, 2830F, 3530F) 41* 9.803-962.0 Spacer, Copper 8.759-032.0 Plunger Rod 9.803-965.0 Connecting Rod Pin... - Page 25 BURNER ASSEMBLY EXPLODED VIEW 1/4" Above nozzle center 1/8"min 5/32" max Gap 1/8" AC 3/16" DC Nozzle-to- 1-3/8" tip spacing Cone distances and electrode gaps checked with burner gage (8.922-740.0), sold separately. BURNER ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO.
- Page 26 WAYNE BURNER EXPLODED VIEW Replacement Parts For best performance specify genuine WAYNE replacement parts Manual Karcher 9.800-191.0...
- Page 27 WAYNE BURNER PART LIST Replacement Parts For best performance specify genuine WAYNE replacement parts ITEM PART NO. DESCRIPTION 101397-001 Tube/Hous-101392-001/ 5A/3.5"/3"I 101295-002 Ignitor- D W/M Plate 120V 100990-001 Spring, Contact 8.756-740.0 Junction Box, MSR, Black Body 8.700-707.0 Air Band Inner "M" 20602-002 Band, Air Outer 8-Hole Mod M 13392...
- Page 28 Replacement Parts for model HDS 3.5/20 EA For best performance specify genuine KNA replacement parts Manual Karcher 9.800-191.0...
- Page 29 Replacement Parts for model HDS 3.5/20 EA For best performance specify genuine KNA replacement parts ITEM PART NO. DESCRIPTION 101396-001 Tube/Hous-21922-001/6A/3.75"/.88"I 101391-002 Ignitor-D W/M Plate 230V 100990-001 Spring,Contact 21319-003 J-Box,3X4 (No Knockouts) 20601-002 Band, Air Inner-Mod M 20602-002 Band, Air Outer 8-Hole Mod-M 13392 Plate, Slot Cover 30537-024...
-
Page 30: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply Use larger garden hose; clean filter washer at water inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle. -
Page 31: Maintenance Schedule
MAINTENANCE SCHEDULE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your local pressure washer dealer for maintenance. - Page 33 THANK YOU! DANKE! MERCI! GRACIAS! Register your product and benefit from many advantages. Enregistrez votre produit et bénéficiez de nombreux avantages. Registre su producto y aproveche de muchas ventajas. Registrieren Sie Ihr Prudukt und Sie von vielen Vorteilen. www.kaercher.com/welcome Rate your product and tell us your opinion. Évaluez votre produit et donnez-nous votre opinion.
