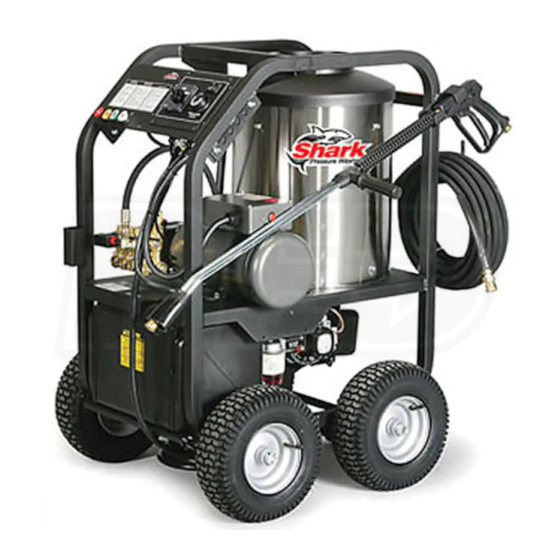

Kärcher STP-231007D Manual

Kärcher STP-231007D Manual

Electric motor-hot water

Advertisement

Quick Links

High pressure cleaner
Electric motor - Hot water
Register
your product
www.kaercher.com/welcome
English..... 2
MODELS:
1.109-101.0
STP-231007D
1.109-102.0
STP-201507D
1.109-103.0
STP-352007A
1.575-513.0
STP-231007D
1.109-133.0
STP-231007D
1.109-134.0
STP-352007A
9.801-191.0 - B (08/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP-231007D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kärcher STP-231007D

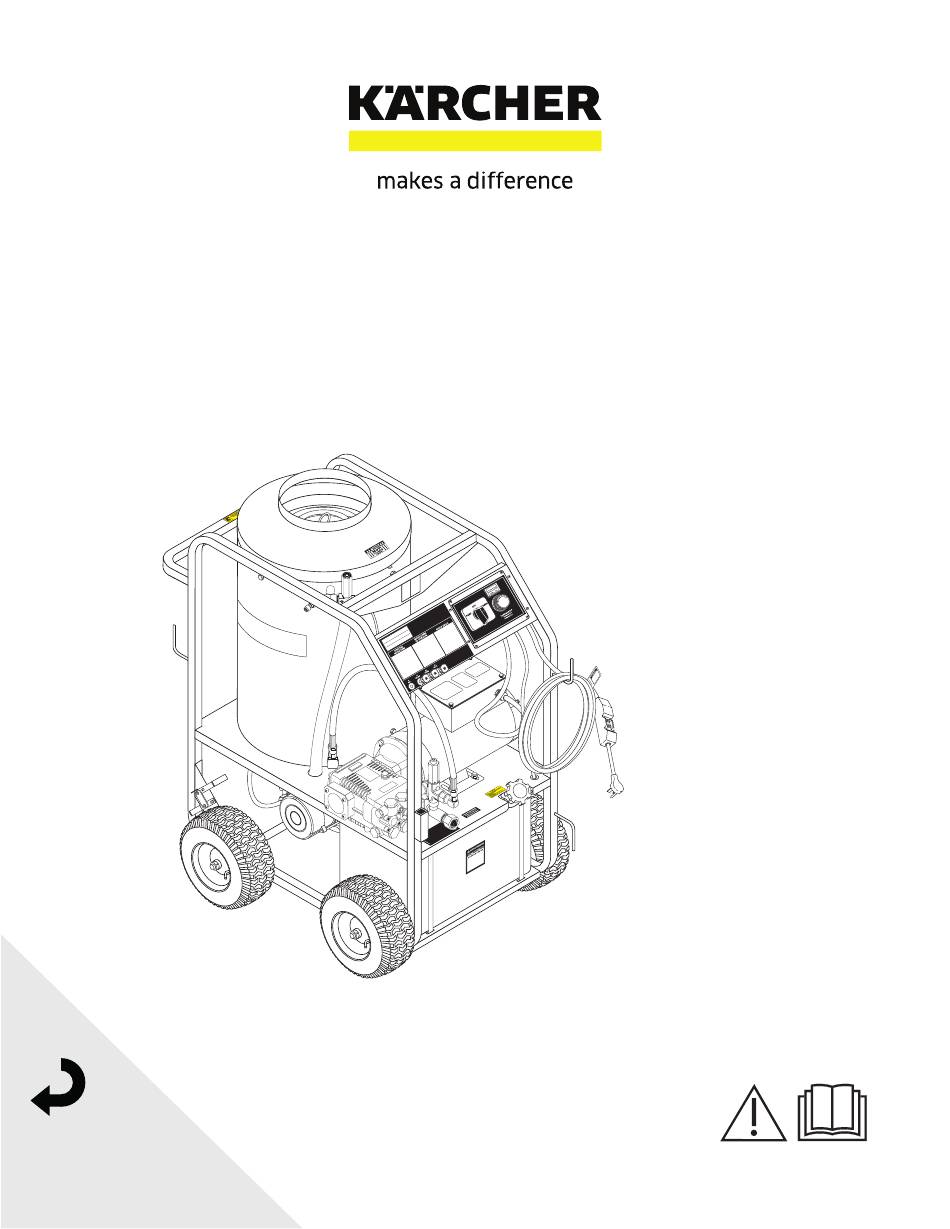

  • Page 1 English..2 High pressure cleaner Electric motor - Hot water MODELS: 1.109-101.0 STP-231007D 1.109-102.0 STP-201507D 1.109-103.0 STP-352007A 1.575-513.0 STP-231007D 1.109-133.0 STP-231007D 1.109-134.0 STP-352007A Register 9.801-191.0 - B (08/20) your product www.kaercher.com/welcome...
  • Page 2: Table Of Contents

    CONTENTS Introduction and Safety Information Component Identification Operating Instructions Preventative Maintenance and Service 9-11 Exploded Views 12-13 Exploded Views Parts List 14-15 Control Panel Exploded View and Parts List Hose & Spray Gun Assembly and Parts List VBT Unloader Exploded View and Parts List Pump Exploded View and Parts List 19-20 Burner Clear Flame Exploded View and Parts List...
  • Page 3 INTRODUCTION & IMPORTANT SAFETY INFORMATION single phase this product should only be connected Thank you for purchasing this Pressure Washer. to a power supply receptacle protected by a GFCI. We reserve the right to make changes at any time DANGER: Improper connection of the equipment- without incurring any obligation.
  • Page 4 IMPORTANT SAFETY INFORMATION 6. In oil burning models, use only kerosene, No. 1 home heating fuel, or diesel. If diesel is used, add WARNING: Hot discharge fluid. WARNING a soot remover to every tankful. Do not touch or direct dis- WARNING: Risk of fire —...
  • Page 5 IMPORTANT SAFETY INFORMATION or any other relatively unstable location. The clean- ing area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces. 20. Do not overreach or stand on unstable support. Keep good footing and balance at all times. 21.
  • Page 6: Component Identification

    COMPONENT IDENTIFICATION Nozzle C AU T I O N H O T WAT E R : (Nozzles Must use insulated spray gun Brass (Black) sold and wand. separately) ON - OFF Switch Hour Meter Downstream Detergent Adjustable Injector Thermostat (Kit Injector sold separately) GFCI Wand Holder...
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Electrical: 6. Securely attach the desired high pressure nozzle into wand coupler as described in steps 4 and 5. This machine, when installed, must be electrically 7. Connect the power cord into the proper electrical grounded in accordance to local codes. Check for outlet, then push in the GFCI reset button (Refer proper power supply using a volt meter.
  • Page 8 OPERATING INSTRUCTIONS 4. Place detergent pick-up tube into container of HOW TO USE THE detergent solution. DETERGENT INJECTOR 5. Turn pressure control handle counterclockwise on the variable pressure wand. This lowers the pres- WARNING WARNING: Some detergents sure by directing the water flow through the soap may be harmful if inhaled or in- nozzle and allows the detergent injector to siphon gested causing severe nausea,...
  • Page 9: Preventative Maintenance And Service

    PREVENTATIVE MAINTENANCE AND SERVICE solution of anti-freeze/water into a 5 gallon bucket. PREVENTATIVE MAINTENANCE Place a short section of garden hose into bucket and connect it to machine. Elevate bucket and turn pump on 1. Use clean fuel - kerosene, No. 1 home hearing to siphon anti-freeze through machine.
  • Page 10 PREVENTATIVE MAINTENANCE AND SERVICE Burner Nozzle: 1. Remove the tank head assembly by lifting the tank head off. Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug 2. Remove the two pipe nipples and associated fit- or enlarge the nozzle.
  • Page 11 PREVENTATIVE MAINTENANCE AND SERVICE If the desired position cannot be obtained using only make for a thicker flow and less fine a fuel spray while the air shutter, lock the air shutter in as close a position hotter temperatures will make for a thinner flow a more as can be obtained, then repeat the above procedure fine spray with the same nozzle.
  • Page 12 EXPLODED VIEW - LEFT (Reversed View of Labels) (Reversed View of Label) 9.800-110.0 Detail See Control Panel Illus. To Fuel Tank Fuel Tank Manual Karcher STP 9.801-191.0 - B...
  • Page 13 EXPLODED VIEW - RIGHT D EP Enlarged O SI TI VO R ES R EP O SI C IO View Overload Button Manual Karcher STP 9.801-191.0 - B...
  • Page 14: Exploded Views Parts List

    EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-782.0 Collar, 5/8" Bore Shaft 8.754-696.0 Unloader, VBT Banjo 1/2M 3/8M, 3000PSI 8.754-435.0 Wheel & Pu Tire Assy, 12" 9.175-018.0 UU1 3500PSI,Universal Steel Rim Unloader (352007A) 9.802-810.0 Washer, 5/8", Flat, SAE 9.800-049.0 Label, Manufacturer's 8.922-672.0...
  • Page 15 EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-753.0 Screw, 1/4-20 x 3/4" 9.802-908.0 Insulation, Blanket, 18" x 52", 1 Fiberglass 8.756-181.0 Burner, MSR 3.75 120V 8.756-907.0 Insulation, Blanket, 1T 120V S 19.5 X 52, Fiberglass 8.756-709.0 Burner, MSR, 230V (For models HDS 3.5/20 EA)
  • Page 16: Control Panel Exploded View And Parts List

    CONTROL PANEL EXPLODED VIEW Thermostat To Burner Motor To Power Pressure Source Switch To Motor CONTROL PANEL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-094.0 Thermostat, 150C/302F 9.802-514.0 Strain Relief, Strt, Lq, Tite 9.802-449.0 Switch, 3 PS, 120V-230V, 1Ph 1 9.802-447.0 Conduit, Corr, Tubing, 1/4"...
  • Page 17: Hose & Spray Gun Assembly And Parts List

    HOSE AND SPRAY GUN EXPLODED VIEW HOSE AND SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-288.0 Nozzle, SAQMEG 1503, 9.802-166.0 Coupler, 3/8" Female Yellow (201507D) ▲ Quick Coupler O-Ring LG 1 9.802-100.0 9.802-289.0 Nozzle SAQMEG 2503, 8.925-130.0 Hose, 3/8"...
  • Page 18: Vbt Unloader Exploded View And Parts List

    VBT UNLOADER EXPLODED VIEW 8.754-696.0 UNLOADER, VBT BANJO 1/2M 3/8M, 3000PSI (SPARE) VBT UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 9.803-914.0 Seal Washer 1/2) 8.754-929.0 Stem 8.754-937.0 Bypass Manifold 9.803-912.0 Backup Ring 9.802-892.0 Outlet Connector 3/8 MPT 8.754-930.0 O-ring, Ø2.62 x 6.02 9.803-191.0 O-ring, Ø2.62 X 17.13...
  • Page 19 KFP SERIES PUMP EXPLODED VIEW 8.929-254.0 KFP2030S TORQUE SPECS Item # Ft.-lbs 12.5 KFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase See Kits Below Plunger Oil Seal 8.758-216.0 Spacer See Kits Below "O" Ring Ø1.78X26.7 See Kits Below U Seal See Kits Below Pressure Ring See Kits Below U-Seal 9.803-199.0...
  • Page 20 KFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.707-262.0 Plug, Brass G3/8 See Kits Below Valve Seat See Kits Below Valve Plate See Kits Below Valve Spring See Kits Below Valve Cage 9.802-939.0 Screw, Hex M6M 16mm 8.717-137.0 Bearing Cover 9.803-954.0 Bearing Seal 8.754-843.0...
  • Page 21 SF SERIES PUMP EXPLODED VIEW 8.923-808.0 SF3530F TORQUE SPECS Item # Ft.-lbs SF SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 8.754-850.0 Washer, Lock 8.754-846.0 O-ring Ø1.78 X 72.75 9.803-198.0 Washer, Copper G3/8 See Kits Below Plunger Oil Seal 8.707-262.0 Plug, Brass G3/8...
  • Page 22 SF SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.754-855.0 Bolt, Plunger 8.754-092.0 Spacer, Copper 8.754-849.0 Plunger, 14mm 9.803-962.0 Spacer, Copper 8.754-827.0 Plunger Rod 9.803-965.0 Connecting Rod Pin 9.803-966.0 Connecting Rod 8.933-020.0 Screw, Connecting Rod 8.754-847.0 O-ring Ø2.62 X 111.62 8.754-842.0 Cover, Crankcase 9.803-906.0...
  • Page 23 BURNER ASSEMBLY EXPLODED VIEW 1/4" Above nozzle center 1/8"min 5/32" max Gap 1/8" AC 3/16" DC Nozzle-to-tip 1-3/8" spacing Cone distances and electrode gaps checked with burner gage (8.922-740.0), sold separately. BURNER ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO.
  • Page 24 WAYNE BURNER EXPLODED VIEW Replacement Parts For best performance specify genuine WAYNE replacement parts Manual Karcher STP 9.801-191.0 - B...
  • Page 25 WAYNE BURNER PART LIST Replacement Parts For best performance specify genuine WAYNE replacement parts ITEM PART NO. DESCRIPTION 101397-001 Tube/Hous-101392-001/ 5A/3.5"/3"I 101295-002 Ignitor- D W/M Plate 120V 100990-001 Spring, Contact 8.756-740.0 Junction Box, MSR, Black Body 8.700-707.0 Air Band Inner "M" 20602-002 Band, Air Outer 8-Hole Mod M 13392...
  • Page 26 Replacement Parts for STP-352007A and STP-352007A For best performance specify genuine KNA replacement parts Manual Karcher STP 9.801-191.0 - B...
  • Page 27 Replacement Parts for STP-352007A and STP-352007A For best performance specify genuine KNA replacement parts ITEM PART NO. DESCRIPTION 101396-001 Tube/Hous-21922-001/6A/3.75"/.88"I 101391-002 Ignitor-D W/M Plate 230V 100990-001 Spring,Contact 21319-003 J-Box,3X4 (No Knockouts) 20601-002 Band, Air Inner-Mod M 20602-002 Band, Air Outer 8-Hole Mod-M 13392 Plate, Slot Cover 30537-024...
  • Page 28: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply Use larger garden hose; clean filter washer at water inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle.
  • Page 29: Maintenance Schedule

    MAINTENANCE SCHEDULE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your local pres- sure washer dealer for maintenance.
  • Page 30 LIMITED NEW PRODUCT Phone: 888-805-9852 Fax: 800-248-8409 WARRANTY—COMMERCIAL www.karchercommercial.com PRESSURE WASHERS WHAT THIS WARRANTY COVERS All Kärcher commercial pressure washers are warranted by Kärcher to the original purchaser to be free from defects in materials and workmanship under normal use, for the periods specified below. This Limited Warranty, subject to the exclusions shown below, is calculated from the date of the original purchase, and applies to the original components only.
  • Page 31 THANK YOU! DANKE! GRACIAS! MERCI! vielen Vorteilen. advantages. avantages. Registre su producto y aproveche de muchas ventajas. www.kaercher.com/welcome Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung. Rate your product and tell us your opinion. Évaluer votre produit et dites-nous votre opinion. Reseñe su producto y díganos su opinión.
