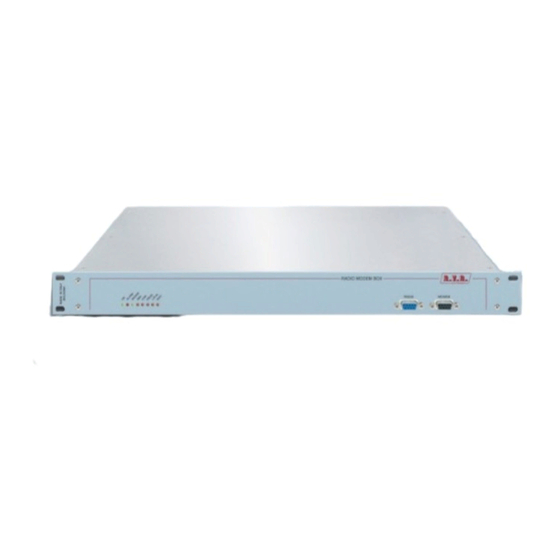

RDMODWEB
USER MANUAL
Manufactured by R.V.R ELETTRONICA S.p.A. Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDMODWEB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for R.V.R. Elettronica RDMODWEB

Summary of Contents for R.V.R. Elettronica RDMODWEB

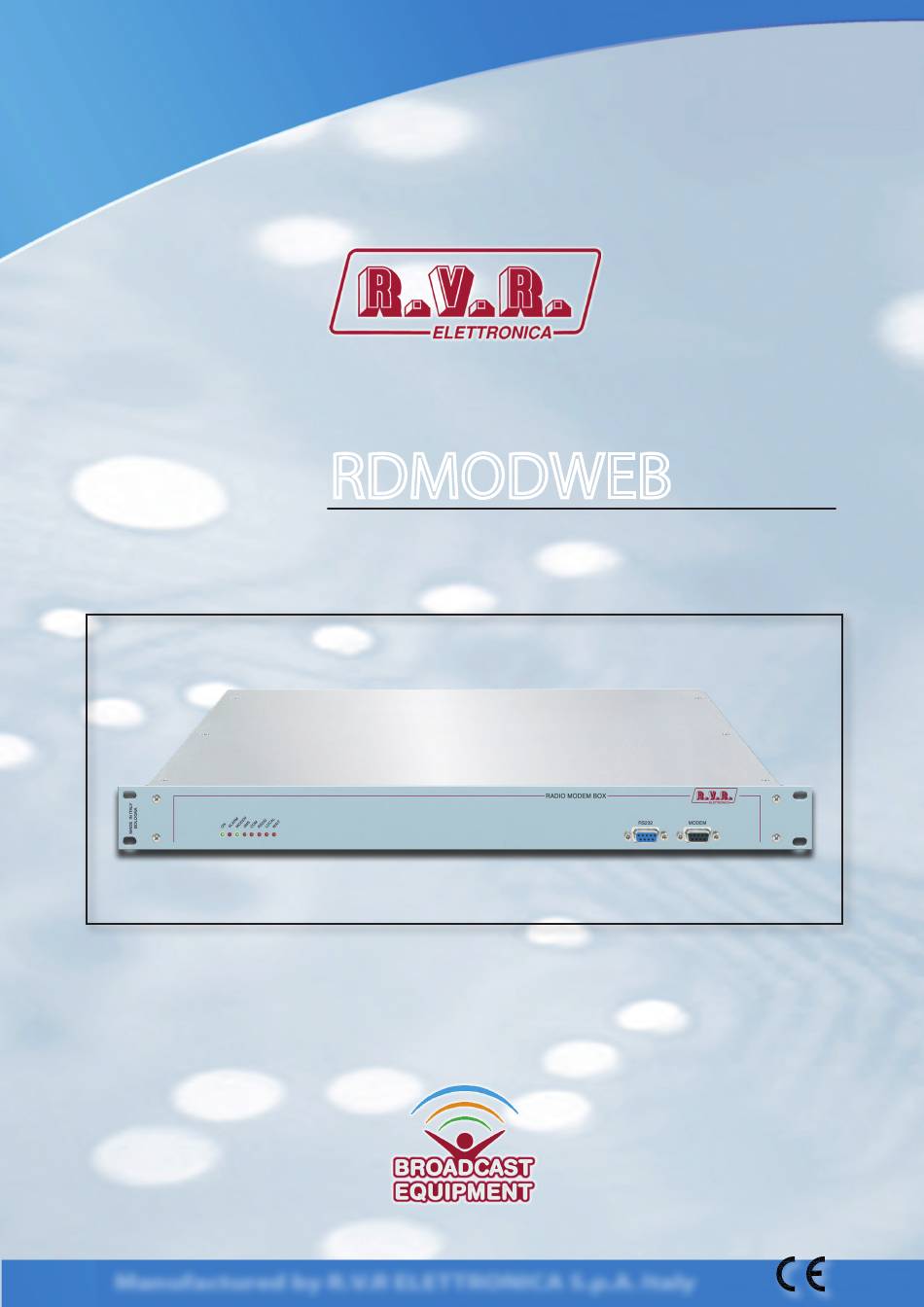

  • Page 1 RDMODWEB USER MANUAL Manufactured by R.V.R ELETTRONICA S.p.A. Italy...
  • Page 2 Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    RDMODWEB ELETTRONICA Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns Descrizione Generale Unpacking 4.2 Specification Front Panel Description Rear Panel Description Connector Description 4.6 Technical Specifications 5. Installation and configuration procedure Preparation First Power-On and Set-Up Management Software 6. Module Identification...
  • Page 4 RDMODWEB ELETTRONICA This page was intentionally left blank Rev. 1.0 - 20/02/12 User Manual...

  • Page 5: Preliminary Instructions

    2. Warranty or operation by trained/untrained and qualified/unqualified persons. La R.V.R. Elettronica S.P.A. warrants this product to be free from defects in workmanship and its proper operation subject WARNING: The equipment is not water resistant. to the limitations set forth in the supplied Terms and Conditions.

  • Page 6: First Aid

    • Do not stop chest compressions while giving artificial breathing. R.V.R. Elettronica SpA Via del Fonditore, 2/2c • Call for medical help as soon as possible. 40138 BOLOGNA ITALY Tel. +39 051 6010506 3.1.2...

  • Page 7: Descrizione Generale

    The following accessories are also available from Your R.V.R. Dealer: • Accessories, spare parts and cables 4.2 Specification The RDMODWEB uses a 16bit DSP, that is the ideal solution to adjust the device to the specific connection needs, it also implements the protocols to exchange data through the Internet, such as ARP & DHCP to assign IP addresses, or like the conformity to RFC for TCP/IP applications (such as HTTP, FTP server or e- mail).

  • Page 8: Front Panel Description

    RDMODWEB ELETTRONICA 4.3 Front Panel Description [1] ON Green LED, turns on when the equipment is connected to mains power supply. [2] ALARM Red LED, turns on when an alarm detected by the telemetry system is present. [3] MODEM Green LED, turns on when modem is connected.

  • Page 9: Connector Description

    RDMODWEB ELETTRONICA 4.5 Connector Description 4.5.1 RS232 Type: DB9 Male 4.5.2 I C BUS Type: DB9 Male 4.5.3 RS485 BUS Type: DB9 Female / 24 Manuale Utente Rev. 1.0 - 20/02/12...
  • Page 10 RDMODWEB ELETTRONICA 4.5.4 LAN Type: RJ45 Female N.C. N.C. N.C. N.C. / 24 Rev. 1.0 - 20/02/12 Manuale Utente...

  • Page 11: Technical Specifications

    RDMODWEB ELETTRONICA 4.6 Technical Specifications RDMODWEB Parameters GENERALS 115/230 VAC ±15% (internally Primary Power selectable) 483 x 44 x 238 mm Phisical Dimensions (W x H x D) 6,5 kg Weigh -10 to + 50 °C Environmental working temperature Cooling type...

  • Page 12: Installation And Configuration Procedure

    Please see the relevant sections for additional details. 5.1 Preparation 5.1.1 Preliminary checks Unpack the RDMODWEB interface and immediately inspect it for transport damage. Ensure that all connectors are in perfect condition. Provide for the following (applicable to operating tests and putting into service): √ Connection cable kit including:...

  • Page 13: First Power-On And Set-Up

    Note : If you intend to connect it directly to a PC, it is necessary to use a crossover ethernet cable. This is a basic prerequisite to ensure equipment correct operation. 3) Connect the network cable to the relevant MAINS IN connector on RDMODWEB interface. 5.2 First Power-On and Set-Up Perform this procedure upon first power-up and each time you make changes to the configuration this component is integrated into.

  • Page 14: Management Software

    RDMODWEB ELETTRONICA 2) If the User Name and the Password have not been entered and saved yet, and if no changes were made to access modes, enter RVR and RVR to enter as administrator (if access data were modified, enter the new User Name and Password). Then click on Login.
  • Page 15 Attention Device not ready State 2 In this case, allow a few seconds for RDMODWEB interface acknowledgement. While to go back to MAIN menu, just click on RVR logo at top left of the sub- menu. / 24 Manuale Utente Rev.
  • Page 16 RDMODWEB ELETTRONICA 5.3.1 Device Menu Values found here are “live readings”, and as such they can not be modified. This page shows the user the data of the exciter connected to the RDMODWEB interface: Device Status Present Model Hardware Software Module connected Analog inputs Analog outputs Digital inputs Digital outputs Generic I/O Menu 4 Status Shows exciter connection state.
  • Page 17 Values found here are “live readings”, and as such they can not be modified. To change power setting use the Set Device (chapt. 5.3.3) after logging in as administrator. This page shows the user the data of the exciter connected to the RDMODWEB interface: Status Ready...
  • Page 18 è effettuato il login come amministratore. This page not only shows the user the information about the exciter connected to the RDMODWEB interface, but also allows setting various parameters. Following is a description of the items that allow modification of the parameter, with respect to the Status menu (chapt. 5.3.2). Press the Update button to confirm selection;...
  • Page 19 Within this menu you can display all alarms saved by the system: any new event will automatically delete the older ones. Using Reset item at bottom right of the menu, you can delete all pending alarms. This page shows the user the alarms of the exciter connected to the RDMODWEB interface: Active alarms Ready...
  • Page 20 Note : Access to this menu and modification of these parameters are only possible after login with administrator rights. This page not only shows the user the information about the RDMODWEB interface network connection, but also allows setting various parameters. Press the Update button to confirm selection; if you let timer to time out or press the RVR logo, the parameter setting will remain as previously set.
  • Page 21 RDMODWEB ELETTRONICA Subnet Mask Shows and sets the subnet mask, necessary for the computer that must communicate with another IP address to know if it should route packages toward the gateway of its local network or use the address of the receiver local network.
  • Page 22 RDMODWEB ELETTRONICA Password Shows and sets password for enabling sending messages. Port Shows and sets the port used by TCP transmission protocol. Sender Address Shows and sets the transmission address used for sending messages. Domain name Shows and sets domain name. 5.3.5.3...
  • Page 23 This page not only shows the user the information about the exciter connected to the RDMODWEB interface, but also allows setting various parameters. Following is a description of the items that allow modification of the parameter, with respect to the Status menu (chapt. 5.3.2). Press the Update button to confirm selection;...
  • Page 24 Subject TEX-ALARM Update Menu 12 This page allows configuration of the signal for alarms of the exciter connected to RDMODWEB interface. Enable alarms Shows and sets alarm presence sampling time, in seconds. If the value is equal to 0, alarm check task is disabled. Enable send mail Enables (0) or disables (1) mail output after alarms.
  • Page 25 User name (User) user Password (User) Update Menu 13 This page allows configuration of the access to RDMODWEB interface via WUI. Enable login Enables (0) or disables (1) access to the menus by means of the login page. User Name (Manut.) Shows and sets the user name for administrator functions (parameter reading and change enabling).
  • Page 26 RDMODWEB ELETTRONICA 5.3.7 Commands menu This menu allows you to logout from WUI. Furthermore, using the Reset item, at bottom right of this menu, it is possible to restore software factory settings (back- up). Commands RESET Reset the software of the interface and restart it...

  • Page 27: Module Identification

    RDMODWEB ELETTRONICA 6. Module Identification The RDMODWEB is made up of several modules connected through connectors to facilitate maintenance and replacement (if needed). 6.1 Top View Figure 6.1 shows a top view of the equipment and component locations. Figure 6.1 [1] Transformer.
  • Page 28 RDMODWEB ELETTRONICA This page was intentionally left blank / 24 Rev. 1.0 - 20/02/12 Manuale Utente...
  • Page 29 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 30 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 31 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 32 ISO 9001:2000 certified since 2000 R.V.R Elettronica S.p.A. Via del Fonditore, 2 / 2c Zona Industriale Roveri · 40138 Bologna · Italy Phone: +39 051 6010506 · Fax: +39 051 6011104 e-mail: info@rvr.it ·web: http://www-rvr-it The RVR Logo, and others referenced RVR products and services are trademarks of RVR Elettronica S.p.A. in Italy, other countries or both. RVR ® 1998 all rights reserved. All other trademarks, trade names or logos used are property of their respective owners.
