R.V.R. Elettronica TELINK-SNMP1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TELINK-SNMP1
User Manual
Volume 1
Manufactured by
Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TELINK-SNMP1 and is the answer not in the manual?

Questions and answers

Related Manuals for R.V.R. Elettronica TELINK-SNMP1

Summary of Contents for R.V.R. Elettronica TELINK-SNMP1

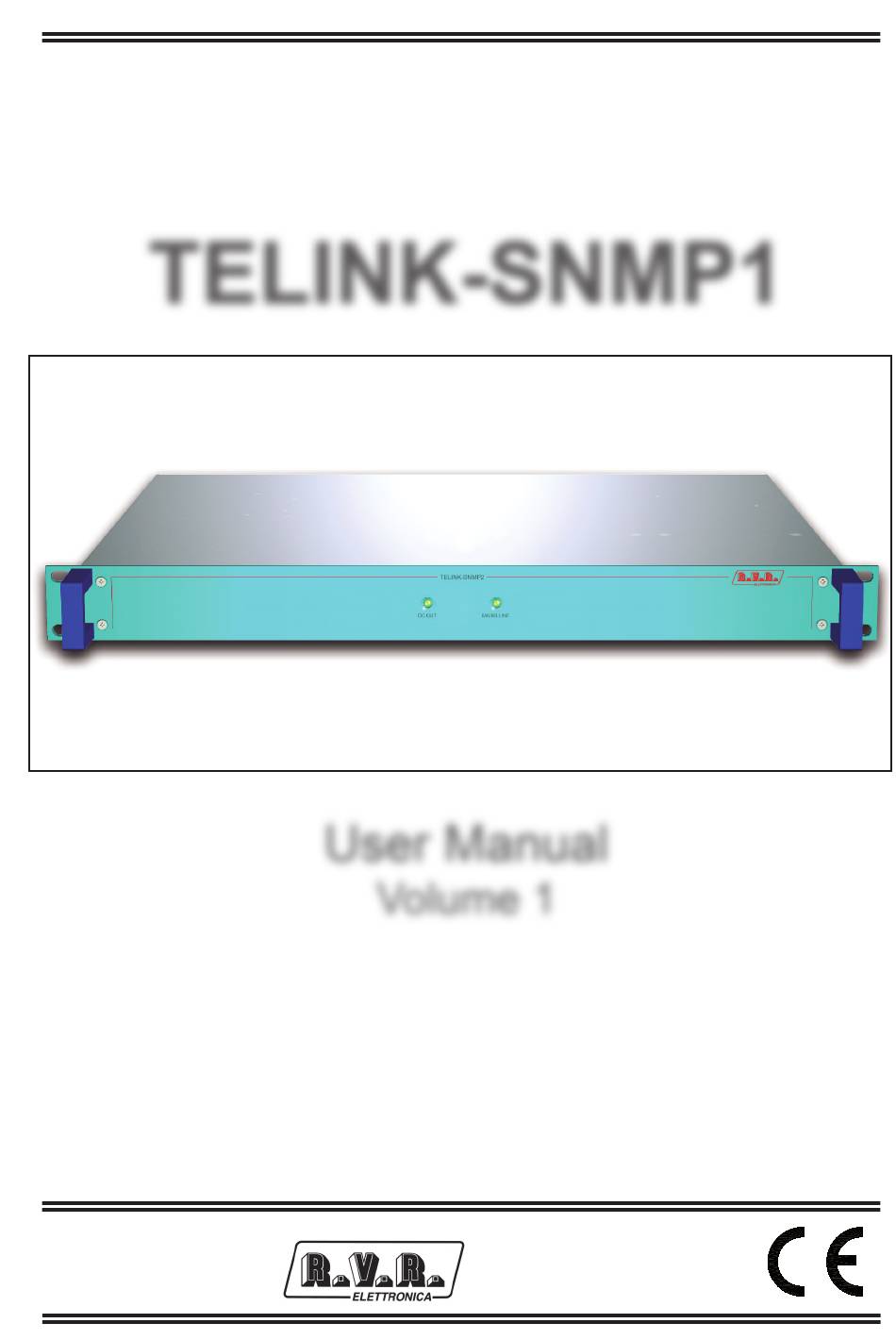

  • Page 1 TELINK-SNMP1 User Manual Volume 1 Manufactured by Italy...
  • Page 2 Revision history Date Version Reason Editor 13/03/2009 First Edition P. Tassin TELINK-SNMP1 - User Manual Version 1.0 © Copyright 2009 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telephone: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it...

  • Page 3: Table Of Contents

    TELINK-SNMP1 Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns Unpacking General Description Installation and confi guration procedure Preparation First Power-On and Set-Up Management Firmware External Description Front Panel Rear Panel Connector Description Technical Specifi...
  • Page 4 TELINK-SNMP1 This page was intentionally left blank Rev. 1.0 - 13/03/09 User Manual...

  • Page 5: Preliminary Instructions

    If it is decided to return the that the manufacturer’s instructions are been followed. unit to the factory, R.V.R. Elettronica will mail you a regular authorization with all the necessary instructions to send back the goods;...

  • Page 6: First Aid

    • Do not interrupt the rythm of compressions when the second person is giving breath. R.V.R. Elettronica SpA Via del Fonditore, 2/2c • Call for medical assistance as soon as 40138 BOLOGNA ITALY possible.

  • Page 7: Unpacking

    The TELINK-SNMP1, manufactured by R.V.R. Elettronica SpA, is an SNMP telemetry interface via LAN that can be connected to all standard equipment manufactured by RVR. The TELINK-SNMP1 have been designed for installation in a 1HE box for 19” rack. Two major features of TELINK-SNMP1 are compact design and user-friendliness.
  • Page 8 TELINK-SNMP1 has a “simulation” modality that allows to connect an ANTLAN system regularly to TELINK-SNMP1 and reading the virtual value (test of the protocol and network). The rear panel features the mains input connector, as well as the telemetry input connector, the dip-switch for the confi...

  • Page 9: Installation And Confi Guration Procedure

    TELINK-SNMP1 Installation and confi guration procedure This section provides a step-by-step description of equipment installation and confi guration procedure. Follow these procedures closely upon fi rst power-on and each time any change is made to general confi guration, such as when a new transmission station is added or the equipment is replaced.

  • Page 10: First Power-On And Set-Up

    RS232 cable (i.e. when you need to program the Main card). This is a basic prerequisite to ensure equipment correct operation. 2) Connect the ETHERNET output of TELINK-SNMP1 interface to the appropriate input of your ADSL router or LAN network. If the connecting device is different, identify an equivalent.
  • Page 11 192.168.0.XXX (where XXX is a fi gure between 0 and 255, excluding 167 that is TELINK-SNMP1 interface default address). To change the IP address, follow the instructions in the manual or in the online guide and technical help, specifi c for the Operating System you use.

  • Page 12: Management Firmware

    Nota : Use a MIB BROWSER (not included) to use the MIB of RVR equipments. These are usually provided in an accompanying CD with the system in which the TELINK-SNMP1 is installed. 5.3 Management Firmware 5.3.1 Reading and Settings of Measurement Each transmitter has a range of measures that can be read.
  • Page 13 TELINK-SNMP1 Menu 3 Each input is associated to a tree for alarms settings. The tree for alarms settings (or trap settings) can be found in section 110 of each subtree. The adjustment of the class is not used in this release. For each analog measurement can be set: •...
  • Page 14 TELINK-SNMP1 Hysteresis area Menu 4 As you can see the hysteresis is a protected area in which the alarm is not sent, when the value exceeds the minimum value (MIN) when there is no alarm or the maximum value (MAX) alarm is active, the minimum value (MIN) alarm is set. To exit the MIN alarm condition, the value should be equal to the MIN value plus the value of hysteresis.
  • Page 15 TELINK-SNMP1 5.3.2 Reading and Settings of Status Similarly to measurements described in the previous chapter, each transmitter has a range of states that can be read. Please refer to MIB for a detailed description of each measurement. The transmitter has an SCI (Serial Communication Interface) owner, that reads and stores the telemetry data in the Main card.
  • Page 16 TELINK-SNMP1 Menu 7 As you can see from the menus above, the operation mode is adjustable. 5.3.3 TRAP sending\ The telemetry system is capable to sending TRAP up to fi ve different addresses. Different addresses can be set using the OID in major MIB, in this case: •...
  • Page 17 TELINK-SNMP1 Similarly to readings and settings of the measurements, the commands have a set of OID that are only in writing mode. For each transmitter, the MIB exports a specifi c set of OID. The controls can regulate ON/OFF: to activate (ON) the user must send a “2” as value for the disabled (OFF) the user must send a “1”...

  • Page 18: External Description

    TELINK-SNMP1 6. External Description This section describes the components found on the front and rear panel of TELINK-SNMP1. 6.1 Front Panel Figure 6.1 [1] DC OUT Green LED - Lit on when the power supply works and cards feed correctly.

  • Page 19: Rear Panel

    TELINK-SNMP1 6.2 Rear Panel Figure 6.2 [1] GROUND Ground connection. [2] FUSE BLOCK Fuse carrier.Use a screwdriver to access the fuse. Contains two general protection fuses rated 2 A. [3] PLUG VDE plug for mains power supply. [4] 24 VDC IN- Not used.

  • Page 20: Connector Description

    TELINK-SNMP1 6.3 Connector Description 6.3.1 RS232 Type: DB9 Male N.C. N.C. N.C. N.C. N.C. N.C. 6.3.2 SERVICE Type: DB9 female 6.3.3 PROG. Type: RJ45 female N.C. N.C. N.C. 16 / 24 Rev. 1.0 - 13/03/09 User Manual...
  • Page 21 TELINK-SNMP1 6.3.4 ETHERNET Type: RJ45 female N.C. N.C. N.C. N.C. User Manual Rev. 1.0 - 13/03/09 17 / 24...

  • Page 22: Technical Specifi Cations

    TELINK-SNMP1 7. Technical Specifi cations TELINK-SNMP1 P P arameters G G ENERALS 230 VAC ±15% Primary Power 483 x 44 x 300 mm Phisical Dimensions (W x H x D) 4 kg Weigh -10 to + 50 °C Environmental working temperature...

  • Page 23: Working Principles

    TELINK-SNMP1 8. Working Principles A schematic view of the modules and connections making up the TELINK-SNMP1 with the telemetry board is shown in fi gure 8.1. Figure 8.1 A brief description of each module’s functions is given below, whereas the complete diagrams and layout of the cards are given in the “Technical Appendix”...

  • Page 24: Main Card

    TELINK-SNMP1 8.3 Main card This card is an interface endowed of microcomputer with a RISC microprocessor and a resident RTOS operating system specialized in the simultaneous management of data passing between serial ports. It also include a Web Server that allows to be connected in ethernet network and explored by a standard browser tlike Explorer or similar (HTML function).
  • Page 25 TELINK-SNMP1 Figure 8.2 Always OFF (no change) Always ON (no change) ON: for software upgrade OFF: normal operation ON: debug mode OFF: normal operation ON: dual exciter transmitter OFF: single exciter transmitter 6&7. 6:OFF 7: OFF 10kW transmitter 6:ON 7: OFF...
  • Page 26 TELINK-SNMP1 • SYNOPTIC 2 (note [15] - fi g. 6.2) Green Led - Lit on identifi es the correct feeding of card. Green Led - Lit on indentifi es malfunctions on hardware. Green Led - Blink identifi es the proper functioning of watchdog on card.

  • Page 27: Identifi Cation And Access To The Modules

    TELINK-SNMP1 9. Identifi cation and Access to the Modules The TELINK-SNMP1 is made up of various modules linked to each other through connectors so as to make maintenance and any required module replacement easier. 9.1 Upper View The fi gure below shows the equipment upper view with the various components pointed out.
  • Page 28 TELINK-SNMP1 This page was intentionally left blank 24 / 24 Rev. 1.0 - 13/03/09 User Manual...
