R.V.R. Elettronica PTRL NV/3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

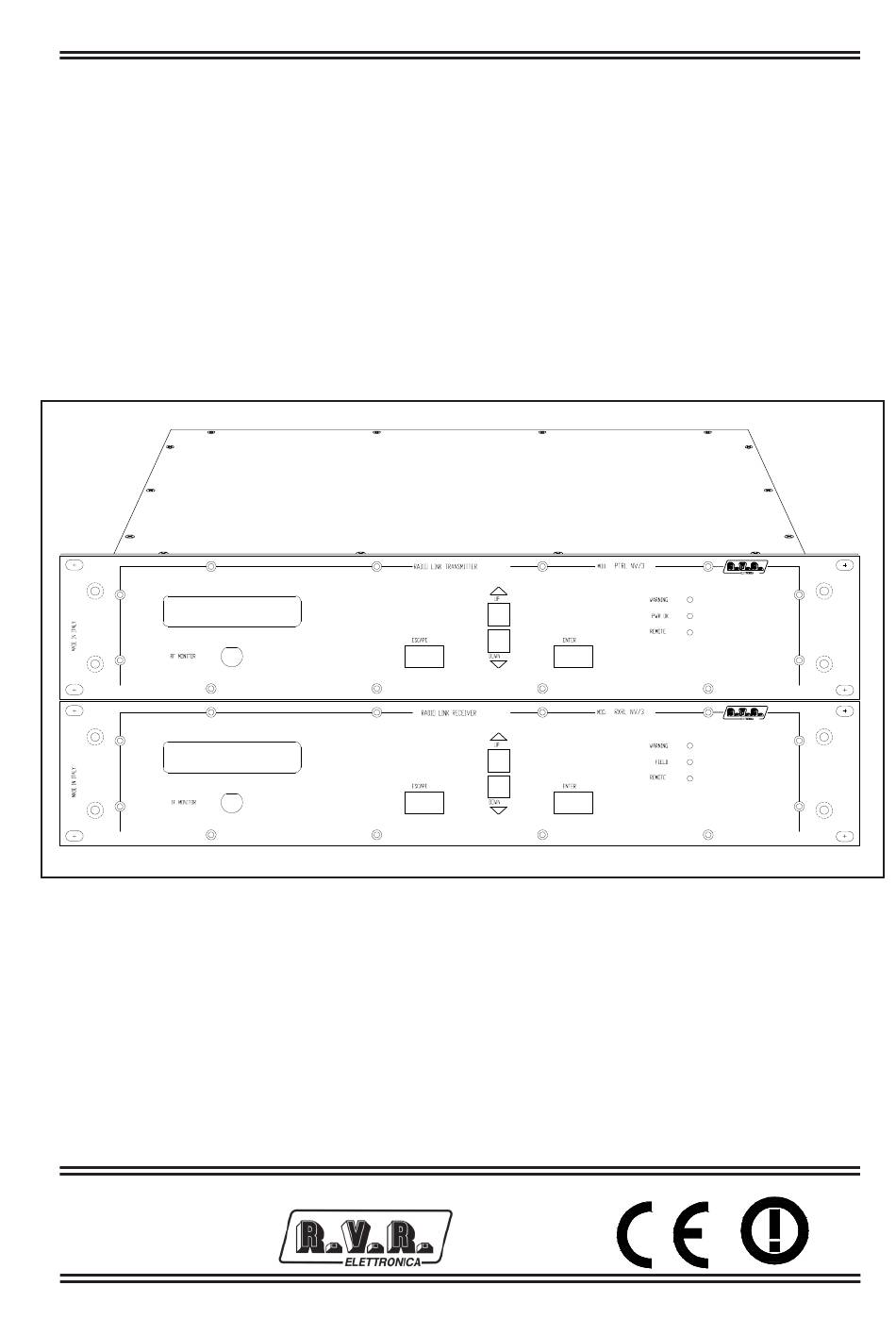

PTRL NV/3
& RXRL NV/3
User Manual
Volume 1
Manufactured by
Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTRL NV/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for R.V.R. Elettronica PTRL NV/3

Summary of Contents for R.V.R. Elettronica PTRL NV/3

  • Page 1 PTRL NV/3 & RXRL NV/3 User Manual Volume 1 Manufactured by Italy...
  • Page 2 Limitations of use can apply in respect of operating freuency, transmitter power and/or channel spacing. Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    PTRL NV/3 & RXRL NV/3 Table of Contents 1. Preliminary Instructions 2. Warranty 3. First Aid 3.1 Treatment of electrical shocks 3.2 Treatment of electrical Burns 4. Unpacking 5. Installation and configuration procedure 5.1 Foreword to Installation 5.2 System connections 5.3 Presettings and BF Connections...
  • Page 4 PTRL NV/3 & RXRL NV/3 This page was intentionally left blank Rev. 1.0 - 29/11/05 User Manual...

  • Page 5: Preliminary Instructions

    PTRL NV/3 & RXRL NV/3 1. Preliminary Instructions This manual is written as a general guide for those having previous knowledge and experience with this kind of equipment, well conscious of the risks connected with the operation of electrical equipment.

  • Page 6: Treatment Of Electrical Burns

    PTRL NV/3 & RXRL NV/3 • Figura 2 • • • Figura 2 Figura 3 Figura 4 Figura 5 3.2.2 Less severe burns • • Figure 3 Figure 4 • • • • Figure 5 3.1.2 If victim is responsive •...

  • Page 7: Unpacking

    PTRL NV/3 & RXRL NV/3 4. Unpacking PTRL NV/3 RXRL NV/ User Manual Rev. 1.0- 29/11/05 3 / 52...
  • Page 8 PTRL NV/3 & RXRL NV/3 This page was intentionally left blank 4 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 9: Installation And Configuration Procedure

    PTRL NV/3 & RXRL NV/3 5. Installation and configuration procedure 5.1 Foreword to Installation 5.2 System connections On the air Field User Manual Rev. 1.0- 29/11/05 5 / 52...

  • Page 10: Presettings And Bf Connections

    PTRL NV/3 & RXRL NV/3 password passwords password immediately password The only way to gain access to the unit is to have it reprogrammed at the factory or to have the internal CPU replaced password password passwords 5.3 Presettings and BF Connections 5.3.1 Selecting BF cable and impedance...
  • Page 11 PTRL NV/3 & RXRL NV/3 Input board with impedance jumpers. mixer RF, BF and receiver control I/O connectors User Manual Rev. 1.0- 29/11/05 7 / 52...
  • Page 12 PTRL NV/3 & RXRL NV/3 Detail of receiver mainboard with setup jumpers 5.3.2 Preemphasis 8 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 13 PTRL NV/3 & RXRL NV/3 5.3.3 Setting the transmitter BF input level User Manual Rev. 1.0- 29/11/05 9 / 52...
  • Page 14 PTRL NV/3 & RXRL NV/3 10 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 15 PTRL NV/3 & RXRL NV/3 5.3.4 Setting the receiver BF input level 5.3.5 Functionality of Remote-Control 5.3.6 RS232 port User Manual Rev. 1.0- 29/11/05 11 / 52...
  • Page 16 PTRL NV/3 & RXRL NV/3 5.3.7 Remote-control parallel port modulation presence normally open (NO) normally closed (NC) 12 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 17: Modes Of Operation

    PTRL NV/3 & RXRL NV/3 5.4 Modes of Operation 5.4.1 Mono transmission from mono audio source on main mono channel 5.4.2 Mono transmission from stereo audio source through internal coder (option) 5.4.3 Mono or stereo transmission from external coder or other radio link...
  • Page 18 PTRL NV/3 & RXRL NV/3 5.4.4 Stereo transmission from an audio signal through internal stereo coder (option) 5.4.5 Operation with RDS and SCA coders 5.4.6 Final modulation adjustment 14 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 19 PTRL NV/3 & RXRL NV/3 Factory setting dictated by law requirements for Italy is 80kHz (+0.5dB). 5.4.7 Pilot tone control in stereo transmission 5.4.8 Transmission at low power levels 5.4.9 Radio link RX connection to next transmitter User Manual Rev. 1.0- 29/11/05...
  • Page 20 PTRL NV/3 & RXRL NV/3 5.4.10 Checking incoming field and noise 5.4.11 "Muting" operation and setting and field relay 16 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 21: Operation On Batteries Or Dc Power Supply

    PTRL NV/3 & RXRL NV/3 5.4.12 System layout 5.5 Operation on Batteries or DC Power Supply If voltages in excess of 28Vdc are applied to battery terminals or current draw at the terminals exceeds the power supply for battery charging, severe damage to the equipment or its power supply unit may result.
  • Page 22 PTRL NV/3 & RXRL NV/3 5.5.1 Notes on the batteries and their connection the hydrogen generated by the hydrolysis process may create an explosive atmosphere Ensure the batteries can supply the system for the maximum expected duration of mains failure events. Do not let the batteries run flat or permanent damage may result.
  • Page 23 PTRL NV/3 & RXRL NV/3 5.5.3 Back-up and charging time PTRL NV/3 RXRL NV/3 PTRL NV/3 + EQUIPMENT RXRL NV/3 MODEL Typ. absorption 1.95 0.50 2.45 Batteries backup time 20 A/h [hours] Batteries backup time 40 A/h 20.5 16.3 [hours]...

  • Page 24: Service And Maintenance

    PTRL NV/3 & RXRL NV/3 5.6 Service and Maintenance Do not alter the internal calibration settings or you will alter the performance data stated for the transmitter. 20 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 25: External Description

    PTRL NV/3 & RXRL NV/3 6 External Description 6.1 Front Panel PTRL NV/3 RXRL NV/3 User Manual Rev. 1.0- 29/11/05 21 / 52...

  • Page 26: Rear Panel

    PTRL NV/3 & RXRL NV/3 6.2 Rear Panel 22 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 27 PTRL NV/3 & RXRL NV/3 User Manual Rev. 1.0- 29/11/05 23 / 52...

  • Page 28: Technical Specifications

    PTRL NV/3 & RXRL NV/3 7. Technical Specifications - Factory preset frequency ranges: 1429÷1433MHz 1510÷1530MHz - Modulation distortion (100% dev.): 1660÷1670MHz 2367.5÷2372.5MHz @ 1 kHz 2440÷2.450MHz 2468.1÷2483.3MHz mono <0.1% 0.03% typ. Other sub-ranges on request stereo, 1ch <0.30% 0.20% typ.

  • Page 29: Rxrl Nv/3 Receiver

    PTRL NV/3 & RXRL NV/3 - Modulation distortion, 30÷15000 Hz: <0.02% @ 75kHz dev. - I/O lines: RF disable, RF power, On-the-Air, Alarm, - Stereo crosstalk: >50 dB (100÷5000 Hz) RS232 control and monitoring >45 dB (30÷15000 Hz) - Mains absorption:...

  • Page 30: Operating Principles

    PTRL NV/3 & RXRL NV/3 8. Operating principles 8.1 Description of transmitter componentry 8.1.1 Control and display CPU board AN0/ANA_MUX 26 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 31 PTRL NV/3 & RXRL NV/3 8.1.2 BF and RF Main Control Board User Manual Rev. 1.0- 29/11/05 27 / 52...
  • Page 32 PTRL NV/3 & RXRL NV/3 8.1.3 Stereo Coder Module 28 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 33 PTRL NV/3 & RXRL NV/3 8.1.4 Modulated Oscillator 8.1.5 Power Amplifier, Circulator and Output Filter User Manual Rev. 1.0- 29/11/05 29 / 52...
  • Page 34 PTRL NV/3 & RXRL NV/3 8.1.6 Power Supply Section 30 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 35: Description Of Receiver Componentry

    PTRL NV/3 & RXRL NV/3 8.2 Description of receiver componentry 8.2.1 LNA, FI & FM Demodulator board User Manual Rev. 1.0- 29/11/05 31 / 52...
  • Page 36 PTRL NV/3 & RXRL NV/3 8.2.2 Mainboard, Interface, Control and BF Output Board 32 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 37 PTRL NV/3 & RXRL NV/3 8.2.3 RF Input Filter 0,00 -10,00 à  -20,00 -30,00 à  à † † -40,00 ‚ -50,00 -60,00 -70,00 -80,00 1.465 1.545 1.625 1.705 1.785 1.86 …r„ˆr“hÃÃHC“à Response of standard internal filters for the 1660 ÷ 1670 MHz and 2440 ÷ 2483 MHz ranges.
  • Page 38 PTRL NV/3 & RXRL NV/3 8.2.4 Stereo Decoder 34 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 39: Fm Radio Link Firmware

    PTRL NV/3 & RXRL NV/3 9. FM Radio Link Firmware 9.1 Foreword 9.2 Setting the Passwords User Manual Rev. 1.0- 29/11/05 35 / 52...
  • Page 40 PTRL NV/3 & RXRL NV/3 Level 1: Lowest security level (where high security is required) Level 2: Service level Level 3: Highest security level and factory settings small group 36 / 52 Rev. 1.0 - 29/11/05 User Manual...

  • Page 41: Default Passwords

    PTRL NV/3 & RXRL NV/3 confirmed, this password may not be retrieved must be changed immediately When this is the case, the unit will have to be returned to the factory to have it reprogrammed or to have the internal CPU replaced before you can regain access to the transmitter.
  • Page 42 PTRL NV/3 & RXRL NV/3 38 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 43 PTRL NV/3 & RXRL NV/3 TX15 S/W - ver.1.XX ENTER PASSWORD STEREO ENCODER: YES CODE 23 5$7,21 6 783 6&$3 6&$3 RVR ELETTRONICA SPA SIEL - MILANO - ITALY PTRL NV/3 - rev.1.XX TX TYPE - Vers. 1.XX DIR POWER 5.0W...

  • Page 44: Transmitter

    PTRL NV/3 & RXRL NV/3 9.5 Transmitter 9.5.1 Start-up screen STEREO ENCODER: YES TX15 SW rev. 1.XX 9.5.2 Screen #00: Default message RVR ELETTRONICA SPA PTRL NV/3 - rev.1.XX NORTH-WEST RADIO PTRL NV/3 - rev.1.XX 40 / 52 Rev. 1.0 - 29/11/05...
  • Page 45 PTRL NV/3 & RXRL NV/3 9.5.3 Screen #20: Initial password ENTER PASSWORD ..9.5.4 Quadro #01: Scelta menù Operativo o di Setup SETUP OPERATION User Manual Rev. 1.0- 29/11/05 41 / 52...
  • Page 46 PTRL NV/3 & RXRL NV/3 9.5.5 Screen #02: Forward and reflected power Power: 4.0 W Refl Power: 0.0 W 9.5.6 Screen #03: Multiplex signal level (Output modulation) 75.0kHz + 0.0dB ############# O| 9.5.7 Screen #04: Right and left channel levels in dB LEFT level - 3.0dB...
  • Page 47 PTRL NV/3 & RXRL NV/3 9.5.9 Screen #06: RDS or SCA auxiliary signal level and modulation 2.0kHz -11.2dB #########O 9.5.10 Screen #07: RH, LH auxiliary signal levels and total modulation in -11.2 -3.0 -4.5 +0.0 9.5.11 Menu #09: Internal temperature INTERNAL TEMPERATURE +30°C...

  • Page 48: Transmitter Setup Menu

    PTRL NV/3 & RXRL NV/3 9.5.12 Quadro #10: Internal voltages Vbat +27.8V +12.5V -12.4V 9.5.13 Screen #11: Time counter ELAPSED TIME 000356 HOURS 9.6 Transmitter Setup menu 44 / 52 Rev. 1.0 - 29/11/05 User Manual...
  • Page 49 PTRL NV/3 & RXRL NV/3 9.6.1 Screen #22: Transmission frequency setting FREQUENCY SETUP 2470.00 MHz 9.6.2 Screen #23: Output power setting RF POWER SETUP [W] Set: Out: 9.6.3 Screen #24: BF input level setting MPX 75.0kHz + 0.0dB Nom.input = + 6.0dBm User Manual Rev.
  • Page 50 PTRL NV/3 & RXRL NV/3 9.6.4 Screen #25: Auxiliary input channel level setting 2.0kHz -11.5dB Nom.input = + 0.0dBm 9.6.5 Screen #26: Limiter setting MPX limiter + 7.1dB 9.6.6 Screen #27: Setting transmission mode and preemphasis MODE/PREEMPH. SETUP MODE STEREO PR=50us 46 / 52 Rev.
  • Page 51 PTRL NV/3 & RXRL NV/3 9.6.7 Screen #28: Password management PASSWORD LEVEL X code=**** status=OFF CONFIRM PASSWORD ..User Manual Rev. 1.0- 29/11/05 47 / 52...

  • Page 52: Menù Di Fabbrica

    PTRL NV/3 & RXRL NV/3 9.7 Factory Menu 9.7.1 Screen #40: Model and frequency range selection EQUIPMENT MODEL SET SHF STL Tx 2468-2484 9.8 Receiver 9.8.1 Screen #02: Operating frequency and tuning FREQUENCY 2470.00MHz TUNING +1.2kHz 48 / 52 Rev. 1.0 - 29/11/05...
  • Page 53 PTRL NV/3 & RXRL NV/3 9.8.2 Screen #03: Incoming field and muting FIELD -58dBm MUTING 9.8.3 Screen #04: Output Multiplex signal level 75.0kHz + 0.0dB ##############O| 9.8.4 Screens #05 and #06: Left and right channel levels in dB and analogue bar LEFT level - 3.0dB...

  • Page 54: Receiver Setup Menu

    PTRL NV/3 & RXRL NV/3 9.9 Receiver Setup menu 9.9.1 Screen #23: BF output level setting LF out lev. + 2.5dBm Nom. level: + 6.0dBm 9.9.2 Screen #24: Useful Field level setting and Muting MUTING SETUP level:-75dBm / OFF 9.9.3 Screens #25 and #26: Deemphasis setting DEEMPHASIS TIME CST.

  • Page 55: Ensemble View

    PTRL NV/3 & RXRL NV/3 10. Ensemble View 10.1 PTRL NV/3 User Manual Rev. 1.0- 29/11/05 51 / 52...

  • Page 56: Rxrl

    PTRL NV/3 & RXRL NV/3 10.2 RXRL NV/3 52 / 52 Rev. 1.0 - 29/11/05 User Manual...
