Specifications
Input Voltage: 12-24 VDC
Current:
Switch 1 (White): 0.38A @ 12 VDC Nominal
Switch 2 (Blue): 1.08A @ 12 VDC Nominal
Power:
Switch 1 (White): 4.89W @ 12 VDC Nominal
Switch 2 (Blue): 13.77W @ 12 VDC Nominal
Wiring:
2-20 AWG wires - Red (Positive +), Black (Ground -)
Fuse:
2A slow blow fuse (user supplied)
3-position switch - Switch 1 (White), Off, Switch 2 (Blue)
Switch:
Installation and Mounting
Step 1. Install grommet into bracket.
Step 2. Install bracket onto back of dome light using supplied hardware.

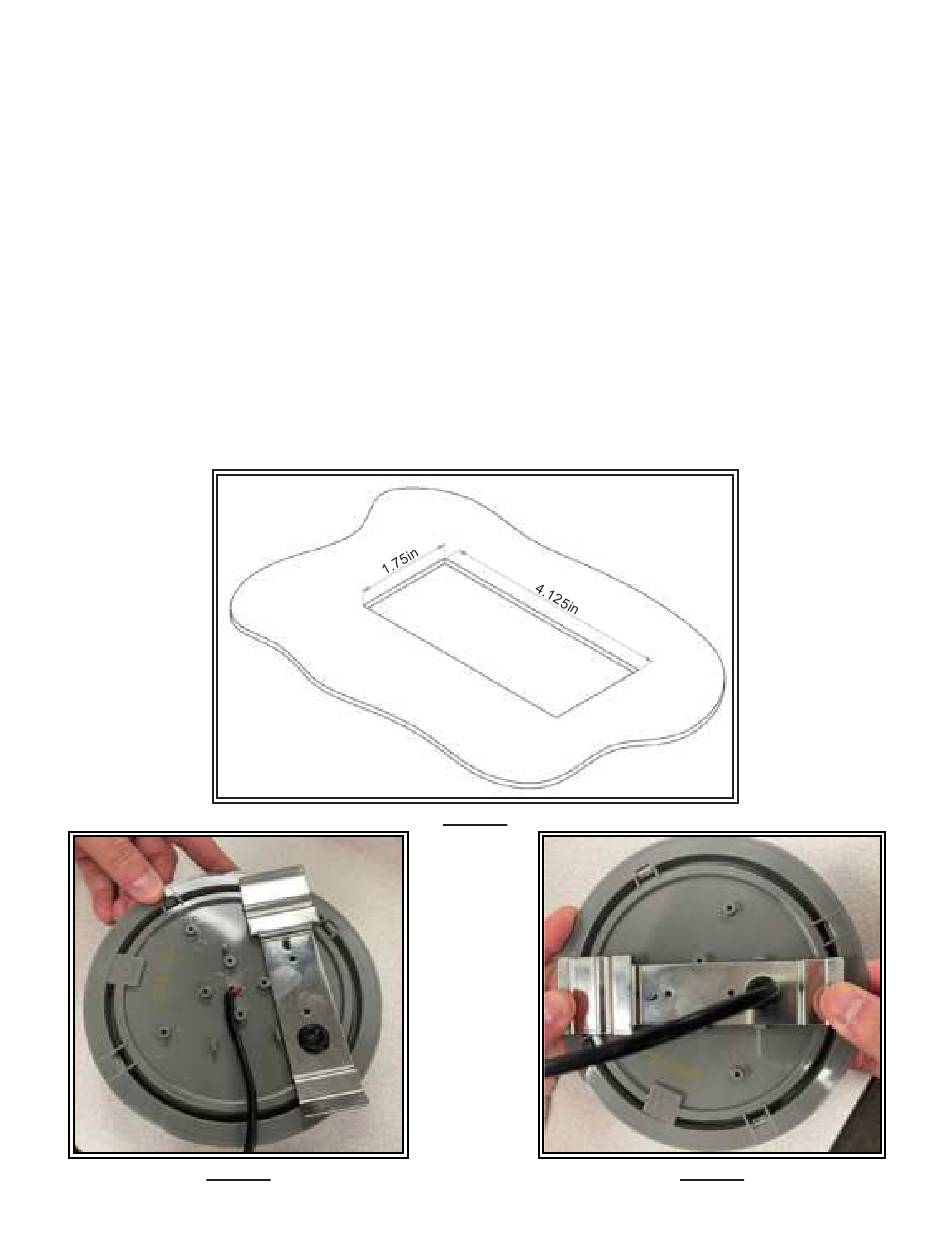

Step 3. Cut rectangular hole in headliner (4.125"x1.75"). See Figure 1. Note: carefully route wiring under bracket to prevent damage.
See Figure 2 and Figure 3 for correct orientation of the bracket.
Step 4. Connect electrical connections.
Step 5. Slip end of bracket opposite wire exit into hole in headliner. Slide until headliner bottoms out on bracket and insert other end of
bracket over headliner and slide back to center.
