Pump inlet
(inlet filter
underneath)
Accessory
mounting
screws
Front view
Introduction
Description

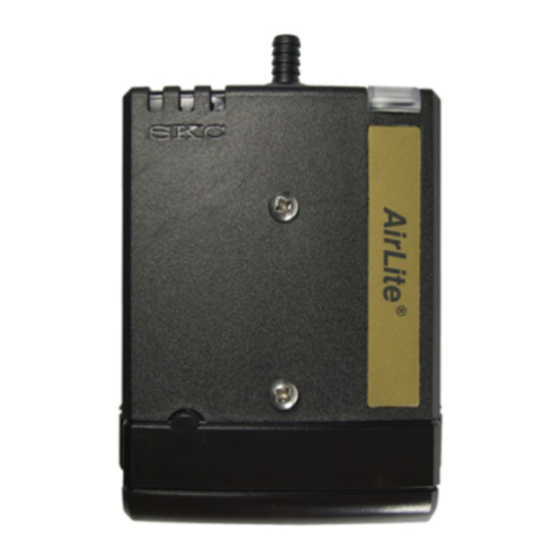

The AirLite Sample Pump with Timer (Figure 1) provides 5 to 3000 ml/min flows and is suitable for abatement, indoor air sampling,
and emergency response in non-hazardous locations.
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact
SKC at 800-752-8472 (U.S. only) or 724-941-9701.
If You Ordered Cat. No.
Your Package Should Contain
110-100-T
AirLite Sample Pump with Timer only, with three AA alkaline batteries and screwdriver set
110-100-TK5
High Flow Sample Pump Kit includes 5 pumps as described above and filter cassette holders, in a Pelican case
High/Low Flow Sample Pump Kit includes 5 pumps as described above, filter cassette holders, All-in-One adjustable
110-100-TK5D
tube holders, and Type A protective tube covers, in a Pelican case
Required Equipment
1/4-inch ID tubing
Low flow accessories if sampling at 5 to 500 ml/min. See Accessories.
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: 724-941-9701 • www.skcinc.com
Battery compartment door
Protective
control cover
(raised)
Belt clip (back of pump)
Battery compartment

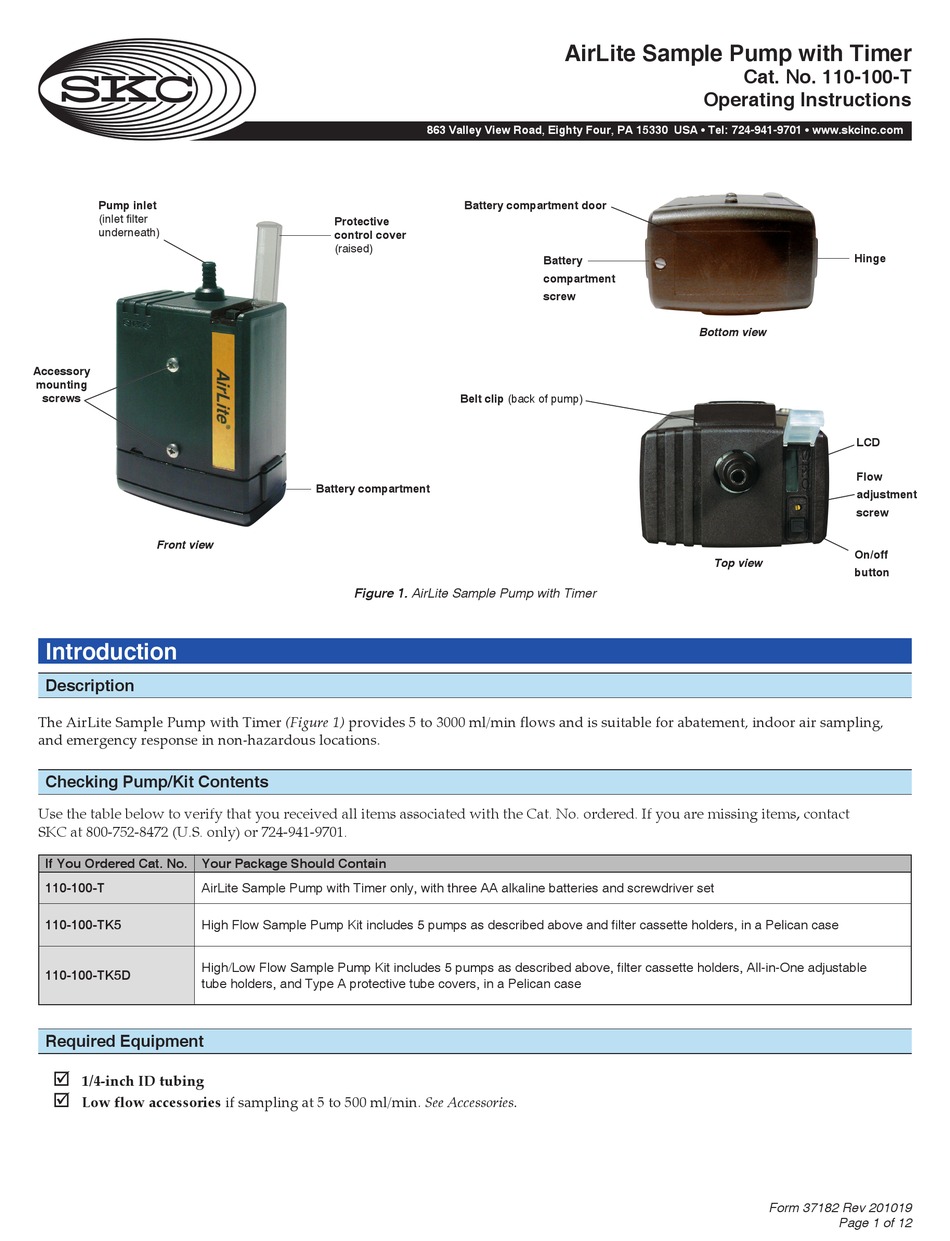

Figure 1. AirLite Sample Pump with Timer
AirLite Sample Pump with Timer
Operating Instructions
Battery
compartment
screw
Bottom view
Top view
Cat. No. 110-100-T
Hinge
LCD
Flow
adjustment
screw
On/off
button
Form 37182 Rev 201019
Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKC AirLite 110-100-T
Summary of Contents for SKC AirLite 110-100-T
- Page 1 Checking Pump/Kit Contents Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact SKC at 800-752-8472 (U.S. only) or 724-941-9701. If You Ordered Cat. No. Your Package Should Contain...
-
Page 2: Getting Started
Getting Started Insert/Replace the Batteries The AirLite with Timer is powered by three standard AA alkaline batteries located in a compartment on the bottom of the pump (Figure 1). To insert new or replace existing batteries: Use a slotted screwdriver to loosen the screw on the bottom of the case (Figure 1). Open and remove the compartment door. -
Page 3: Operation
Operation High Flow Applications (1000 to 3000 ml/min) Set/Calibrate Flow Rate Do not operate pump in hazardous or explosive locations. AirLite with Timer is designed for applications that do not require intrinsic safety. • Allow pump to equilibrate after moving it from one temperature extreme to another. Turn on the pump using the on/off button (Figure 1) and run for 5 minutes before calibrating. - Page 4 Set Up/Sample • Allow pump to equilibrate after moving it from one temperature extreme to another. • Protect sample pump from weather when sampling outdoors. • Do not operate the pump in hazardous or explosive locations. AirLite with Timer is designed for applications that do not require intrinsic safety.
- Page 5 Low Flow Applications (5 to 500 ml/min) • Single-tube sampling requires the All-in-One Adjustable Tube Holder; see the operating instructions for the All-in-One for details on its operation. • Multiple-tube sampling requires a Constant Pressure Controller (CPC) and a Dual, Tri, or Quad Adjustable Low Flow Tube Holder accessory; see the operating instructions for the CPC and Adjustable Low Flow Tube Holder for details on their operation.
- Page 6 Set Up/Sample with Single Tube Do not operate AirLite with Timer in hazardous or explosive locations. Pump is designed for applications that do not require intrinsic safety. • For maximum run time insert new batteries in pump before each sampling period. If using rechargeable AA 1.2-volt NiMH batteries, expect approximately half the run time stated for disposable batteries.
- Page 7 Using a CPC and Dual, Tri, or Quad Adjustable Low Flow Tube Holder (Figure 3) Set/Calibrate Flow Rate for Multiple Tubes Flow adjust screws Top view of flow adjust screws Clothing clip Anti-tamper cover Rubber sleeve Low flow holder outlet Sorbent sample tube Protective cover Figure 3.
- Page 8 Tube holder outlet CPC inlet (marked “To Sample”) Pump Quad tube holder inlet Connect CPC to pump inlet, tube holder to CPC, and tube inlet to calibrator. Suction port chek-mate Calibrator Flow adjust screws Figure 4. Calibration Train with Quad Adjustable Low Flow Tube Holder Using a small screwdriver, loosen and turn the brass flow adjust screw (see above right) directly beneath the port holding the first active representative tube to be calibrated (clockwise to increase,...
-
Page 9: Maintenance
Compare the pre and post-sample flow rates. Note in sampling documentation if the values differ by more than ± 5%. Maintenance See Insert/Replace the Batteries. Pump Service Pumps under warranty should be sent to SKC Inc. for servicing. See Limited Warranty and Return Policy. Form 37182 Rev 201019 Page 9 of 12... -
Page 10: Accessories/Replacement Parts
SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to http://www.skcinc.com/warranty. -
Page 11: Performance Profile
Appendix Performance Profile Flow Range 1000 to 3000 ml/min (5 to 500 ml/min requires low flow accessories. See Accessories.) Flow Control Patented* system holds constant flow to ± 5% of set-point Compensation Range 1000 ml/min at 30 inches water back pressure (for a minimum of 8-hour 2000 ml/min at 20 inches water back pressure operation) - Page 12 Table 1. Pump Run Time in Hours with Alkaline Batteries • To prevent corrosion of battery terminals, remove batteries when AirLite with Timer will not be used for an extended time. • Increases in back pressure in sampling condition due to buildup on filter can decrease battery life. •...
