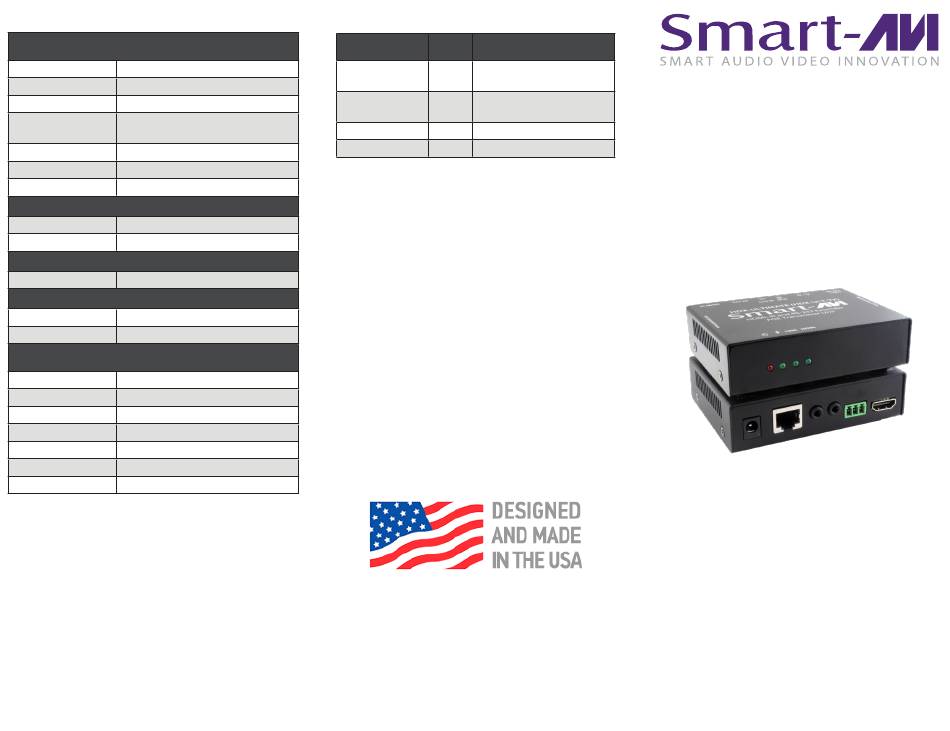

SMART-AVI HDX-ULT Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format HDMI 1.3 and HDCP compliant
Input Interface (TX) (1) HDMI 19-pin (female)
Output Interface (RX) (1) HDMI 19-pin (female)
480p, 720p, 1080i,
HDTV Resolutions
1080p/60Hz/48bit, 4K/30Hz
Audio Format HDMI Digital Audio
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
IR
Signal Type 38 KHz
Interface 3.5 mm Jack Socket (Female)
RS-232
Interface 3-pin terminal block
SYSTEM
Input Interface (TX) (1) RJ-45
Output Interface (RX) (1) RJ-45
OTHER
Power External 100-240 VAC/12V3A @30W
Dimensions 5"W x 1.125"H x 4.125"D
Weight 0.6 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI, IR, POE CAT5e/6
HDX-ULT-TX 1
Transmitter
HDMI, IR, POE CAT5e/6
HDX-ULT-RX 1
Receiver
Power Supply 2 PS12V3A
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
HDX-ULT
4K-ready PoE Cat5e/6
HDBaseT HD Extender
POE CAT5E/6 EXTENDER
FOR HDMI, RS-232, AND
IR CONTROL WATCH AND
COMMAND 1080P/4K HDTV
FROM 450 FT AWAY
Quick Start Guide
