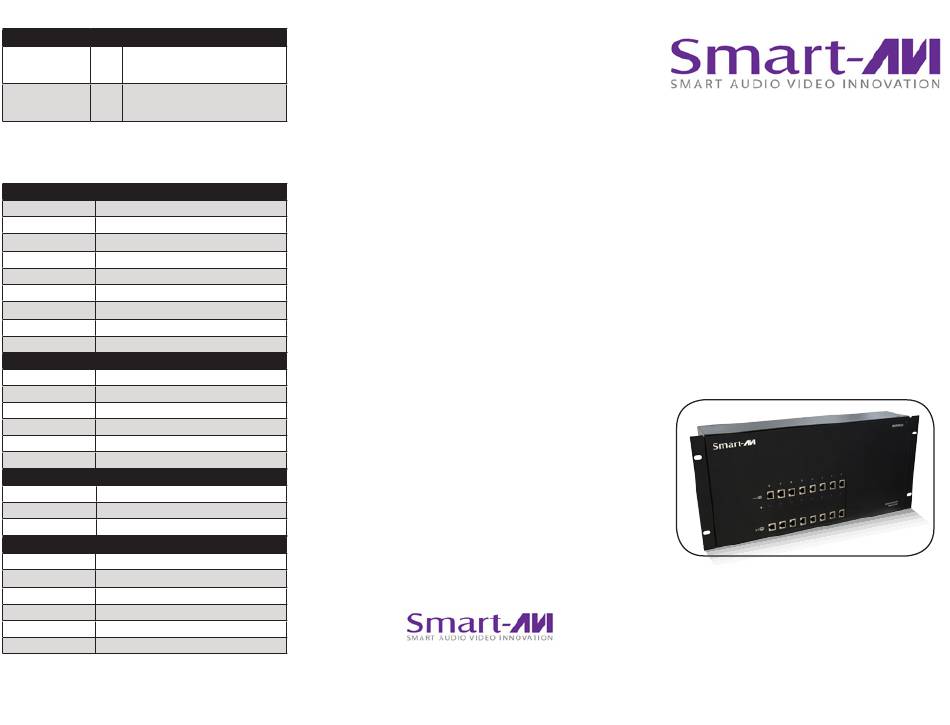

SMART-AVI RK-DVX2U-A-RX4S Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
RK-DVX2U-A-TX4S Powered Rack/Chassis with DVI/Audio/
USB CAT6 Transmitter, 4 Card Package. In-
cludes: [RK-DVX2U-TX4 and CCPWR06]
RK-DVX2U-A-TX8S Powered Rack/Chassis with DVI/Audio/
USB CAT6 Transmitter, 8 Card Package. In-
cludes: [RK-DVX2U-A-TX8 and CCPWR06]
Technical Specifications
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) 8 x (2) DVI-D 29-pin female
Output Interface (RX) (2) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
USB
Signal Type USB 1.1 (Fully Transparent)
Input Interface (TX) 8 x (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power Internal 110-240 VAC
Dimensions 17 in W x 8.5 in H x 3.25 in D
Weight 10 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
*specifications shown are for the 8-Port option
© Copyright 2012 SmartAVI, All Rights Reserved
The information contained in this document is subject to change
without notice. SmartAVI makes no warranty of any kind with regard
to this material, including but not limited to, implied warranties
of merchantability and fitness for any particular purpose.
*
SmartAVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from SmartAVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
NOTICE
Installation
Manual

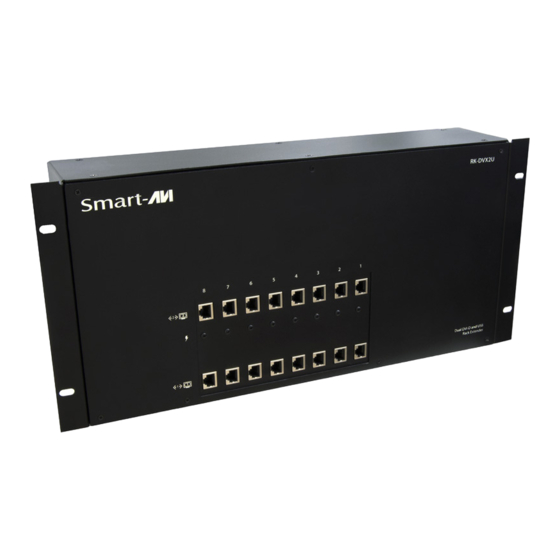

RK-D VX2U-A
8-Port Dual DVI-D, Audio and USB 1.1
Extender over STP
8-Port Dual DVI-D, Audio and USB
1.1 Extender up to 225 feet
over STP Cable
www.smartavi.com
