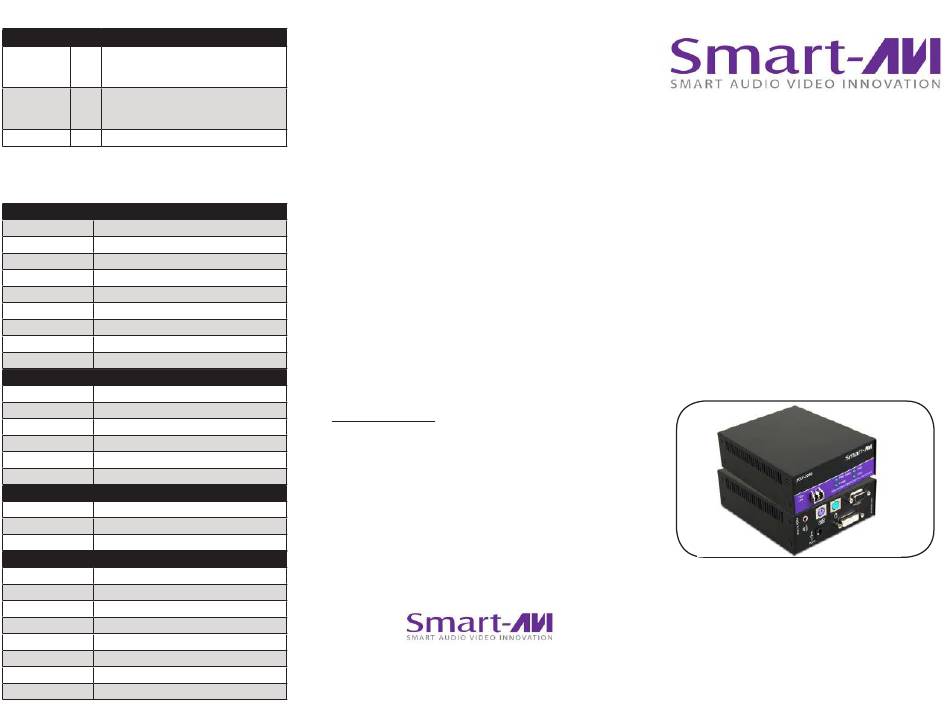

SMART-AVI FDX-2000 Quick Start Manual

What's in the Box?
PART NO. QTY DESCRIPTION
FDX-TX2000 1 FDX-2000 Transmitter Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
FDX-RX2000 1 FDX-2000 Receiver Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
Power Supply 2 PS5VDC4A

Technical Specifications

VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (1) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
PS/2
Signaling PS/2 Keyboard and Mouse ONLY
Input Interface (2) PS/2 Female
Output Interface (2) PS/2 Female
OTHER
Power External 100-240 VAC/5VDC4A
Dimensions 4.5"W x 5.375"H x 1.75"D
Weight 1 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
RS-232 Data up to 115,000 bps
© Copyright 2012 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
SmartAVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from SmartAVI.
For more information, visit www.smartavi.com.

Why Fiber Optic?

SmartAVI has created a full line of fiber optic extender
products, understanding that this technology is superior to
traditional cabling.
Fiber optic cables are:
• capable of transmitting over very long distances with
no signal loss.
• immune to electromagnetic interference. In situations
where there is considerable interference, fiber optic
cabling is the only solution.
• much more secure because they cannot be easily
tapped. For this reason, military and law enforcement
agencies use fiber optic cables for the transmission of
sensitive data.
• relatively inexpensive and small enough to be routed
through small spaces.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Quick Start Guide
FDX- 2 000
DVI-D Video, Stereo Audio, PS/2
Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable

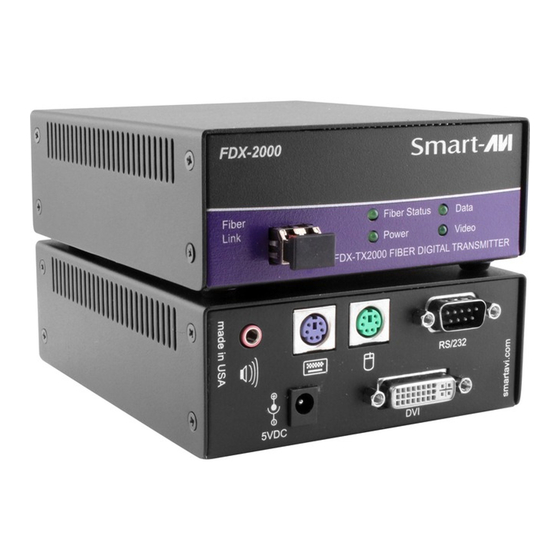

The FDX-2000 consists of a transmitter
and receiver that extend KVM, DVI-D,
audio and RS-232 signals. It is a
professional quality KVM capable of
extending signals up to 1,400 feet over a
single multimode fiber optic cable.
