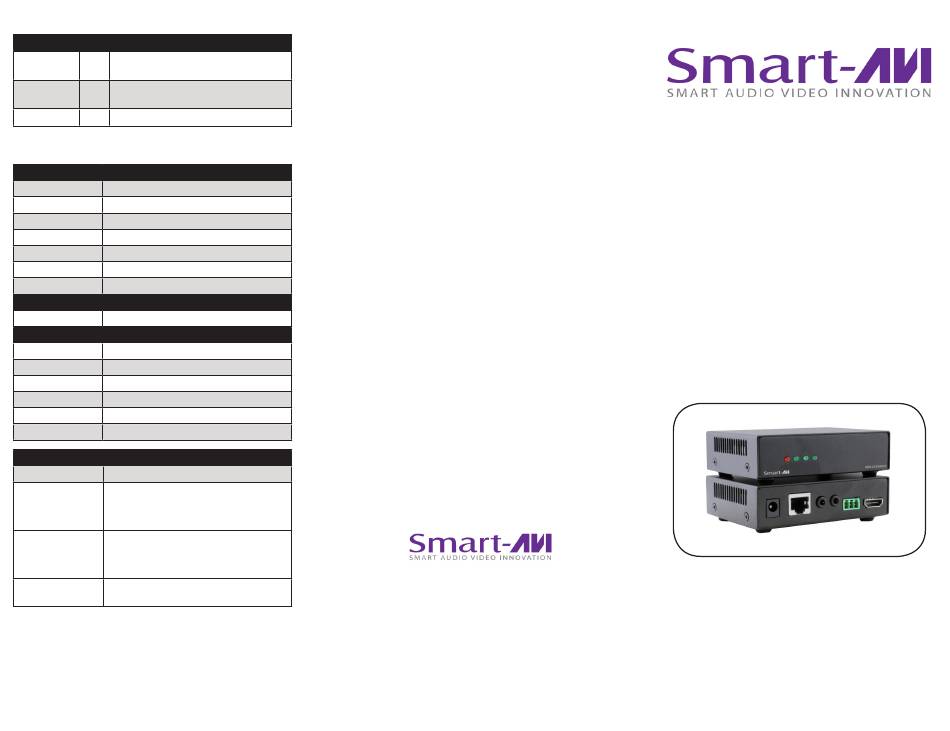

SMART-AVI HDX-ULTIMATE Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
HDX-ULT-TX 1 HDX-Ultimate Transmitter Unit - HDMI
Point to Point Cat5e/6 Extender
HDX-ULT-RX 1 HDX-Ultimate Receiver Unit - HDMI Point
to Point Cat5e/6 Extender
Power Supply 2 PS12VDC2A

Technical Specifications

VIDEO
Format HDMI 1.3 and HDCP Compliant
HDTV Resolutions Up to 4K (3840x2160 @ 30Hz)
Audio HDMI Digital Audio
Input Interference RJ-45 for Cat5e/6
Output Interference HDMI, HDBT, IR, RS-232
Input Cable Length Up to 450 ft over Cat5e/6
Output Cable Length Up to 20 ft over HDMI
IR
Signal Type 38 KHz
OTHER
Power External 100-240 VAC/5V-12V@20W
Dimensions 5"W x 1.125"H x 4.125"D
Weight 0.6 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (-5-70 °C)
Operating Humidity 5-95%

ORDER INFO

Part No. Description
HDX-ULT-S HDMI, IR, and RS-232 PoE Extender
over a Single CAT5e/6 Cable.
Includes: [HDX-ULT-TX, HDX-ULT-RX, and
PS12VD2A-WLLMNT]
HDX-ULT-TXS HDX-Ultimate Transmitter: HDMI and IR
over CAT5e/6 Transmitter with PoE support,
up to 450ft.
Includes: [HDX-ULT-TX and PS12VD2A-WLLMNT]
HDX-ULT-RXS HDMI, IR, and RS-232 PoE Receiver.
Includes: [HDX-ULT-RX and PS12VD2A-WLLMNT]
© Copyright 2016 Smart-AVI, All Rights Reserved
NOTICE
T h e i n fo r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t i s
subject to change without notice. SmartAVI
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
SmartAVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from SmartAVI.
For more information, visit www.smartavi.com.
Tel: 800.AVI.2131 • 818.503.6200
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
WWW.SMARTAVI.COM
Installation
Manual
makes
HDX-ULTIMATE
4K-ready PoE Cat5e/6 HDBaseT HD

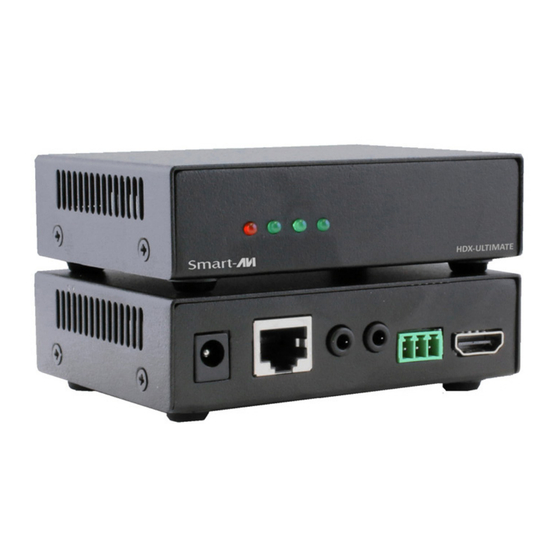

The HDX-Ultimate includes a transmitter
(TX) and reciever (RX) that extends 4K
HDMI signals up to 450 feet away.
*RS-232 Optional
www.smartavi.com
Extender
