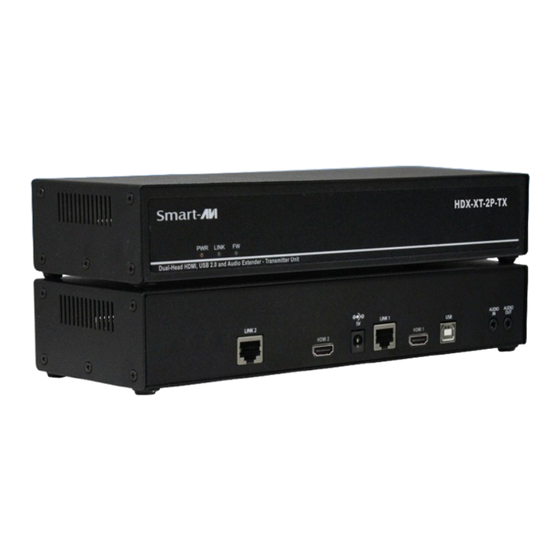

SMART-AVI HDX-XT Series User Manual

SMART-AVI HDX-XT Series User Manual

Advanced hdmi, usb2.0 & audio extender

Advertisement

Quick Links

HDX-XT
Advanced HDMI, USB2.0 & AUDIO Extender
USER MANUAL
HDX-XT-2P
HDX-XT-4P
Dual Head HDMI, USB 2.0 and Audio KVM CAT5/6 Extender
Quad Head HDMI, USB 2.0 and Audio KVM CAT5/6 Extender
Designed and Manufactured in the USA
1-800-284-2131
www.smartavi.com
SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDX-XT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMART-AVI HDX-XT Series

  • Page 1 HDX-XT SERIES Advanced HDMI, USB2.0 & AUDIO Extender USER MANUAL HDX-XT-2P Dual Head HDMI, USB 2.0 and Audio KVM CAT5/6 Extender HDX-XT-4P Quad Head HDMI, USB 2.0 and Audio KVM CAT5/6 Extender Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
  • Page 2: Table Of Contents

    OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?_________________________________________________________________________ FRONT AND BACK___________________________________________________________________________ INSTALLATION_______________________________________________________________________________ LED’S BEHAVIOUR___________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ Advanced Dual/Quad HDMI Extender with Audio and USB 2.0 Support...
  • Page 3: Technical Specifications

    Technical Specifications VIDEO Format HDMI2.0 Maximum Pixel Clock Single-link 340 MHz (10.2 Gbps) HDX-XT-2P (2) HDMI (19-pin female) Input Interface (TX) HDX-XT-4P (4) HDMI (19-pin female) HDX-XT-2P (2) HDMI (19-pin female) Output Interface (RX) HDX-XT-4P (4) HDMI (19-pin female) Resolution 3840 x 2160 @ 30 Hz 5 Volts [peak-to-peak, TTL] Input Equalization...
  • Page 4: What's In The Box

    What’s in the box? PART NO. Q-TY DESCRIPTION HDX-XT Unit Dual/Quad Head HDMI, USB 2.0, Audio, CAT5/5e/6 Extender. PS5VD3A-WMT 5V DC, 3A (minimum) power adapter with center-pin positive polarity. User Manual FRONT AND BACK HDX-XT-2P-TX Front HDX-XT-2P-RX Front HDX-XT-2P-TX Back HDX-XT-2P-RX Back HDX-XT-4P-TX Front HDX-XT-4P-RX Front...
  • Page 5 INSTALLATION 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a HDMI cable to connect the HDMI output port from each computer to the corresponding HDMI IN ports of the unit. 3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.
  • Page 6: Installation

    Installation (continued) APPLICATION DIAGRAM HDX-XT-4P The HDX-XT-4P is Quad-Head HDMI 4K/30Hz, USB 2.0, USB 1.1 keyboard-mouse and stereo audio extender, sending signals up to 330 ft (100 m) away over four conventional and inexpensive CAT5/5e/6 cables. HDMI IN HDMI OUT HDMI IN LI N HDMI OUT...
  • Page 7: Led's Behaviour

    Led’s behavior NAME DESCRIPTION Solid red LED when power is connected Link Solid green LED when cat5 is connected Blinking green LED when transferring information between unit and computer Advanced Dual/Quad HDMI Extender with Audio and USB 2.0 Support...
  • Page 8: Troubleshooting

    Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •...
  • Page 9: Limited Warranty Statement

    Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
  • Page 10 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

This manual is also suitable for:

Hdx-xt-2pHdx-xt-4p
